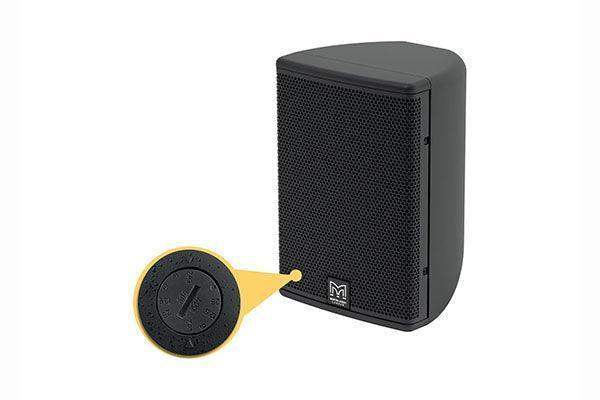

Martin Audio 5" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker with 70/100V Transformer (Black) - CDD5BTX-WR
Martin Audio 5" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker with 70/100V Transformer (Black) - CDD5BTX-WR is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping on Orders Over $250.00
Martin Audio 5" Passive Coaxial Differential Dispersion Outdoo...
The Black CDD5BTX-WR from Martin Audio is a weatherized two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It features a unique, patent-pending 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes and is supplied with a dedicated omni-directional mounting weather resistant bracket.
Features
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant ABS moulded enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
- Supplied with ‘pan and tilt’ weatherised mounting bracket
Applications
- Bars and Restaurants
- Museums and AV spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
- Outdoor Restaurants, Bars, Hotel areas
- Nearfield Systems in Outdoor Stadia
- Transport Hubs
- Concourses and Theme Parks
Specification
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 100Hz-20kHz ± 3dB -10dB @ 70Hz |
| DRIVER | LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER (2) | 100W AES, 400W peak |
| TRANSFORMER SETTINGS | 100V line: 6W, 12.5W, 25W 70V line: 3W, 6W, 12.5W, 25W |
| SENSITIVITY (8) | 90dB |
| MAXIMUM SPL (9) | 110dB continuous, 116dB peak 3W = 95dB, 6W = 98dB, 12.5W =101dB, 25W = 104dB |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 120°-90° horizontal, 80° vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 3 litre, ABS |
| FINISH | Black or white as standard (RAL as cost option) |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 13A push-lock, weatherproof input panel cover with dual cable glands |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 6 x M5 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins |
| WEIGHT | 3.4kg (7.5lbs) |
