JBL NCSMA2120-U-US Commercial Series Mixer/Amplifier

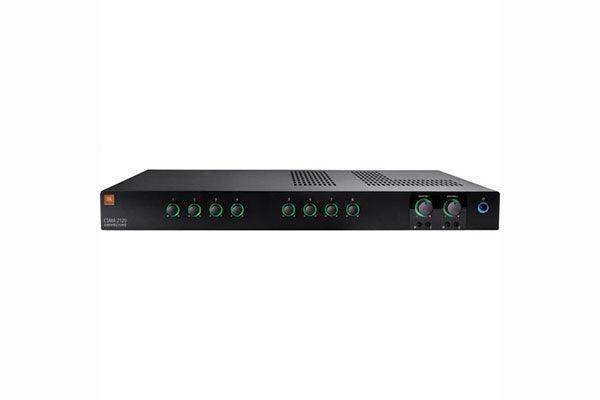

Designed for commercial and industrial use, the CSMA 2120 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 120W of peak power with 15W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.
| Form Factor/Type | Rackmount |
| Number of Channels | 8 Input / 2 Output |
| Power Rating | 4 Ohms / 8 Ohms: 120 W per Channel (1 kHz, 0.5% THD) 15 W per Channel |
| Load Impedance / Voltage | 4 Ohms (Minimum) 70 V (40 Ohms Minimum) 100 V (80 Ohms Minimum) |
| Frequency Response | Amplifier: 20 Hz to 20 kHz ±2 dB (Low-Z) 80 Hz to 15 kHz ±2 dB (70/100 V) Line Output: 20 Hz to 20 kHz ±1 dB |
| Input Sensitivity | Mic: 3 mVrms Line: 775 mVrms RCA: 300 mVrms |
| I/O Impedance | Mic Input: 400 Ohms Line Input: 20 Kilohms (Balanced) RCA Input: 50 Kilohms |
| Output Level | Line Output: 5 Vrms (10-Kilohm Load) |
| Insertion Loss | 1 dB Maximum |
| SNR | > 90 dB |
| THD | < 0.5% (20 Hz to 20 kHz, Main Output) 0.05% (Line Output) |
| Crosstalk | -70 dB (1 kHz) |
| EQ | 2-Band |

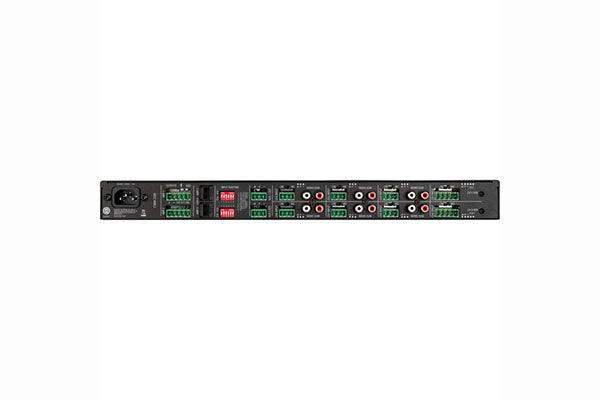

| Audio I/O | 2 x Block 5-Pin Balanced Line/Mic Input 6 x Block 3-Pin Balanced Line/Mic Input 6 x Stereo RCA 5-Pin Unbalanced Summed-Mono Input 2 x Block 3-Pin Balanced Aux Output |
| Other I/O | 2 x RJ45 Remote/Volume |
| Phantom Power | 27 VDC |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC |
| Rackmount Size | 1 RU |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| Dimensions | 17.2 x 1.7 x 11.9" / 436.9 x 43.2 x 302.3 mm |
| Weight | 12.1 lb / 5.5 kg |
