JBL NCSM14-U-US Four Inputs/One Output Commercial Series Mixer

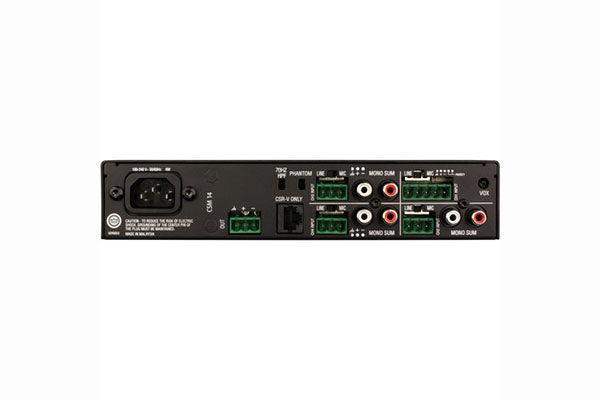

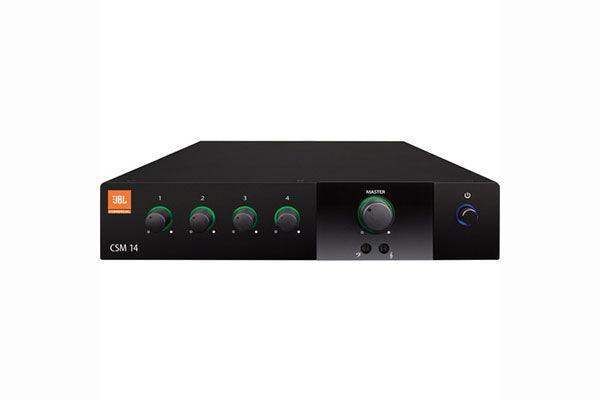

The CSM 14 - Four Inputs/One Output Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs. The chassis features illuminated rings that makes them easier to see and use for the dedicated volume, bass, and treble controls. The back of the mixer features a +27V phantom power switch as well as a 70 Hz HPF switch.
| Form Factor/Type | Tabletop |
| Number of Channels | 4 Input / 1 Output |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| Input Sensitivity | Mic: 3 mVrms Line: 300 mVrms RCA: 300 mVrms |
| I/O Impedance | Mic Input: 400 Ohms Line Input: 20 Kilohms RCA Input: 50 Kilohms |
| Output Level | Line Output: 5 Vrms (10-Kilohm Load) |
| SNR | > 90 dB |
| THD | 0.05% |
| Crosstalk | > 70 dB |
| EQ | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Ducking/Muting | Yes |
| Phantom Power | 27 VDC |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 68 to 185°F / -20 to 85°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| Dimensions | 17.2 x 1.7 x 11.9" / 437.0 x 43.3 x 303.4 mm |
| Weight | 4.3 lb / 2 kg |
