ASHLY MX-206 7x2 Mixer, 6 Mic Inputs, 1 Stereo RCA line input, Stereo Ouput. 48V

Designed to be used by itself or as a supplement to larger mixing consoles, the MX-206 provides superior audio performance in a single rack-space package. Equally at home in either fixed or portable installations, the MX-206 may be used anywhere where additional microphone inputs are needed. Typical applications include live sound reinforcement, broadcast, recording, and film/video production.

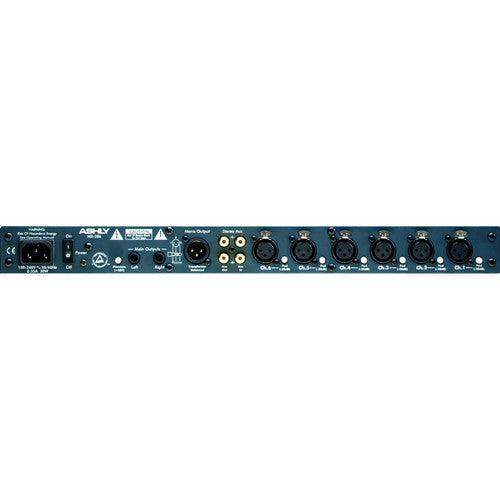

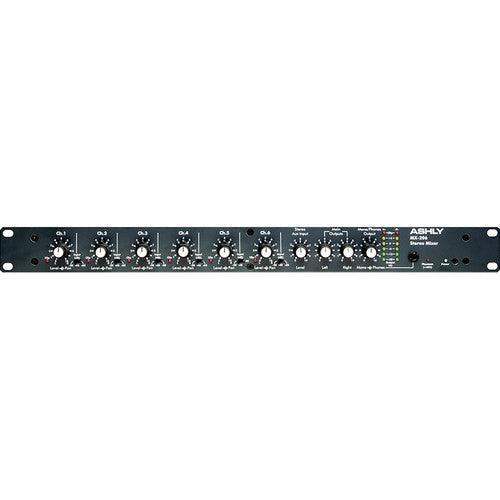

The MX-206 is a rack-mountable six input channel stereo microphone mixer offering up to 84dB of gain for distant mic placements or extremely low-level signals. Ultra low-noise, studio-grade discrete mic preamps are utilized. Each channel has a switchable 20dB pad, a 3-position mic gain switch input level and pan controls, and clip LED indicators, 48V phantom power may be switched in for use with condenser mics. A separate Stereo Line In volume control adjusts line level sources, such as a CD or MP3 player, connected to rear-panel RCA inputs or portable audio source connected to the 3.5mm jack located on the front panel. Since plenty of headroom has been designed into the MX-206, even the loudest signals can be handled without distortion.

Output is monitored via two 5-segment, multi-colored LED meters, along with separate Peak Clip Indicators. The transformer-isolated XLR balanced mono output is capable of driving +24dBu into 600 Ohms, and separate stereo TRS 1/4" outputs may be used either balanced or unbalanced. A Stereo Line Out is available on RCA jacks.

The MX-206 provides superior audio performance in a rugged and durable package. Backed by Ashly's exclusive Five Year Worry-Free Warranty, the MX-206 is designed to provide many years of trouble-free operation.

Features

• Convenient, 3.5mm stereo line in jack on front panel
• for MP3 players and smartphones
• High-gain mic preamps (60dB)
• Transformer isolated +24dBm 600 Ohm
• balanced XLR-mono output
• Stereo line in/out
• Pan control on each channel
• Stereo headphone jack with level control
• 20dB input pad switch
• +48V phantom power
• Universal power supply
• Safety/Compliance: cTUVus, CE, FCC, RoHS

Specs

General Information
Manufacturer	Ashly Audio, Inc
Manufacturer Part Number	MX-206
Manufacturer Website Address	http://www.ashly.com
Brand Name	Ashly
Product Series	MX
Product Model	MX-206
Product Name	MX-206 6-Channel, Stereo Microphone Mixer
Product Type	Audio Mixer
Technical Information
Number of Channels	6
Minimum Frequency Response	20 Hz
Maximum Frequency Response	20 kHz
Interfaces/Ports
Headphone	Yes
Microphone	Yes
XLR In	Yes
XLR Out	Yes
RCA Audio In	Yes
RCA Audio Out	Yes
Power Description
Input Voltage	120 V AC
	230 V AC
Maximum Power Consumption	30 W
Physical Characteristics
Mount Type	Rack Mountable
Miscellaneous
Additional Information	VU Meters: Two 5-segment LED meters, 0VU = +4dBu Peak Indicators Peak: Clip indicator on each input channel and L/R outputs, illuminates 3dB below clipping
Certifications & Standards	cTUVus CE FCC
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	United States
