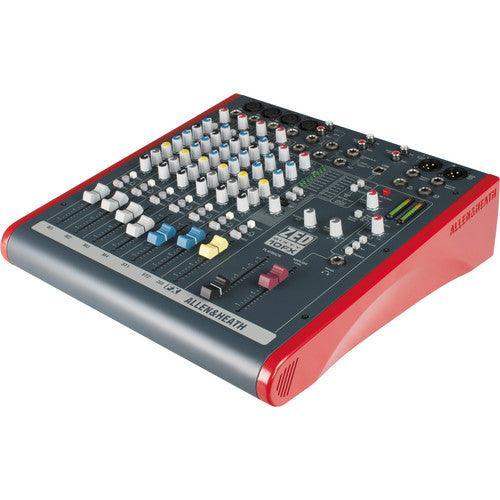

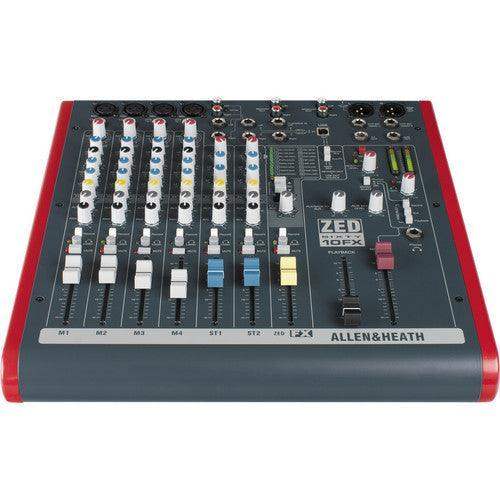

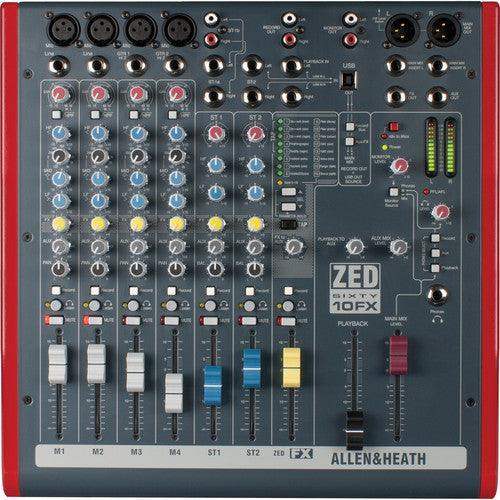

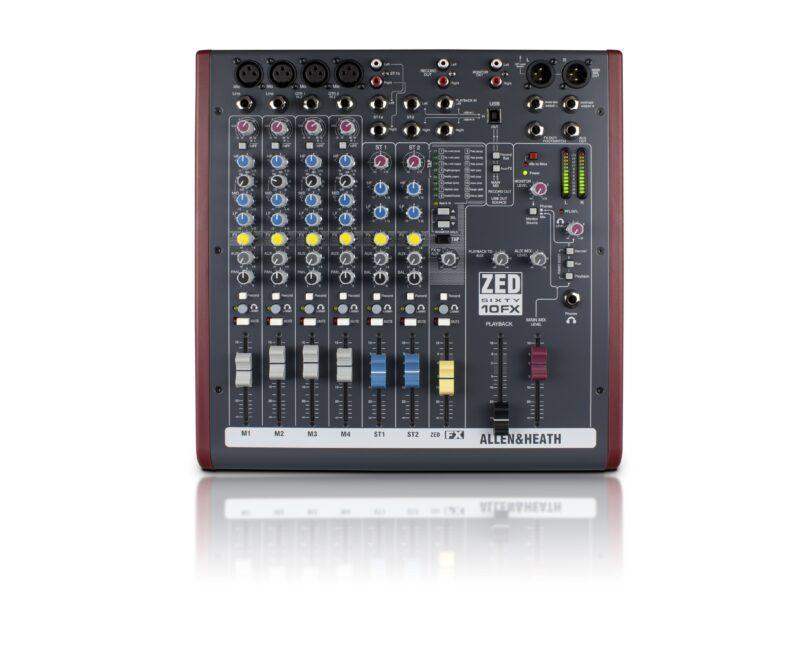

Allen & Heath ZED60-10FX - 6 Channel Mixer with Digital Effects and USB Connectivity

Authorized Dealer

Shipping calculated at checkout.

Allen & Heath | SKU: AH-ZED60-10FX

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The Allen & Heath ZED60-10FX is a small, 6-channel mixer that packs an incredible amount of connectivity along with built-in digital effects. It's a great companion for live mixing, live recording, and multitracking over USB.

The ZED60-10FX features 4 mic/line inputs with 3-band EQ and Phantom Power. Channels 3 and 4 have 1/4" Hi-Z instrument-level inputs for connecting guitars, electric basses, etc. There are 2 additional stereo channels for connecting keyboards or other stereo sources, like a CD player or iPod.

The channel strips of the ZED60-10FX have big functionality for a small format mixer. Each channel features low and high frequency shelving EQ, while the mono channels add a 100Hz high pass filter and an extra band of sweepable midrange. An FX send on each channel controls how much signal is sent to the onboard effects buss, while an Aux send can feed an independent monitor mix. After the panning controls, each channel can be sent or bypassed from the recording buss, post-EQ solo'd with the "Listen" button, or muted. The final stage of each channel strip is a 60mm level fader, providing a tactile mixing experience.

There are 16 digital effects built into the ZED60-10FX, including delays, reverbs, doubler, flanger, and chorus. These same effects algorithms are used on the Allen & Heath flagship digital consoles. Each preset has a parameter adjust control to morph the overall intensity of the effect.

The output section of the ZED60-10FX is perhaps its most versatile element. In addition to the balanced XLR main outputs, there are recording outputs and switchable-source monitor outputs both with stereo RCA connectors. Additionally, a USB output allows you to route the recording buss directly into a computer.

The Allen & Heath ZED60-10FX offers flexibility and functionality that you'd never expect from a 6-channel mixer. With built-in effects, extensive routing options, and high quality components, the ZED60-10FX will always have an extra feature that comes in handy.

ZED60-10FX Features

Multipurpose Mixer for Live Sound and Recording

4 Mic/Line inputs with XLR and TRS Jack Sockets
2 In / 2 Out USB Audio Interface
Onboard Digital FX
2 Stereo Inputs with TRS jack sockets and 1 with RCA
2 Hi-Z Instrument Inputs
XLR main outputs with Insert points
3-band EQ with sweepable mid
Premium 60mm faders

Vertically-Mounted Channel Circuit Boards

The ZED60-10FX is built of individual vertically-mounted channel circuit boards, with each rotary control fixed to the front panel by a metal nut.

Microphone Preamplifiers Based on the MixWizard Series Design

The ZED preamps utilize low-noise discrete transistor circuitry to achieve high gain, low noise, and good linearity.

Hi-Z Guitar Inputs

Channels 3 and 4 include high impedance, discrete, class A, FET inputs for plugging a guitar or other instrument straight in. A 26dB gain boost switch allows instruments with very low output pickups to be used, and the FET does a great job of approximating the sound of tube input circuitry.

Equalization per Channel

Each of the mono inputs feature a switchable high pass filter and a 3-band equalizer with sweepable mids. The stereo channels have low and high frequency shelving EQ.

Onboard Digital Effects

The ZED60-10FX has 16 built-in digital effects, including delays, reverbs, doubler, flanger, and chorus. These same effects algorithms are used on Allen & Heath's flagship digital consoles.

Recording Buss

Each channel has a switchable send to a separate stereo buss specifically for recording to an external source through dual RCA jacks or over USB.

USB Connectivity

CD-quality audio can be sent or received from your Mac or PC via the ZED60-10FX's USB port.

Specs

Number of Analog Input Channels	8 (4 Mono / 2 Stereo)
Number of Mic Preamps	4
Analog Output Channels	1x Stereo Master Output 1x Stereo Control Room/Monitor Output 1x Mono Aux Send Output 1x Mono FX Send Output 1x Stereo Tape/Record Output 1x Stereo Headphone Output
EQ	Input Channels: 3-Band Shelving/Semi-Parametric (Mono Channels) 2-Band Shelving (Stereo Channels)
Built-In Effects	Yes
USB I/O	1x USB-B 1.1 (I/O)
Rack Mountable	No

Mixer

Number of Analog Input Channels	8 (4 Mono / 2 Stereo)
Number of Mic Preamps	4
Analog Output Channels	1x Stereo Master Output 1x Stereo Control Room/Monitor Output 1x Mono Aux Send Output 1x Mono FX Send Output 1x Stereo Tape/Record Output 1x Stereo Headphone Output
Faders & Level Adjustment	2.4" / 60 mm Channel Fader

Signal Processing

EQ	Input Channels: 3-Band Shelving/Semi-Parametric (Mono Channels) 2-Band Shelving (Stereo Channels)
EQ Parameters	High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 120 Hz to 4 kHz (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving)
Filters	Input Channels: High-Pass: 100 Hz, 6 dB/Octave
Built-In Effects	Yes

Digital Audio

Sample Rates	32 / 44.1 / 48 kHz
Bit Depth	16-Bit

Performance

Headroom	Analog: +21 dB USB I/O: +14 dB
Frequency Response	Mic Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain) Line Input to Main Output: 10 Hz to 25 kHz +0.5/-1 dB (Unity Gain) Stereo Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB
Max Input Level	XLR Input: +11 dBu (Mono) 1/4" Line Input: +31 dBu (Mono) 1/4" / RCA Input: +15 dB (Stereo)
Output Level	XLR Main Output: 0 dBu (Nominal) +21 dBu at Max Gain 1/4" Aux/FX Output: 0 dBu (Nominal) +21 dBu at Max Gain Tape/Record/Monitor Output: 0 dBu (Nominal) +21 dBu at Max Gain
EIN	-127 dBu at Max Gain (150-Ohm Input)
Noise Floor	Main Output: -96 dBu (Master Level at Unity, Channel Levels at -∞, 22 Hz to 22 kHz)
THD+N	Mic Input to Main Output: 0.002% at +10 dB Gain (+10 dBu, 1 kHz) Line Input to Main Output: 0.01% at +30 dB Gain (1 kHz) 0.003% at Unity Gain (1 kHz) Stereo Line Input to Main Output: 0.002% at Unity Gain (+10 dBu, 1 kHz)

Connectivity

Analog Inputs	4x XLR 3-Pin Mic Input 2x 1/4" Line Input 2x 1/4" TS Unbalanced Hi-Z Input 2x 1/4" Input (1 Stereo Pair) 1x Stereo RCA Input 2x 1/4" Playback Input (1 Stereo Pair)
Analog Outputs	2x XLR 3-Pin Main Output 1x Stereo RCA Monitor Output 1x Stereo RCA Tape Output 1x 1/4" FX Output 1x 1/4" Aux Output 1x 1/4" TRS Headphone Output
Phantom Power	+48 V, Selectable On/Off
USB I/O	1x USB-B 1.1 (I/O)

Physical

Rack Mountable	No
Dimensions	13.2 x 13.6 x 3.7" / 336 x 346 x 95 mm
Weight	8.4 lb / 3.8 kg

Packaging Info

Package Weight	11 lb
Box Dimensions (LxWxH)	16.25 x 15.35 x 6.75"
