Allen & Heath AH-ME-500 16-Channel Personal Mixer

Authorized Dealer

Shipping calculated at checkout.

Allen & Heath | SKU: AH-ME-500

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

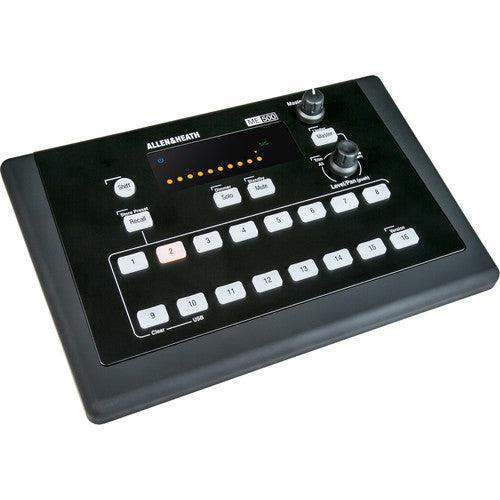

The Allen & Heath ME-500 is a standalone digital personal mixer that receives up to 16 mono or stereo sources over a single Cat5 cable and offers a flexible and easy-to-operate solution for individual musicians, performers, and presenters who wish to control their own monitor sound whether on stage, in houses of worship, rehearsal rooms, studios, conferences, or live events.

ME is a 48 kHz system compatible with most Allen & Heath mixers including the dLive, GLD, and Qu systems, as well as Aviom A-Net 16. Additionally, the unit will work with other devices with MADI, Dante, and EtherSound connectors via the optional ME-U hub. Mute or solo individual channels, adjust the tone using the on-board 2-band EQ, and set the limiter to prevent loud peaks. Once a mix has been created, simply save the set for recall at a later date. A USB port on the rear of the interface provides transfer settings and firmware updates via USB key. The Allen & Heath ME-500 ships with a power supply.

Features

Works with dLive, GLD, Qu & Aviom A-Net
Works with ME-U Hub to Other Mixers
Compatible with MADI, Dante, EtherSound
Compact Design
Auto Key Assignment
8 User Presets
Headphone Outputs: 1/8" and 1/4"
Level, Pan, EQ & Limiter
Supports Daisy Chaining
Powered by PoE or Included Power Supply

Specs

Stereo Output	Connector: Stereo 1/4" / 6.35 mm and 1/8" / 3.5 mm Headphones: >16 Ohms, power 300 + 300 mW into 100 Ohms load, or line out max +21 dBu
Mono Output	Connector: 1/4" / 6.35 mm balanced TRS Nominal: 0 dBu Maximum: +18 dBu
Residual Output Noise	-95 dBu (level min)
Frequency Response	10 Hz to 20 kHz (+0/-1 dB)
AD/DA Conversion	24-bit Delta/Sigma, 48 kHz
Presets	8 user presets
Compatibility	Direct Connection: dLive, GLD, and Qu systems ME-U Hub: MADI, Dante, and EtherSound Aviom A-Net 16
Data Port	USB: Individual presets or config transfer, firmware update

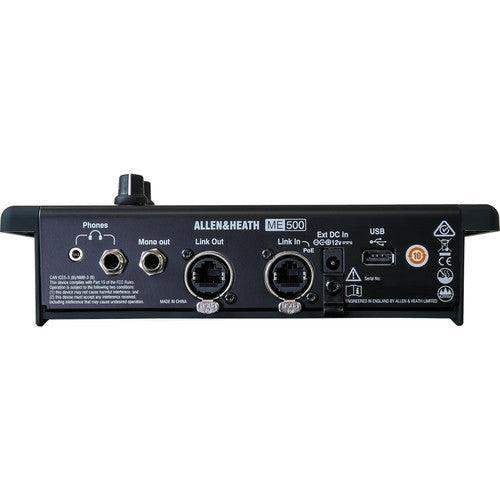

CAT5	Audio and PoE: Link In and Link Out, locking etherCON connectors
Power	Mains: 100 to 240 VAC, 50 / 60 Hz In, 12 VDC 1.25 A Out Power over CAT5 Cable (PoE): 10 W (Requires 15 W from PoE switch; optional PoE switch available separately)
Dimensions	9.1 x 6.3 x 2.8" / 230.0 x 160.0 x 70.0 mm
Weight	2.4 lb / 1.1 kg
