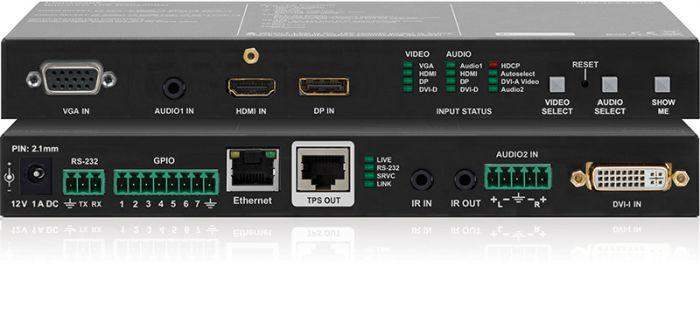

Lightware UMX-TPS-TX140 UMX Series TPS Transmitter - 91540008
UMX-TPS-TX140 transmits universal video signals at a resolution of up to 4K together with audio and control up to a range of 170 m over a single CAT5 or better class cable. This transmitter was designed for digital and analog video and audio signals:VGA YPrPb and HDMI 1.4, DVI and DP 1.1 with analog stereo audio from local input or embedded 7.1 HBR audio and also handles HDCP encryption. Analog signals (both audio and video) are converted to a digital format and can be transmitted separately. Using the factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent IR, RS-232 and Ethernet transmission. IR and RS-232 connections support command injection, allowing the sending of any IR or RS-232 control command directly via the LAN connection. Remote powering is available through the single CAT cable, but local power supply can also be used. The device can be mounted on a rack shelf or used standalone. The device is compatible with both HDBaseTTM extenders and matrix boards.
Applications
- Small classrooms
- Conference rooms, meeting rooms
- Control room
- Home cinema
Compatible Products
- MX Modular matrix frames with MX-TPS-IB or MX-TPS2-IB
- DVI-HDCP-TPS-RX95
- HDMI-TPS-RX95
- TPS-PI-1P1
- MMX6x2-HT200
- MMX6x2-HT210
- MMX6x2-HT220
Features
- Built-in Event Manager control automation feature
- Autoselect modes to automatically switch video and audio (first detect, last detect, priority)
- Breakaway audio and video switching (audio and video signals can be routed separately)
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- HDCP enable/disable function on input
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- No signal latency, zero frame delay
- TPS link quality and cable length monitoring
- DVI-I (Analog+Digital) input connection
- Adjustable analog audio settings (volume, gain, balance)
- Audio embedding (or replace original audio)
- Firmware upgrade through Ethernet
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- HDBaseT compatible
- Ethernet extension (100 Mbps)
- Advanced EDID Management
- Digitizes VGA, YUV analog input formats and converts to HDMI or DVI
- Pixel Accurate Reclocking
- Command injection on RS-232 and IR ports
- GPIO control ports
- Device control via Ethernet (TCP/IP) and RS-232
- Multiple TCP/IP connections
- Intuitive control software for device configuration
- Front panel buttons for crosspoint control
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
- No video compression
- Built-in video test pattern generator
- Bi-directional RS-232 and IR extension (pass-through)
- Extends VGA, DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
- Bi-directional RS-232 and IR extension (pass-through and control)
- Twist-and-lock DC power connector
- Frame Detector (analyze detailed video timings)
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
- Compatible with Mac laptop and desktop computers with Thunderbolt port
- External universal power adaptor
- 5-pole Phoenix balanced analog audio connectors
- 3,5mm audio jack input
- Mounting options for rack, furniture or truss
Specs
| Specifications | |
| Resolution: | Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz |
| Digital audio formats: | Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats |
| Input cable equalization: | 4K UHD/15m; FullHD/30m |
| EDID emulation: | Yes, Advanced EDID Management |
| EDID memory: | 120 factory preset, 15 user programmable |
| VGA to digital conversion: | 0 microseconds delay |
| HDCP pass-through: | Yes |
| RS-232 pass-through: | Yes, configurable |
| RS-232 (control option): | 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through CATx)(default: 57600) |
| Local power: | Universal power adaptor, DC 12V 2.5A |
| Power over TPS: | DC 48V 1 A |
| Power consumption: | 9W (typ) |
| Enclosure: | 1 mm metal |
| Dimensions: | 221 W x 100.4 D x 26 H mm |
| Compliance: | CE |
| Warranty: | 3 years |
| Connectors | |
| Digital video input: | HDMI connector, DVI-I connector, DisplayPort |
| Analog video input: | VGA connector |
| Audio input: | 3.5 mm stereo jack, 5-pole PHOENIX |
| Ethernet: | 1 x RJ45 |
| GPIO: | 8-pole PHOENIX |
| IR: | 3.5 mm jack |
| TPS output: | 1 x RJ45 |
| Serial port: | 3-pole PHOENIX |
| Power: | Locking DC connector (2.1 / 5.5 mm) |
| Analog audio input | |
| Volume: | -96 .. 0 dB |
| Balance: | 0 .. 100% |
| Max cable lengths with the available firmware versions |
||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
|
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz. **Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering. |
||||
