Lightware MX2M-PSU-1250FP Replacement Power Supply for MX2M modular matrix frame - 91110022
Lightware MX2M-PSU-1250FP Replacement Power Supply for MX2M modular matrix frame - 91110022 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Lightware MX2M-PSU-1250FP Replacement Power Supply for MX2M modular...

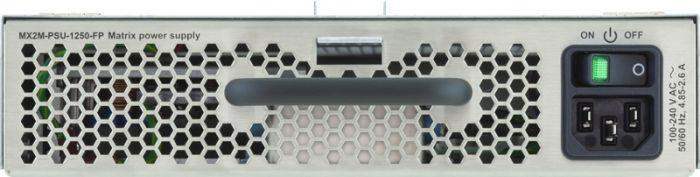

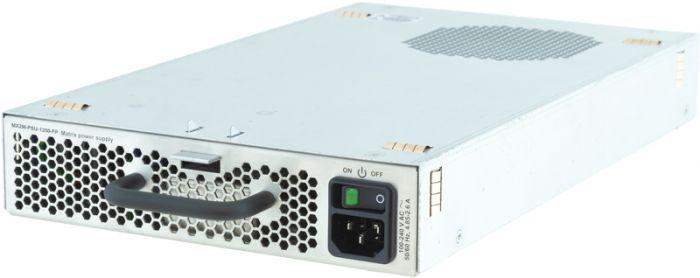

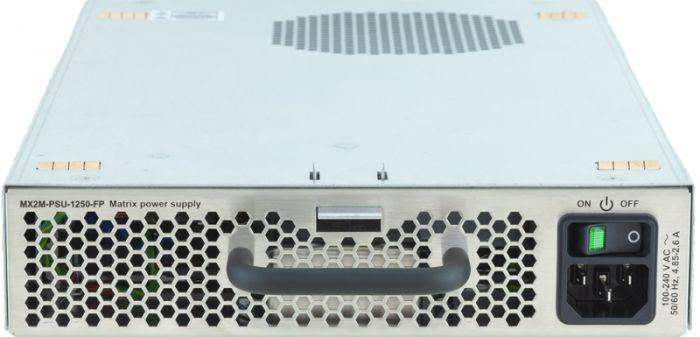

MX2M-PSU-1250-FP is a replacement power drawer for the MX2M modular matrix frame.
This Power Supply Unit provides local power for the matrix frame, for the IO boards as well as for remote powering of PD devices connected to the various IO boards. The power drawer is hot-swappable, has a dedicated power switch and supports IEC C13 connectivity.
Upon installing a second power supply unit for the MX2M-FR24R matrix frame, in order to unlock the possibility for redundant operation users need to upgrade the device’s firmware by purchasing the Redundancy Upgrade.
For users who purchased their device with two PSU drawers and only looking to get additional PSU drawers as a spare or backup do not need to perform the firmware upgrade as their device is fully power redundancy capable by default.
| Power adaptor | |
| Input voltage range | 90-264 VAC |
| Input frequency range | 47-63 Hz |
| Input AC current (typ) | 12.35 A |
| Rated output current | 41.7 A @ 12 VDC, 15.7A @ 48 VDC |
| AC power plug | 1 x IEC C13 (Japanese, Swiss, US, UK, EU, Chinese) |
| DC power plug | n.a. |
| AC fuse | n.a. |
| AC switch | yes, illuminated |
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 50581:2012 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -40° to +85˚C (-40° to +185˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | by cooling fan fitted in the frame |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1.5 mm steel |
| Dimensions in mm | 206 W x 376* / 345 D x 48 H |
| Dimensions in inch | 8.11 W x 14.8* / 13.68 D x 1.89 H |
| Weight | 4480 g |
