Lightware HDMI-TPX-TX106A AVX (non-switchable) HDMI 2.0 extender - 91580003

The HDMI-TPX-TX106A extender with AVX technology are Lightware’s newest development and a natural progression from the widely popular HDMI-TPS-TX/RX96 series, allowing users to extend HDMI 2.0 signals up to 4K60 4:4:4 video resolution through a single CATx cable over distances up to 100 meters.

The HDMI-TPX-TX106A features a stereo analog audio output DAC converted from the input HDMI stream for feeding local audio receivers.

Beyond the benefits of sending high-resolution video over long distances, the extenders are also capable to handle various connectivity standards, including bi-directional RS-232, command injection over IR (output only) * as well as sending and receiving *PoC remote powering.

HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3^rd party devices, such as the Christie Terra projector.

Features

• Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
• Bi-directional RS-232 extension (pass-through)
• HDCP 2.3 compliant (transparent pass-through)
• Great price/value balance
• HDMI 2.0 end-to-end extension
• Bi-directional PoC remote powering
• Extends HDMI 2.0, audio, Ethernet, RS-232 up to 100m over one CATx cable
• Ethernet extension (1 Gbps)
• Command injection through IR

Specs

Video inputs

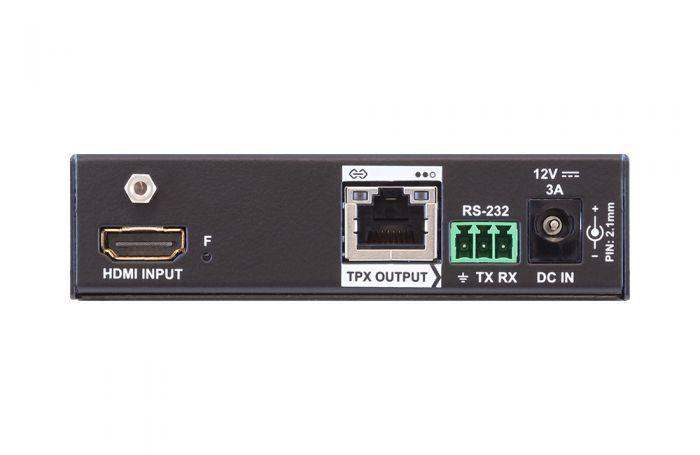

HDMI input
Connector type	19-pole HDMI Type A receptacle
A/V standard	DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance	HDCP 2.3
Color space	RGB, YCbCr
Video delay	0 frame
Supported resolutions at 8 bits/color *
	up to 4096x2048@60Hz (4:4:4)
	up to 3840x2160@60Hz (4:4:4)
	4096x2048@60Hz (4:2:2) up to 10 bits/color
Reclocking	Pixel Accurate Reclocking
3D support	yes
Audio formats	All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

EDID management
EDID emulation	yes, dynamic EDID from connected receiver and 1 locally stored EDID
EDID memory	1 stored EDID
Supported standard	EDID v1.3

Video Outputs
TPX output
Connector type	RJ45 connector
Power over Ethernet (PoE)	PoC (can send and receive power)
Compliance	SDVoE
HDCP compliance	HDCP2.3
Transferred signals	Video, Audio, RS-232, Infrared, Ethernet
Color space	RGB, YCbCr
Video delay	0 frame
Supported resolutions at 8 bits/color *	up to 4096x2048@60Hz (4:4:4)
	up to 3840x2160@60Hz (4:4:4)
	4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats	All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

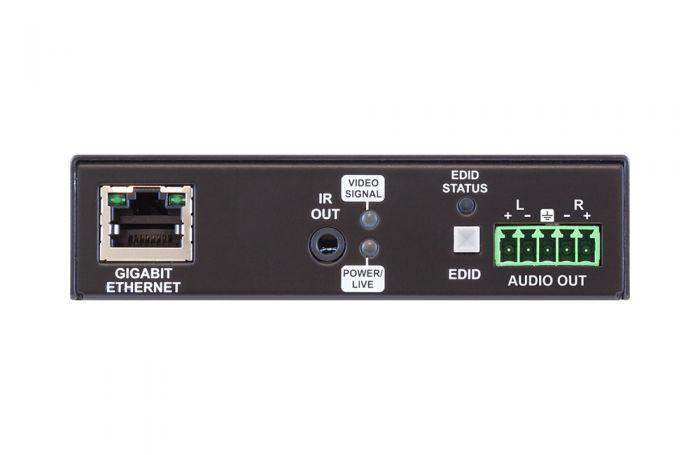

Analog audio output
Connector type	5-pole Phoenix connector
Audio formats	2-ch PCM
Sampling frequency	48 kHz
Volume	-78 dB - 0 dB
Balance	0 - 100 (50 = center)
Nominal Differential Output Level @ 0 dB Gain	+4 dBu
Nominal Differential Output Level @ 3 dB Gain	+7 dBu

Control Ports
RS-232 serial port
Connector type	3-pole Phoenix connector
Baud rates	Between 4800 and 115200 Baud
Data bits	8 or 9
Parity	None / Odd / Even
Stop bits	1 / 1.5 / 2
Ethernet port
Connector type	RJ45 female connector
Ethernet data rate	10/100/1000Base-T, full duplex with autodetect
Infrared port
Output connector type	3.5 mm TS (approx. 1/8" jack)
Input carrier frequency	38 kHz
Output signal	modulated (38kHz)

Power
Power supply option	Power adaptor / PoC
Supported power source
Power consumption (max)	8.1W
Power consumption (min)
Heat dissipation	27.6 BTU/h (max)
AC power connector
AC fuse
Power over Ethernet (PoE)	via TPX output (IEEE802.3af) (can send and receive power)
Power adaptor
Supported power source	100-240 V AC; 50/60 Hz
Supplied power	12V DC, 2A
AC power plug	Interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug	Locking DC connector (2.1/5.5 mm pin)
