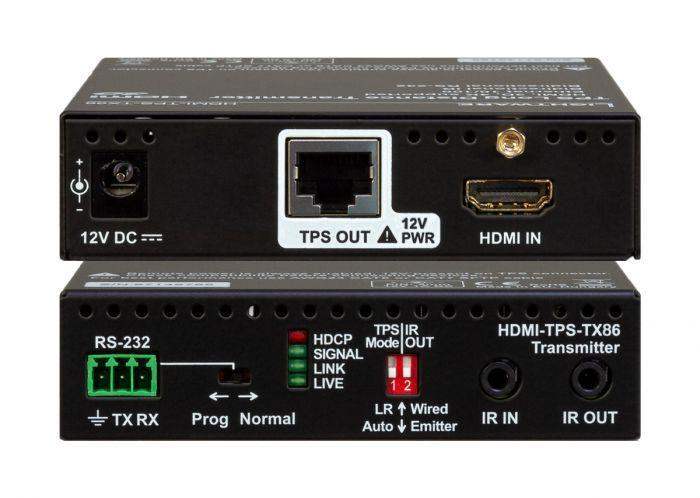

Lightware HDMI-TPS-TX86 TPS extender for single CATx cable - 91540086

Authorized Dealer

$610.50

Shipping calculated at checkout.

LightWare | SKU: 91540086

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

HDMI-TPS-TX86 and HDMI-TPS-RX86 twisted pair HDBaseT^TM extenders provide extension of uncompressed Full-HD video for long distances over a single CATx cable. The unit offers bi-directional RS-232 and IR pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work at all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. Remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.

The Auto operation mode allows the device to detect the far end extender’s mode and adopt it. If the far end device is in Auto mode or it is a third party HDBaseTTM device the link will be set to HDBT mode. If the far device is in forced Long Reach Mode then the auto operation will set the Link to Long Reach Mode.

Applications

Post production studios
Control room
Digital Signage
Multiroom video
Conference rooms, collaborative telepresence

Features

Extends DVI or HDMI 1.4 + Audio + RS-232 + IR over one CAT5/6/7 cable
Can be remote powered through CATx cable (12V)
Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
Supports all VESA and HDTV resolutions
HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
Bi-directional RS-232 extension (pass-through)
HDCP 2.2 compliant (transparent pass-through)
Compatible with 120 Hz 3D video signals
Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
No signal latency, zero frame delay
Selectable operation mode (Auto or forced Long Reach mode)
Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
HDBaseT compatible
Transparent EDID pass-through
Bi-directional IR extension (pass-through)
CEC support (pass-through)
Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
No video compression
Bi-directional RS-232 and IR extension (pass-through)
Status LEDs (Live, TPS link, signal and HDCP detect)
Twist-and-lock DC power connector
Low power mode (standby)
Local or remote (remote-send / remote-receive) power source
External universal power adaptor
Mounting options for rack, furniture or truss

Specs

Specifications
Data rate:	3.4 Gbps per color
Resolution:	All HDMI 1.4a resolutions supported
Equalization:	Adaptive, automatic
EDID support:	Transparent
HDCP pass through:	Yes
RS-232 pass through:	Yes
IR pass through:	Yes
Power:	Universal power adaptor, DC 12 V 2.5 A
Overall signal delay:	10µs (including 100m CATx cable)
Power consumption:	3.6 W (typ) 4.2 W (max)
Enclosure:	1 mm metal
Dimensions:	100.4 W x 100.4 D x 26 H mm
Weight:	330 g / product
Compliance:	CE
Warranty:	3 years

Connectors
TX input, RX output:	HDMI connector
TX output, RX input:	RJ45 (TPS interface)
IR In, out:	3.5mm TRS connector (1/8’’ mini-jack)
Serial port:	3-pole PHOENIX
Power:	Locking DC connector (2.1 / 5.5 mm)

Max cable lengths with the available firmware versions
Resolution	Pixel clock rate	Cable lengths (Auto / LR link mode)
Resolution	Pixel clock rate	CAT5e AWG24	CAT7 AWG26**	CAT7 AWG23
1024x768@60Hz	65 MHz	100 m / 130 m*	90 m / 120 m*	120 m / 170 m*
1280x720p@60Hz	73,8 MHz	100 m / 130 m*	90 m / 120 m*	120 m / 170 m*
1920x1080p@60Hz / 24bpp	148,5 MHz	100 m / 130 m*	90 m / 120 m*	120 m / 170 m*
1920x1200@60Hz	152,9 MHz	100 m / NA	90 m / NA	120 m / NA
1600x1200@60Hz	162 MHz	100 m / NA	90 m / NA	120 m / NA
1920x1080@60Hz / 36bpp	223 MHz	70 m / NA	70 m / NA	100 m / NA
3840x2160@30Hz UHD	297 MHz	70 m / NA	70 m / NA	100 m / NA
4096x2160@30Hz 4K	297 MHz	70 m / NA	70 m / NA	100 m / NA
with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz. *Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
