Lightware HDMI-OPTX-RX100A SDVoE compatible HDMI 2.0 over fiber opt...

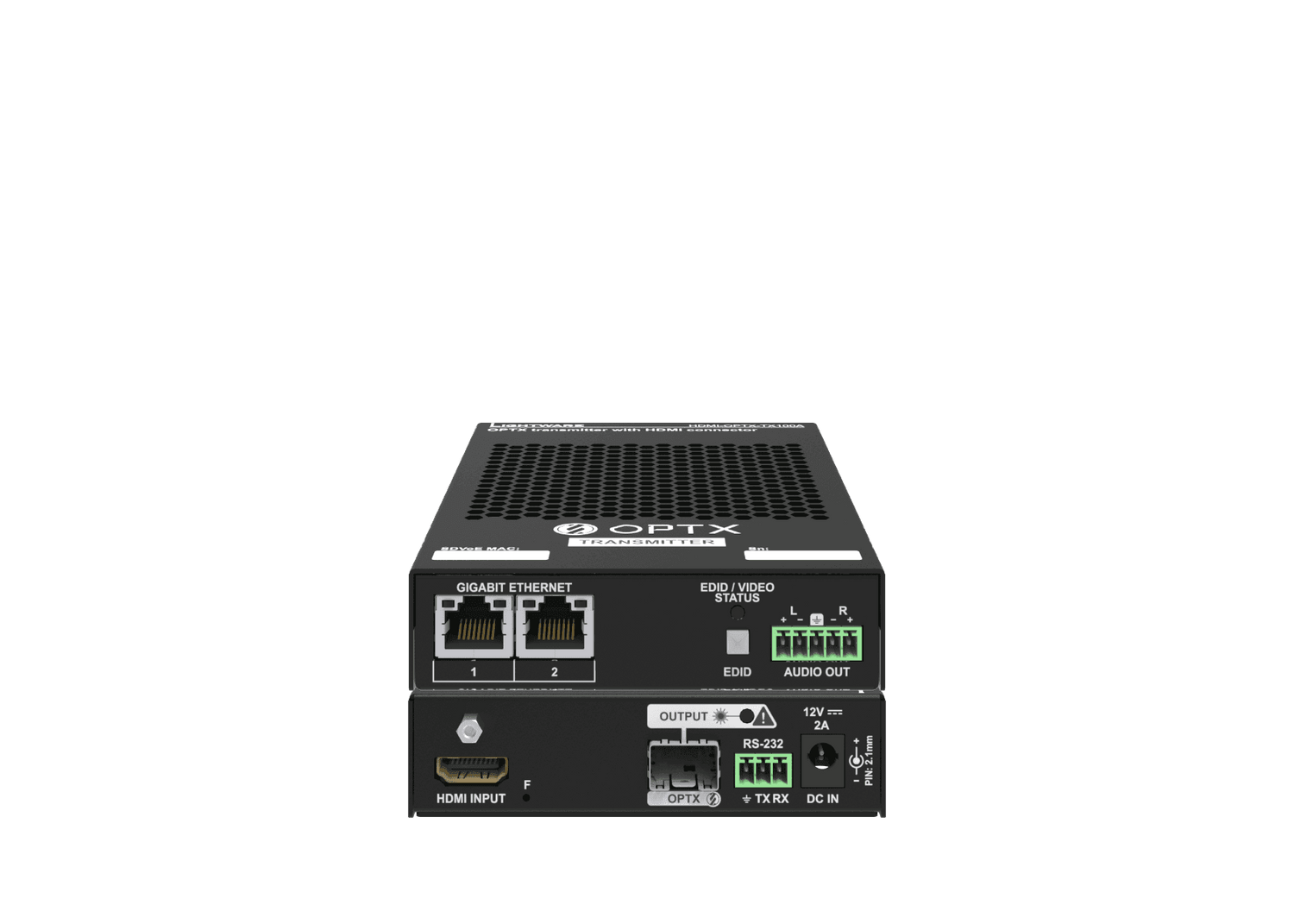

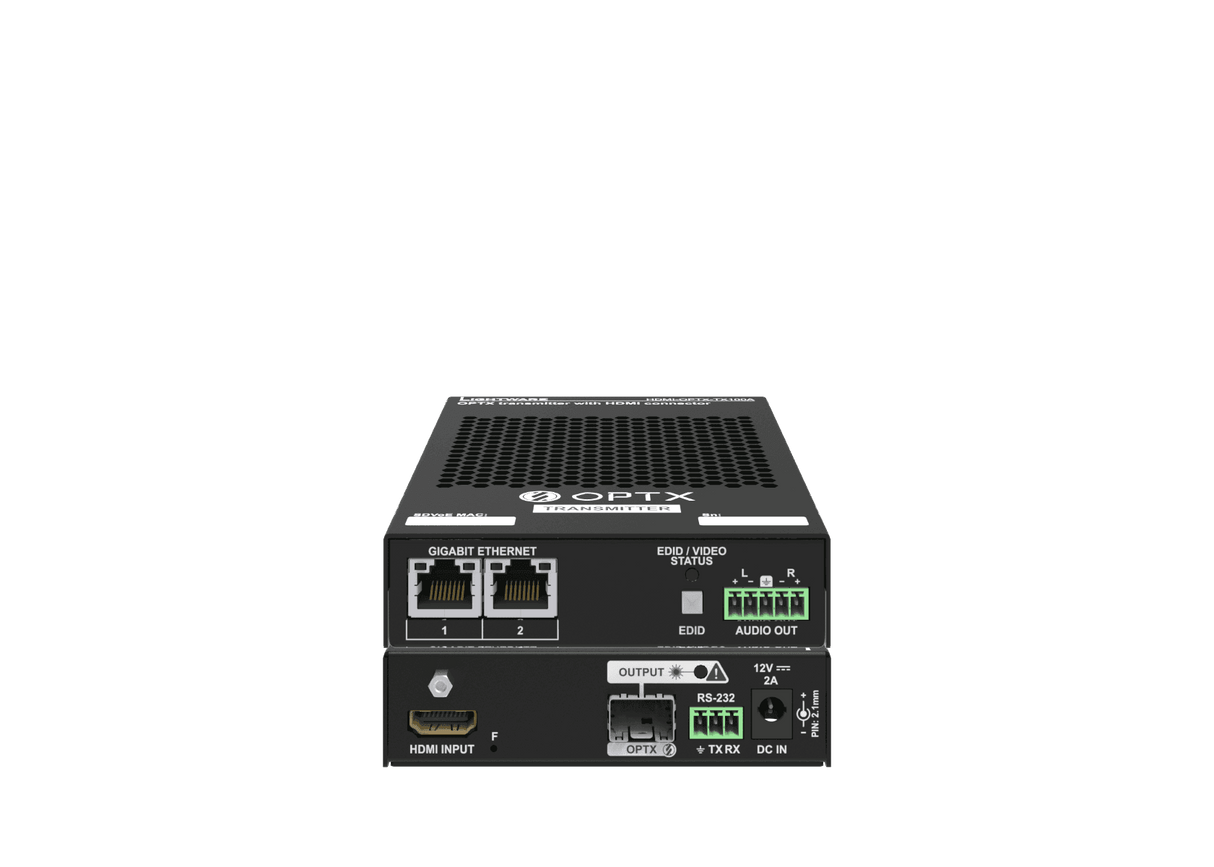

The HDMI-OPTX-TX100A and HDMI-OPTX-RX100A transmitter and receiver devices are fiber extenders based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to a single destination through a fiber optical link.
Features
- Transmission distance of up to 10km (when SM SFP+ module is used)
- SFP+ cage for single mode or multimode SFP+ modules
- Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, and RS-232 data between an extender pair through single mode or multimode fiber
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDR and Low Latency Dolby Vision support
Specs
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -30° to +80˚C (-22° to +176˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor |
| Supported power source | |
| Power consumption (max) | TBD |
| Power consumption (min) | |
| Heat dissipation | TBD BTU/h (max) |
| AC power connector | |
| AC fuse | |
| Power over Ethernet (PoE) | |
| Power adaptor | |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 12V DC, 2A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | Locking DC connector (2.1/5.5 mm pin) |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 100.4 W x 151.8 D x 26 H |
| Dimensions in inch | 3.95 W x 5.98 D x 1.02 H |
| Weight | TBD kg |
| * with rack mounting ears |
| Video inputs | |
| HDMI input | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | |
| up to 4096x2048@60Hz (4:4:4) | |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Reclocking | Pixel Accurate Reclocking |
| 3D support | yes |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Input cable equalization | |
| * The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels. |
| EDID management | |
| EDID emulation | yes, default EDID and 1 locally stored EDID |
| EDID memory | 1 stored EDID |
| Supported standard | EDID v1.3 |
| SFP+ Port Slots | |
| Number of ports | 1 |
| Supported data rate | 10Gbps |
| OPTX output | |
| Connector type | SFP+ cage |
| Power over Ethernet (PoE) | |
| Compliance | SDVoE |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Infrared, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| * The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels. |
| Analog audio output | |
| Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM |
| Sampling frequency | 48 kHz |
| Volume | -78 dB - 0 dB |
| Balance | 0 - 100 (50 = center) |
| Nominal Differential Output Level @ 0 dB Gain | +4 dBu |
| Nominal Differential Output Level @ 3 dB Gain | +7 dBu |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |
| Ethernet port | |
| Connector type | 2x RJ45 female connector |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
