JBL Professional VLA-C2100 2-Way Horn-Loaded Line Array Speaker System, 100° Horizontal Coverage
JBL Professional VLA-C2100 2-Way Horn-Loaded Line Array Speaker System, 100° Horizontal Coverage is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL Professional VLA-C2100 2-Way Horn-Loaded Line Array Speaker Sys...

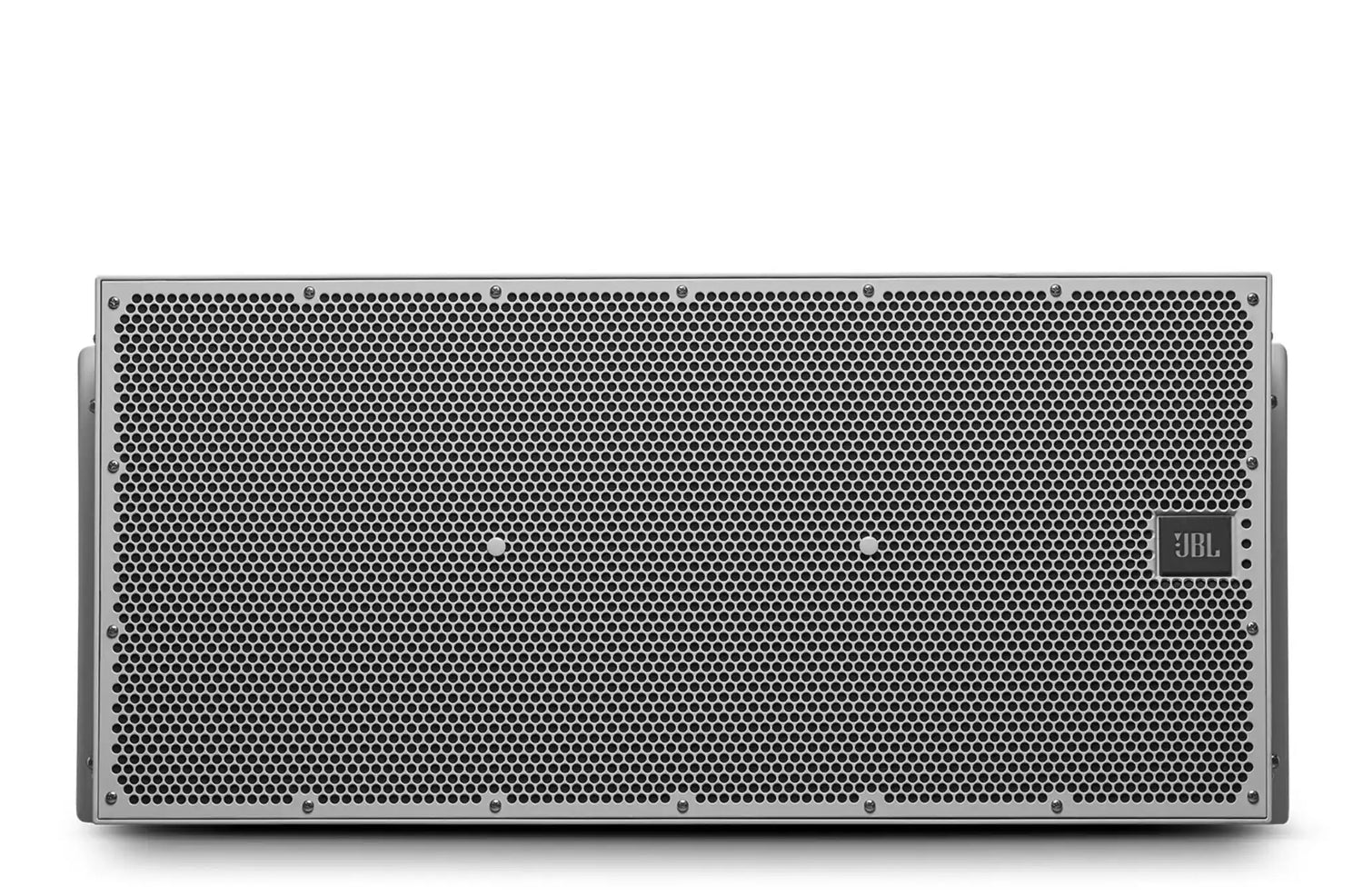

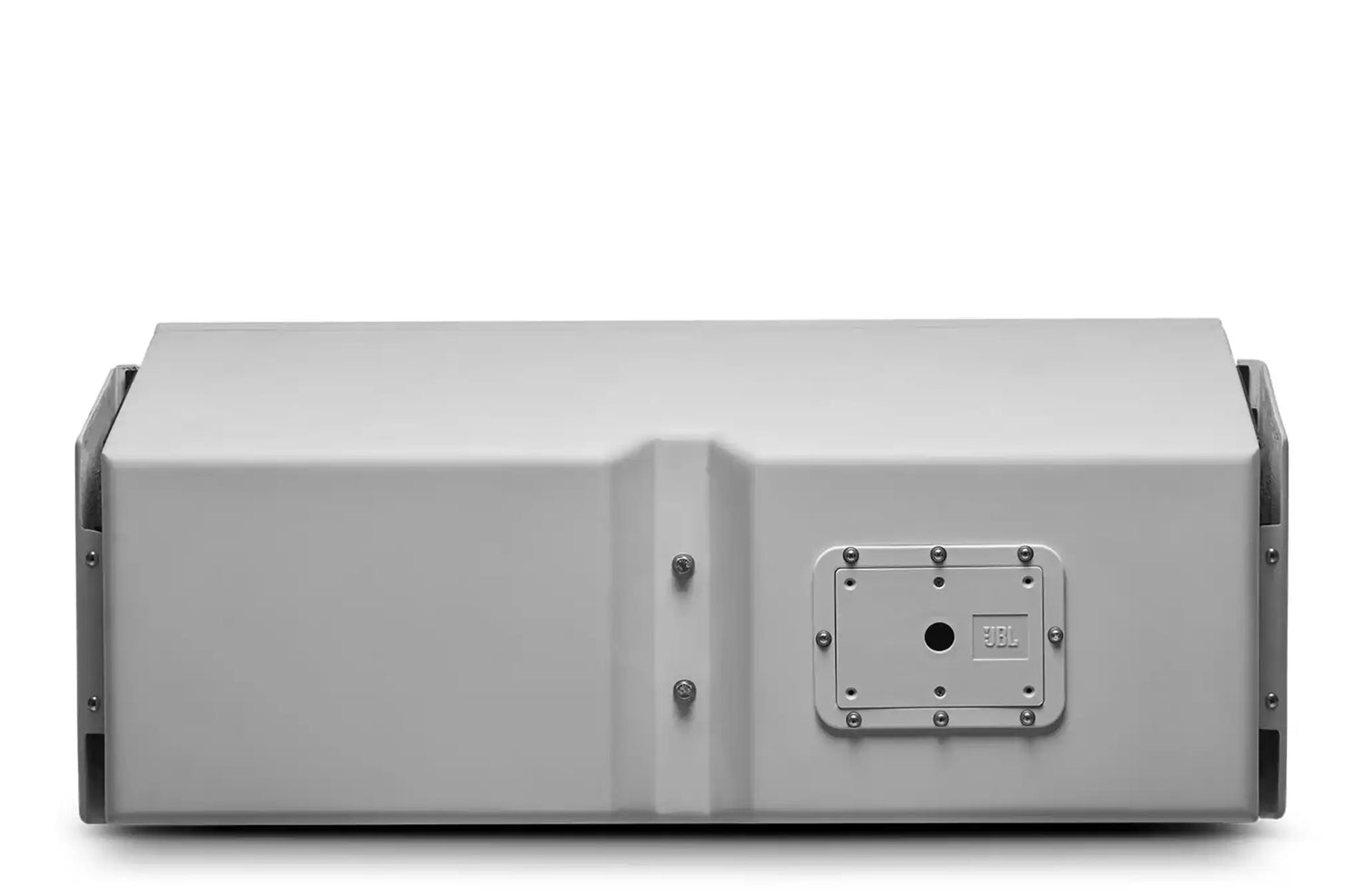

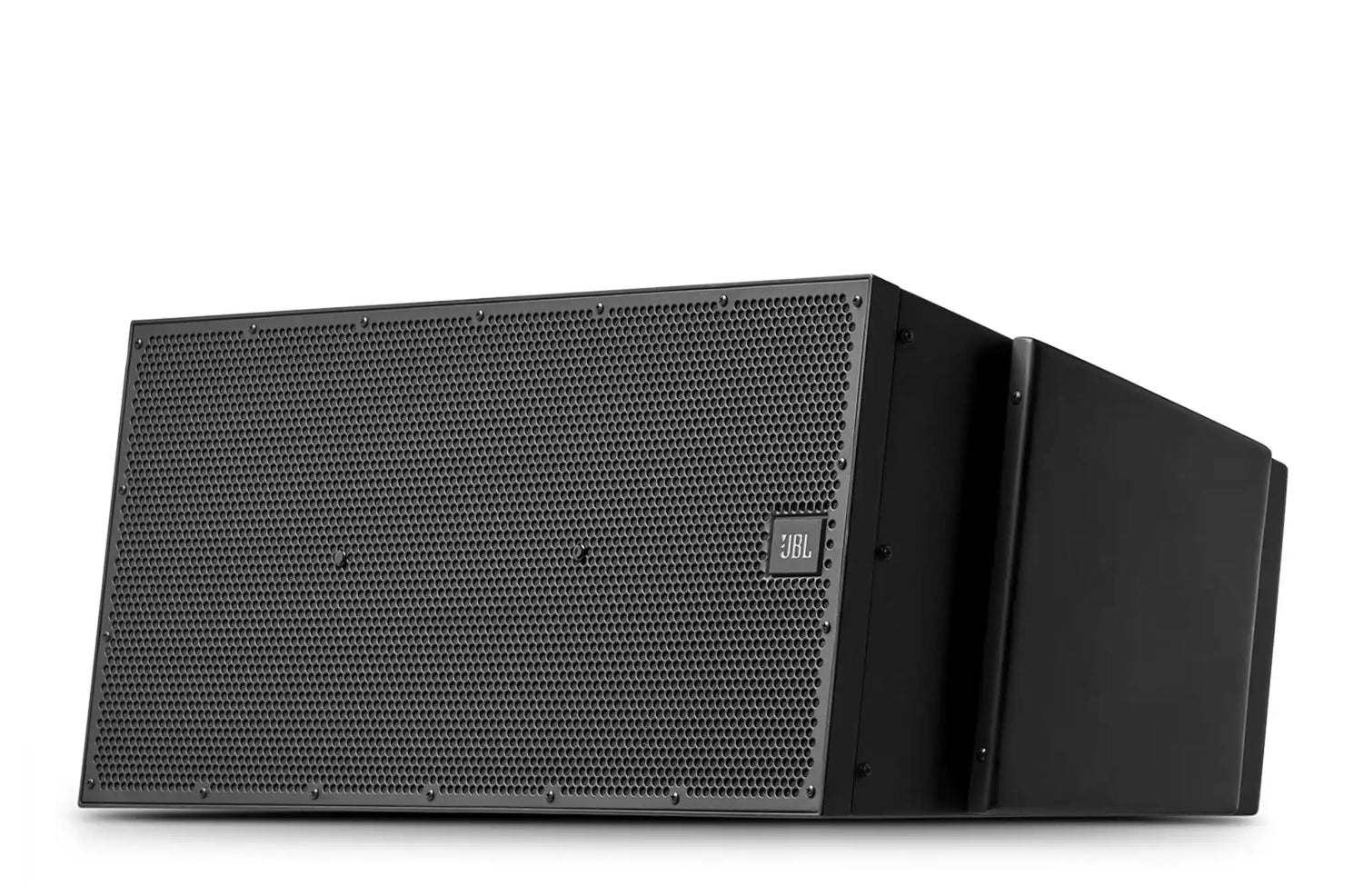

The JBL Professional VLA-C2100 is a compact two-way horn-loaded line array module designed for permanent installation in large-scale venues such as arenas, stadiums, and houses of worship. With its 100° horizontal coverage, the VLA-C2100 ensures wide, even sound dispersion across expansive listening areas, making it an ideal solution for applications where broad audience coverage and speech intelligibility are essential.

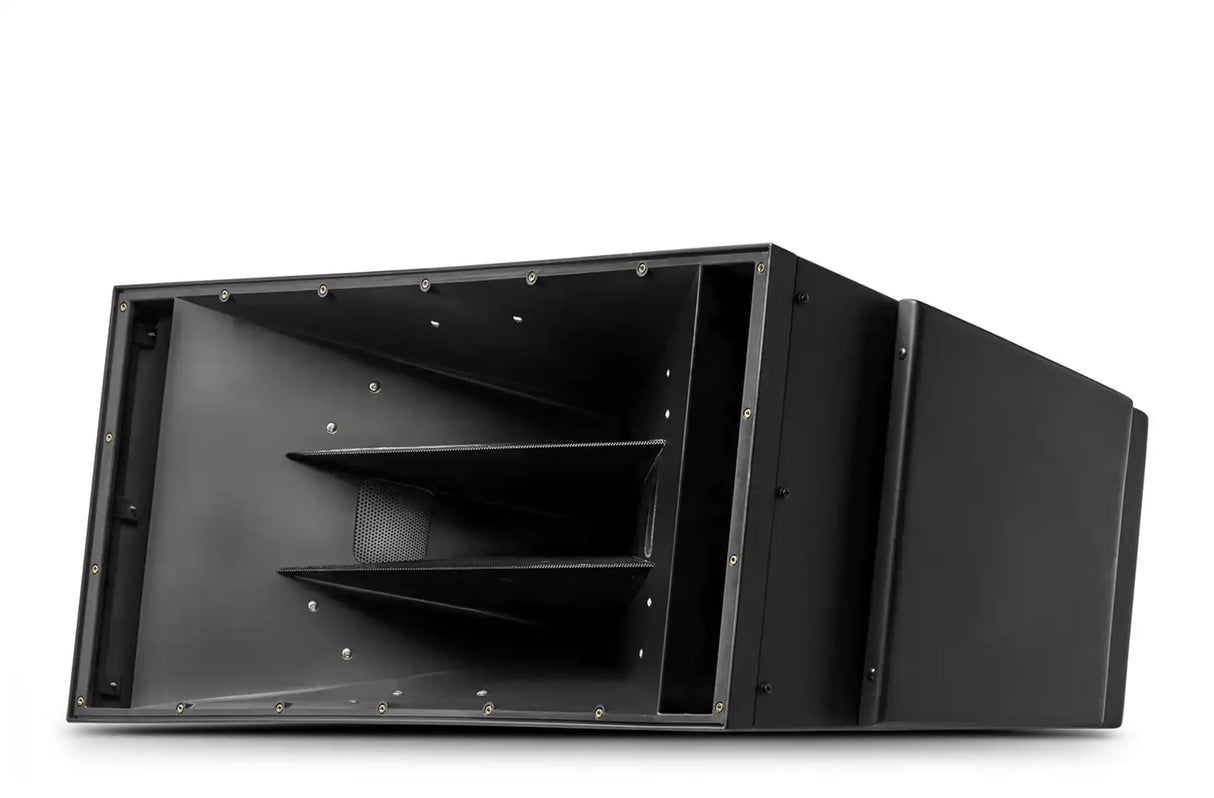

The high-frequency section is powered by three JBL D2415 compression drivers with 1.5" annular diaphragms, 1.5" voice coils, and neodymium magnets. This advanced horn-loaded design maximizes sensitivity while delivering precise high-frequency detail. For low-frequency performance, the system incorporates dual 10" JBL 2261 Differential Drive® woofers with 3" voice coils, delivering powerful and consistent bass response with reduced distortion and efficient power handling.
Engineered for durability, the enclosure features multi-layer fiberglass with internal birch plywood bracing, paired with powder-coated 14-gauge steel grilles backed by hydrophobic mesh and acoustically transparent cloth. Rated IP55, the VLA-C2100 is built to withstand exposure to dust and water, ensuring reliable performance in outdoor environments.

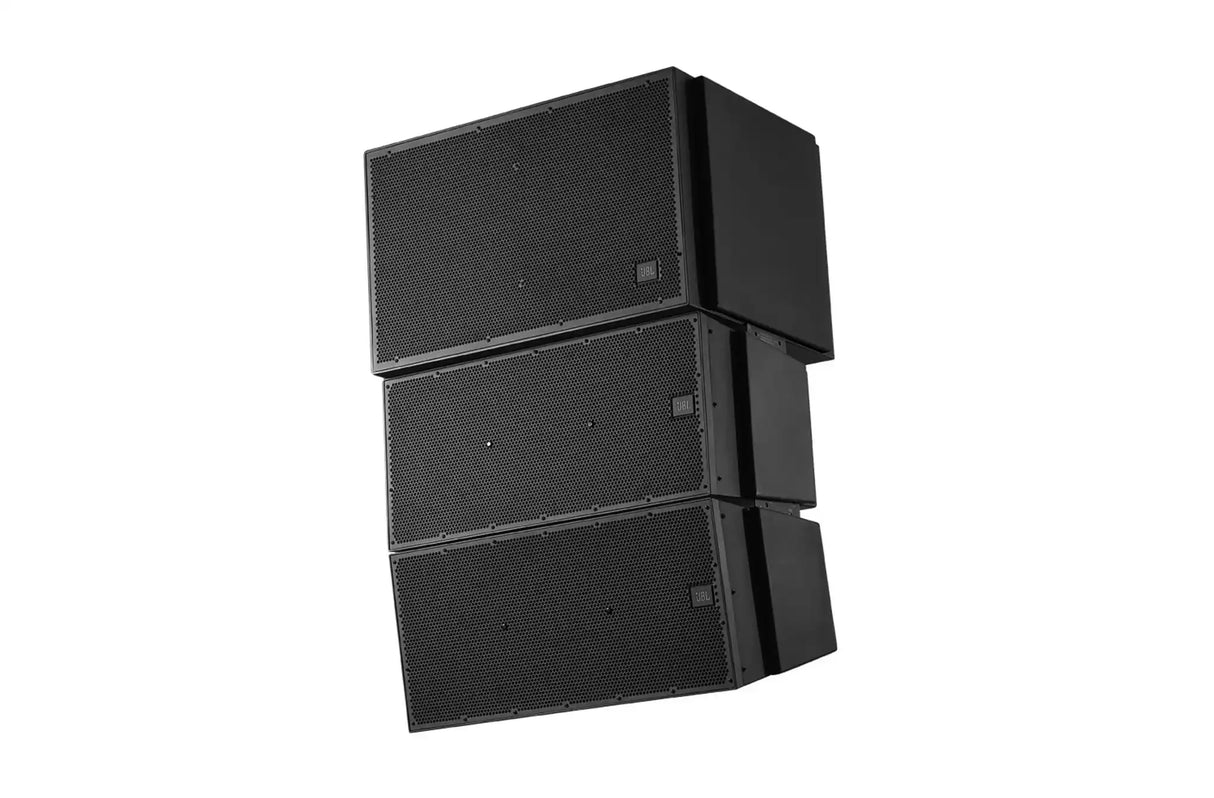

The integrated rigging system allows for flexible inter-box angle configurations, supporting a wide range of line array designs. With bi-amp and passive operating modes, the VLA-C2100 provides system designers and installers with flexibility in amplification choices. When paired with other VLA Compact Series modules, such as the VLA-C265 or VLA-C125S subwoofer, it offers scalable solutions for projects of any size.
Features
-
Compact 2-way full-range line array module
-
Dual 10" Differential Drive® LF drivers for deep, controlled bass
-
Triple 1.5" compression drivers with neodymium motors for precise highs
-
Wide 100° horizontal horn coverage for maximum audience reach
-
Weather-resistant IP55-rated enclosure for outdoor installation
-
Fiberglass and steel construction with hydrophobic mesh grille protection
-
Flexible rigging system with multiple inter-enclosure angle options
-
Can operate in bi-amp or passive mode for installation flexibility
-
Optimized for permanent installation in large venues
Specifications
| Category | Details |
|---|---|
| Model | JBL VLA-C2100 |
| Type | 2-Way Horn-Loaded Line Array Speaker |
| Coverage Pattern (-6 dB) | 100° horizontal (+5°/-15°), vertical varies with array |
| Frequency Range (-10 dB) | 86 Hz – 18 kHz |
| Frequency Response (±3 dB) | 109 Hz – 15.3 kHz |
| RMS Power Handling | 800 W |
| Peak Power Handling | 3200 W |
| Impedance | 16 Ohms |
| Sensitivity | 108 dB |
| Maximum SPL | 131 dB Continuous, 137 dB Peak |
| LF Driver | 2 × 10" 2261 Differential Drive®, 3" voice coil |
| HF Driver | 3 × D2415 compression drivers, 1.5" diaphragms |
| Enclosure Material | Fiberglass shell with birch plywood bracing |
| Grille | Powder-coated 14-gauge steel with hydrophobic mesh |
| Rigging Angles | Multiple inter-enclosure configurations |
| Environmental Rating | IP55 (dust/water resistant) |
| Dimensions (H × W × D) | 381 × 848 × 460 mm (15.0 × 33.4 × 18.1 in) |
| Net Weight | 83 lbs (37.7 kg) |
| Finish Options | Black (-BK) or Gray (-GR) |
Compare Models
| Model | LF Drivers | HF Drivers | Horizontal Coverage | Application |
|---|---|---|---|---|
| VLA-C2100 | Dual 10" | Triple 1.5" drivers | 100° | Wide coverage for large spaces |
| VLA-C265 | Dual 10" | Triple 1.5" drivers | 65° | Focused coverage, arenas/stadiums |
| VLA-C125S | Dual 15" subwoofers | N/A | N/A | Extended low-frequency support |
