JBL SUB18 – 18-inch High-Output Studio Subwoofer
The JBL SUB18 is JBL's most powerful studio subwoofer, designed for applications demanding extremely high continuous output and deep, accurate low-frequency response. With in-room response extending below 18 Hz and peak output of 137 dB, the SUB18 provides unmatched performance for demanding studio, cinema post-production, and live dance music applications.

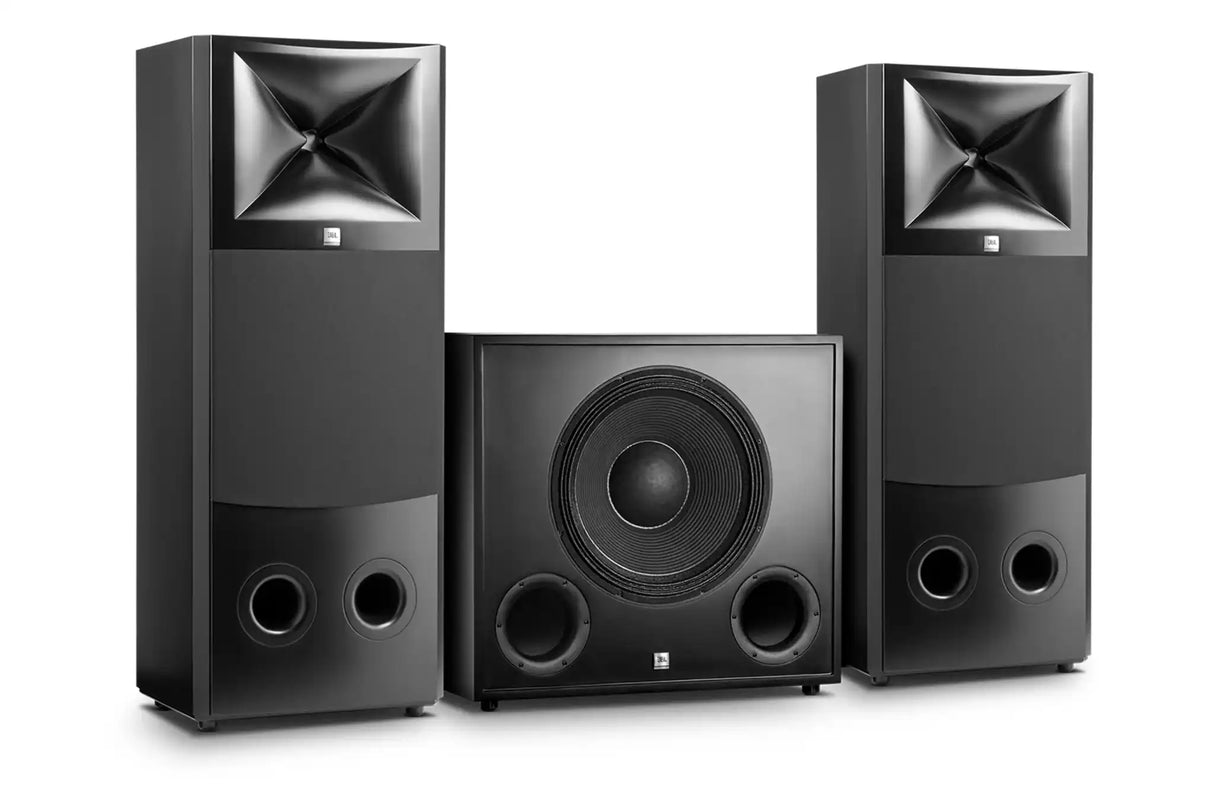

As a complement to JBL’s M2 Master Reference Monitor system, the SUB18 triples the output capability, delivering precise and deep sub-bass reproduction while maintaining the accuracy necessary for critical listening environments.
Compact and versatile, the SUB18 features an integrated Class D amplifier, ported design for maximum efficiency, and flexible rigging options for both ground-stacked and flown configurations.
Key Features
-
18-inch LF Driver: 18" (457 mm) Differential Drive® driver with 4" dual voice coil, dual neodymium magnets, and Direct Cooled™ technology for high excursion and low distortion.
-
High-Power Amplification: Integrated 2,000 W Class D power amplifier (1,000 W RMS) delivering maximum SPL of 135–137 dB.
-
Extremely Low Frequency Response: In-room response below 18 Hz with a -10 dB frequency of 20.6 Hz.
-
Ported Enclosure: Optimized ported design maximizes efficiency and delivers tight, articulate sub-bass.
-
Flexible Mounting: Integrated M20 threaded pole mount for stacking with full-range loudspeakers and M10 fly points for suspension.
-
User Controls: Menu system allows selection of sound-enhancing presets, variable low-pass filter, and performance monitoring via LED indicators.
-
Durable Construction: Rugged 15 mm eucalyptus plywood enclosure with Chemline Polyurea finish and tour-grade steel grille.
-
Connectivity: Balanced XLR input and direct output; locking powerCon AC connectors for secure operation.
Specifications
| Category | Details |
|---|---|
| Model | JBL SUB18 |
| Type | Studio subwoofer, active |
| LF Driver | 1 × 18" JBL 2269H Differential Drive®, dual 4" voice coil, dual neodymium magnets |
| Frequency Range (-10 dB) | 20.6 Hz |
| Frequency Response (-6 dB) | 23.1 Hz |
| Frequency Response (±3 dB) | 18 Hz @ 2π |
| Maximum Peak SPL | 137 dB |
| System Input Power Rating (AES) | 2,000 W continuous / 8,000 W peak |
| Amplifier Power Rating | 3,500–4,000 W into 8 Ω |
| Sensitivity | 92 dB @ 1 m, 2.83 V |
| Rated Impedance | 8 Ω |
| Low-Pass Filter | Variable, user-adjustable |
| Input/Output Connectors | Balanced XLR input and direct output |
| Enclosure Material | 15 mm eucalyptus plywood with Chemline Polyurea finish |
| Dimensions (H × W × D) | 685 × 762 × 620 mm (27 × 30 × 24 in) |
| Net Weight | 45 kg (100 lbs) |
Applications
-
Professional studio and post-production monitoring
-
High-output live sound reinforcement
-
Dance music production requiring extreme low-frequency performance
-
Integration with JBL M2 Master Reference Monitors or CDL-series loudspeakers
Highlights
-
Integrated Class D amp with 1,000 W RMS output
-
Ported design ensures tight, efficient low-end
-
Flexible mounting for flown or stacked configurations
-
Extremely low frequency extension for cinematic and electronic music production
