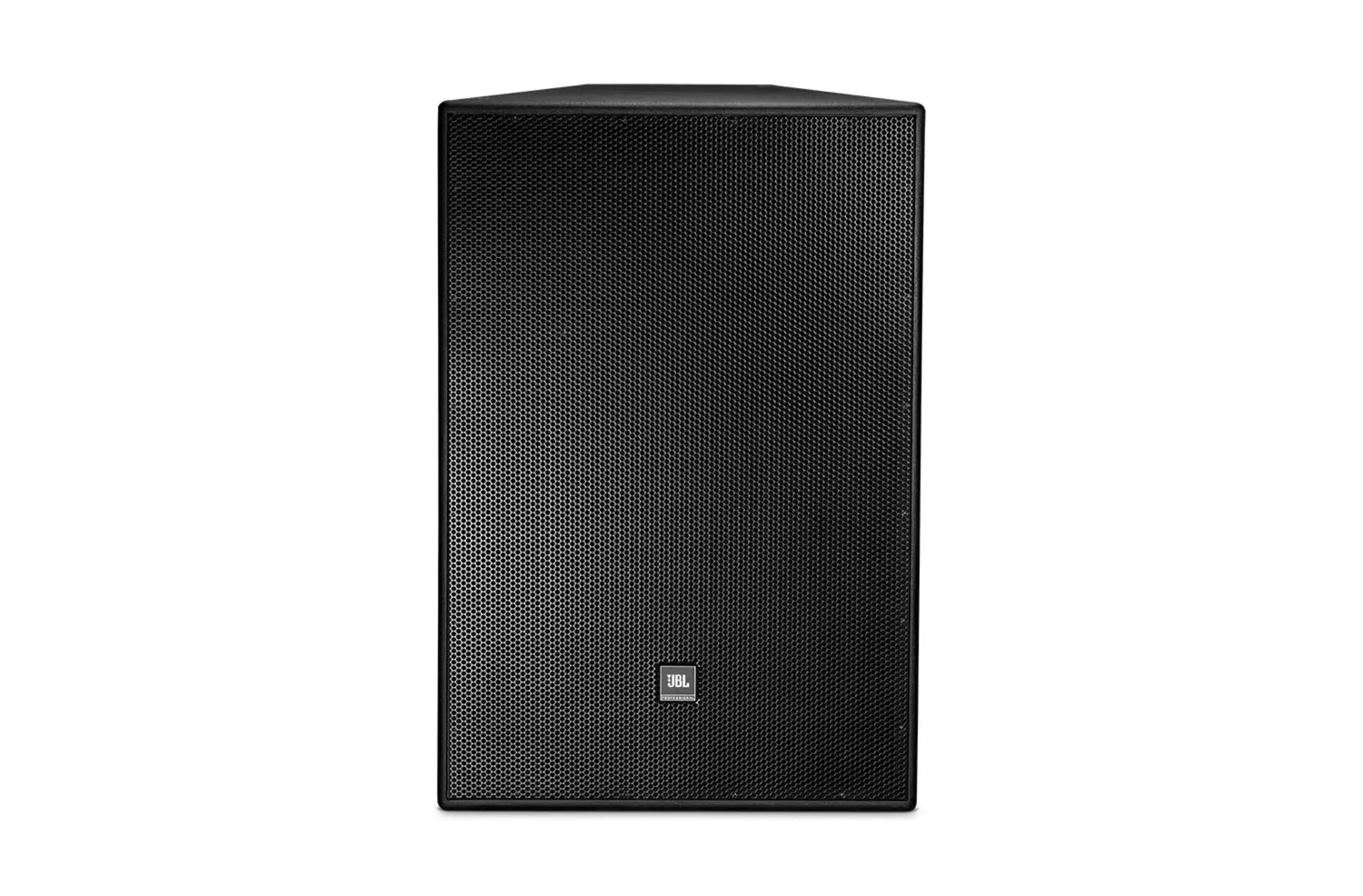

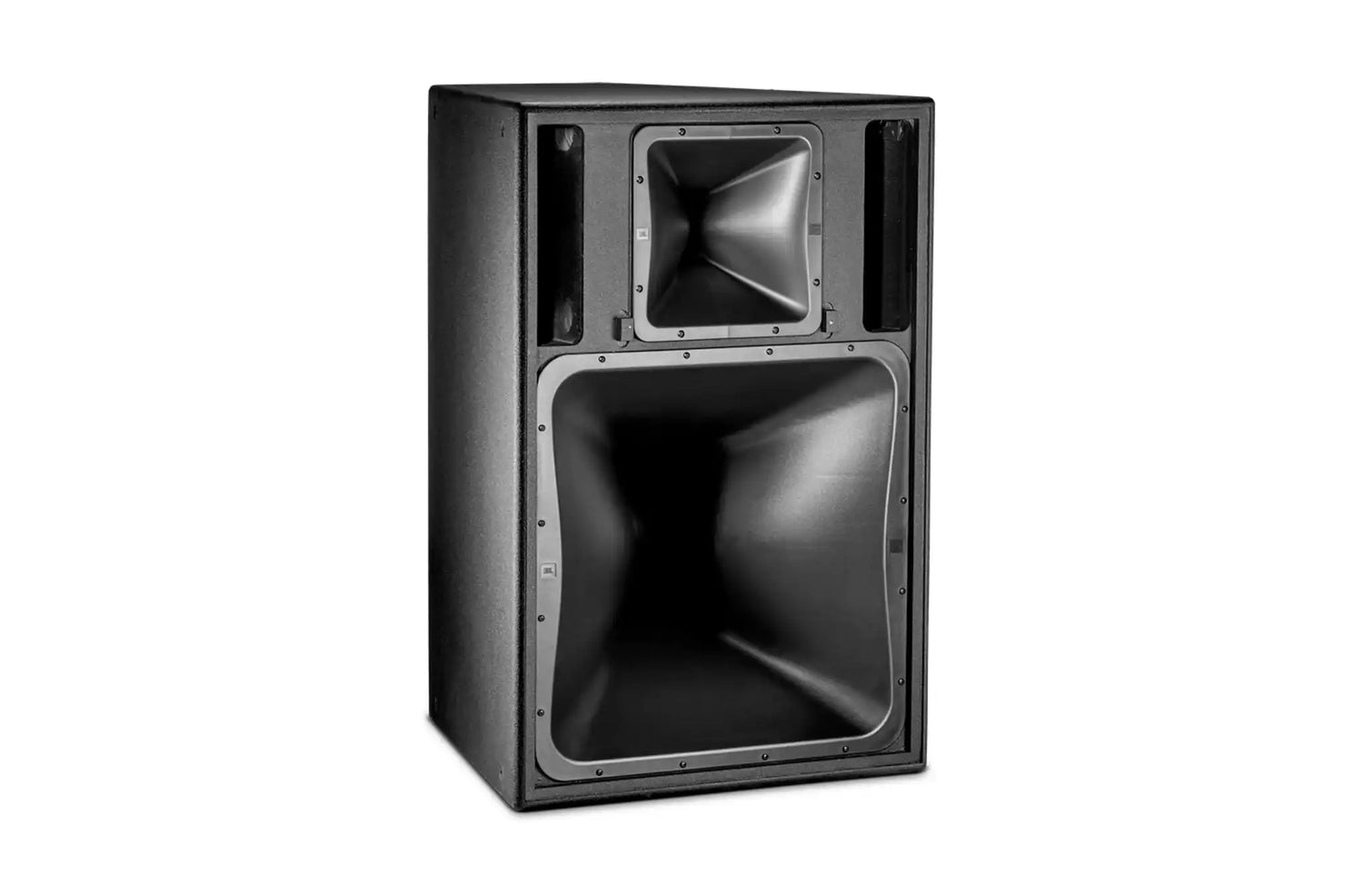

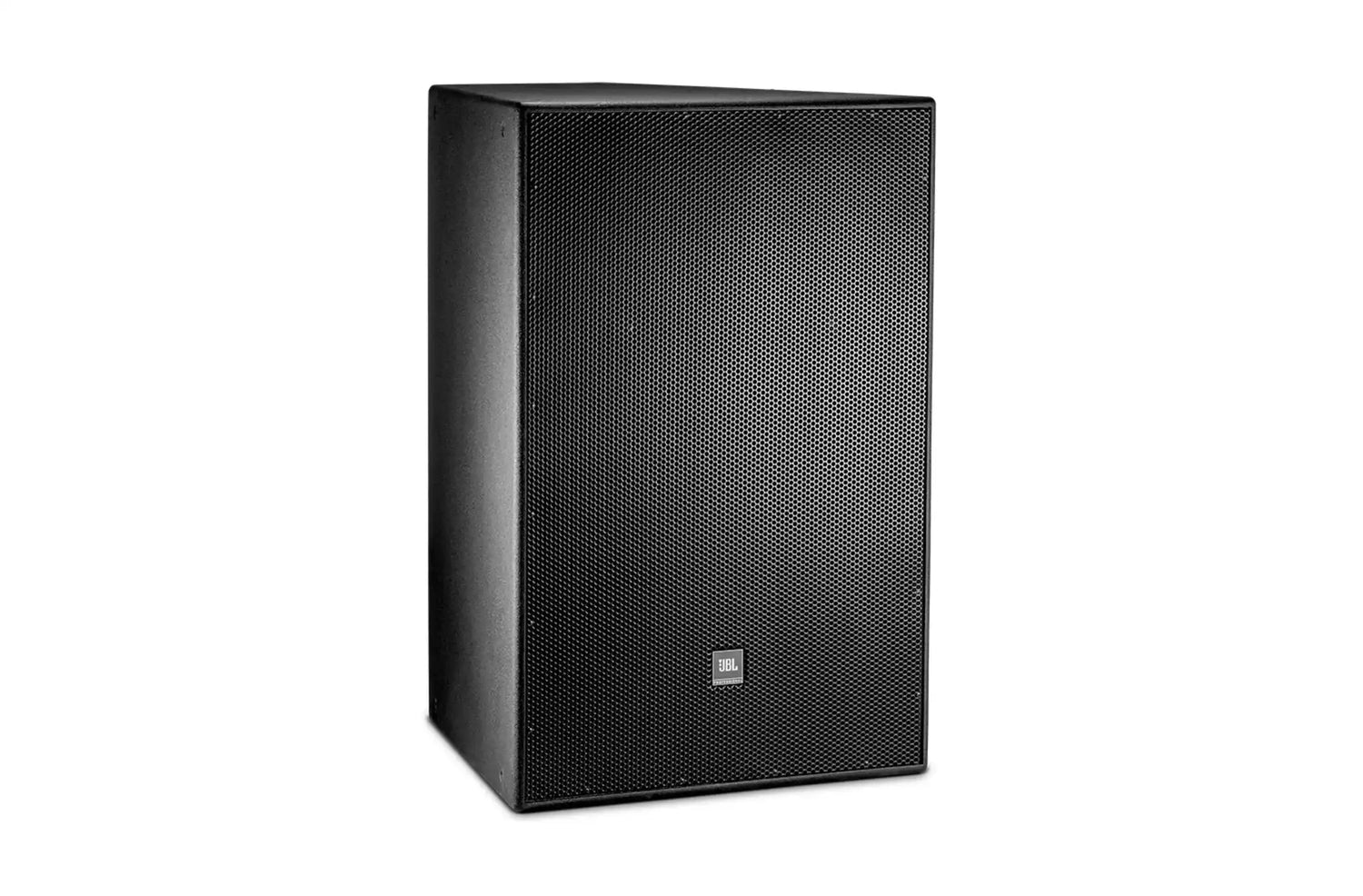

JBL PD6322/95 Dual 12-inch 3-Way Horn-Loaded Speaker – 90° x 50° Coverage

The JBL PD6322/95 is a professional-grade, dual 12-inch, 3-way horn-loaded loudspeaker designed for high-output applications requiring precise pattern control and extended low-frequency response. Built for demanding music and speech reinforcement, this full-range speaker produces over 104 dB SPL continuously at distances of 50 meters (165 ft), making it ideal for standalone use or integration into larger distributed systems. Its high-output, low-distortion drivers ensure exceptional clarity and coverage in venues of all sizes.

Equipped with dual 12-inch low-frequency drivers in a compact slot-loaded configuration, the PD6322/95 delivers deep bass down to 40 Hz. The CMCD™ cone midrange compression driver provides high sensitivity, low distortion, and smooth frequency response, while the large-format neodymium high-frequency driver ensures clear and intelligible projection for speech and music. Rotatable mid- and high-frequency waveguides allow flexible horizontal or vertical cabinet orientation, and large PT™ Progressive Transition™ waveguides maintain consistent pattern control even at high SPL levels.

The PD6322/95 features a sophisticated passive crossover network with switchable tri-amp or bi-amp modes, allowing precise tailoring for any sound system. Constructed from 16 mm Finnish birch plywood with trapezoidal side angles, the enclosure is both rugged and acoustically optimized. Optional WRC and WRX weather-resistant versions are available for outdoor and extreme environments. Input connections include NL8 Speakon® and barrier strip terminals, supporting parallel loop-through. With its combination of high-output drivers, advanced acoustic design, and durable construction, the PD6322/95 is a versatile choice for professional audio installations requiring power, precision, and reliability.

Features:

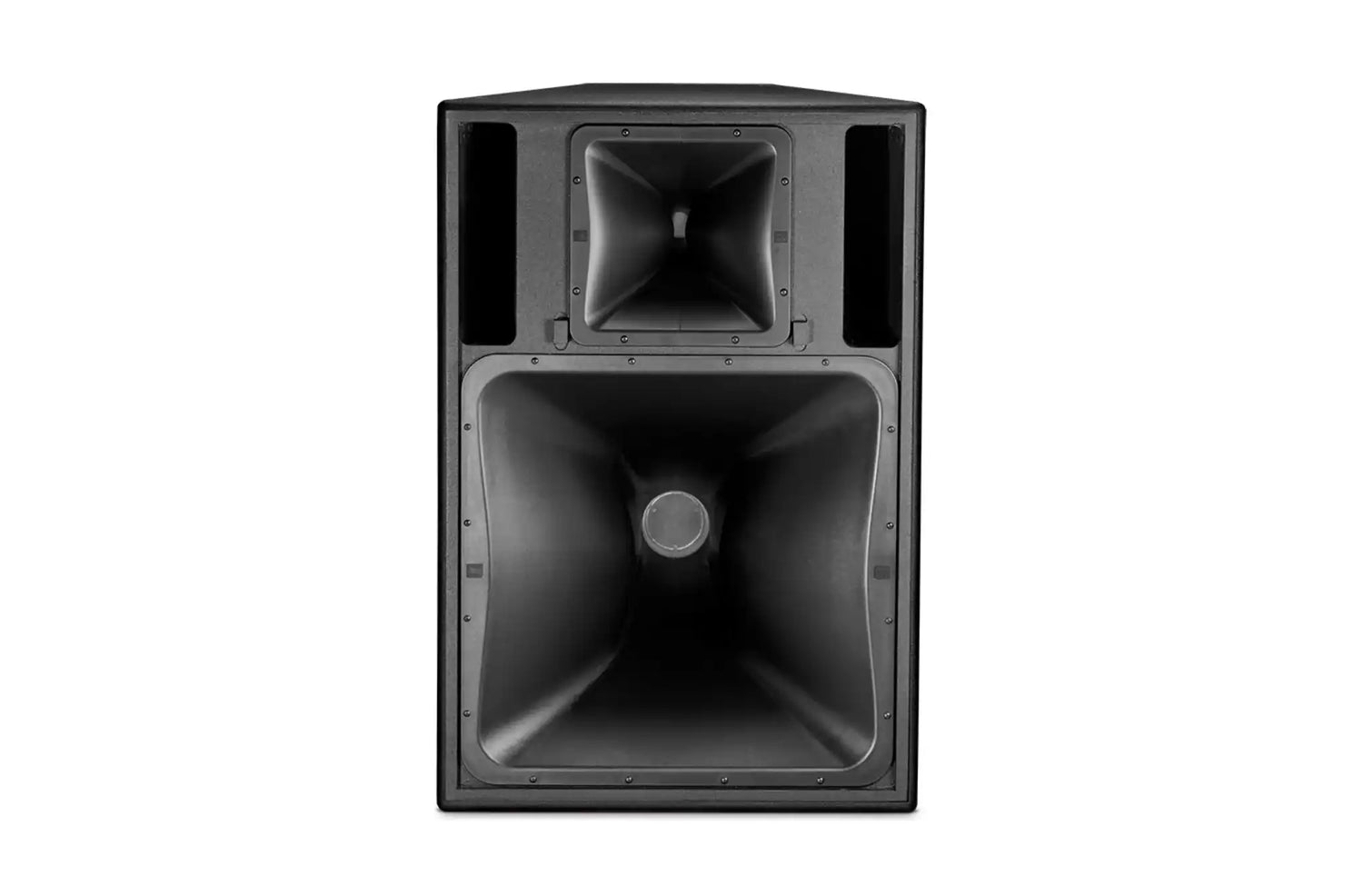

• Dual 12-inch LF drivers in slot-loaded configuration for low-frequency extension to 40 Hz

• CMCD™ cone midrange compression driver for high SPL and low distortion

• Large-format neodymium HF driver for clear high-frequency projection

• PT™ Progressive Transition™ waveguides for smooth frequency response and pattern control

• Rotatable mid/high waveguides for horizontal or vertical orientation

• Switchable tri-amp/bi-amp passive crossover network

• High sensitivity and continuous SPL capability

• Rugged 16 mm Finnish birch plywood trapezoidal enclosure

• Optional WRC/WRX weather-resistant versions

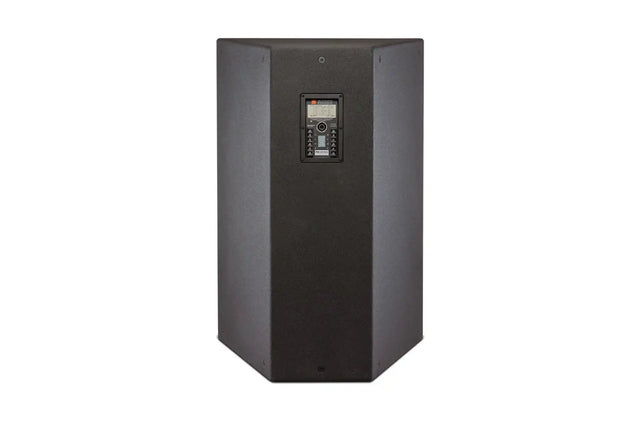

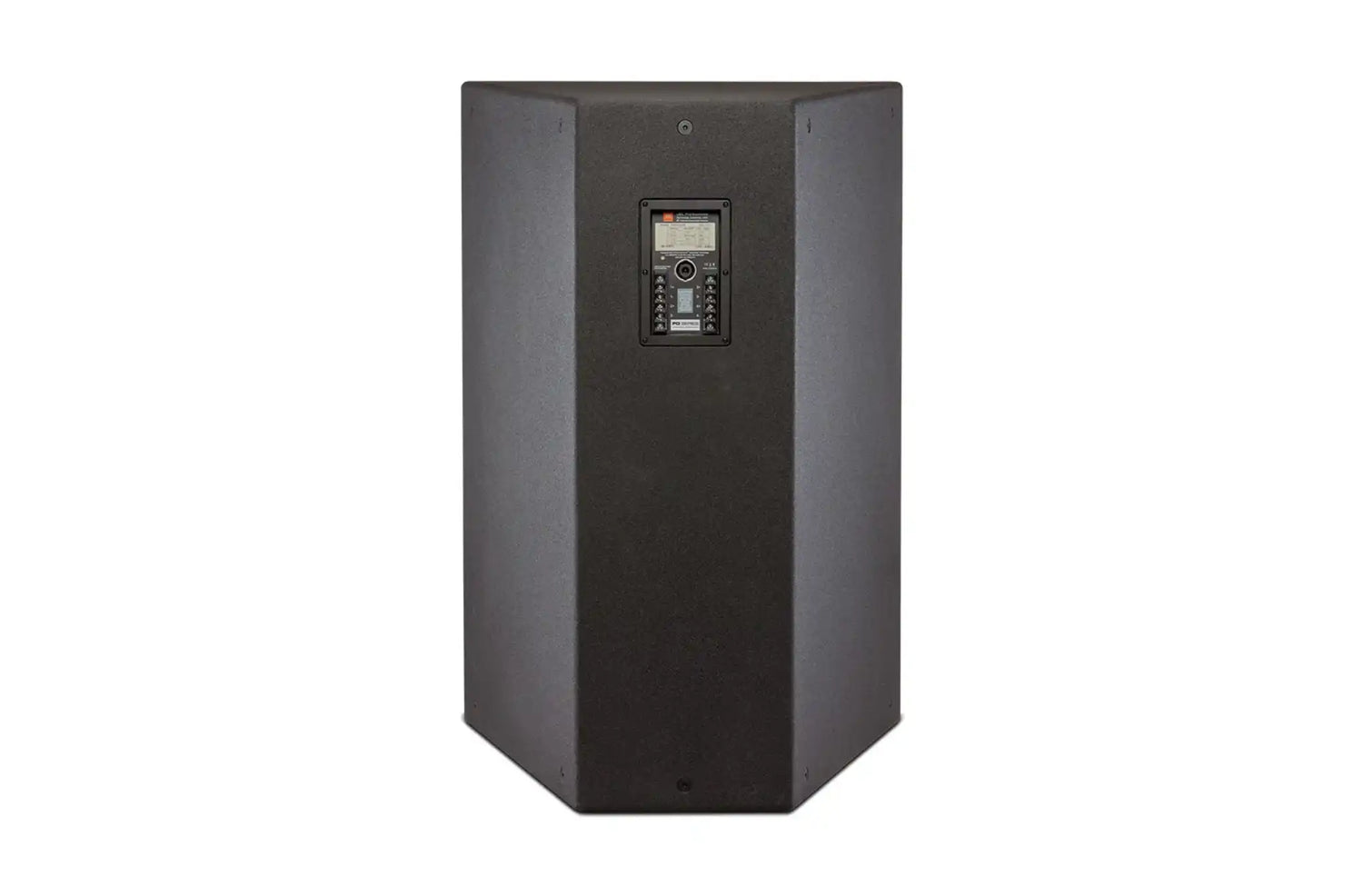

• NL8 Speakon® and barrier strip input connectors for loop-through

• 20 suspension points with M10 threaded hardware
