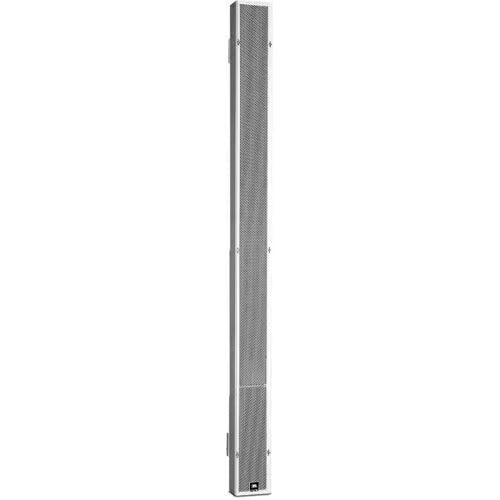

JBL IVX-587041 Intellivox DSX180 Active Beam-Shaping Column Loudspeaker (Amp Top, 115V)
JBL IVX-587041 Intellivox DSX180 Active Beam-Shaping Column Loudspeaker (Amp Top, 115V) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL IVX-587041 Intellivox DSX180 Active Beam-Shaping Column Loudspe...
The JBL Intellivox DSX180 is a digitally steerable, self-powered column loudspeaker designed to deliver exceptional clarity and speech intelligibility in smaller or moderately reverberant environments. Ideal for lecture halls, conference facilities, and transport hubs, the DSX180 can also be used as a fill system in larger Intellivox installations to provide coverage in shadow zones.
Equipped with ten custom-designed 4" loudspeakers and four 1" dome tweeters, the DSX180 achieves an extended frequency response up to 18 kHz for higher fidelity audio. An integrated 8-channel Class-D amplifier, powered by a sophisticated switched-mode power supply, ensures reliable performance and long-term durability.
With advanced 32-bit floating point DSP and Vertical Beam Shaping (DDS Technology), the DSX180 provides precise control of vertical coverage while maintaining wide horizontal dispersion. Additional features include parametric EQ, delay, AVC via built-in ambient mic, user-definable presets, and integral surveillance, making it suitable for both everyday sound reinforcement and life safety applications.
Key Features:
-
Digitally steerable, self-powered loudspeaker array
-
10 × 4" custom loudspeakers + 4 × 1" dome tweeters
-
Superb speech intelligibility in challenging environments
-
Slim, unobtrusive design
-
Extended frequency response up to 18 kHz
-
Vertical Beam Shaping (DDS Technology)
-
32-bit floating point DSP for precise audio control
-
Dual line inputs, volume control, delay (up to 20 seconds)
-
8-band parametric EQ and 8 user-definable presets
-
Automatic Volume Control (AVC) via built-in ambient mic
-
Upgradeable firmware and network-ready design
-
Integral surveillance functions for voice alarm applications
-
Compatible with simulation software (DDA, Catt-Acoustic, Odeon, EASE 4.3)
Specifications:
| Specification | Detail |
|---|---|
| Maximum Coverage Distance | Up to 25 m |
| Drivers | 10 × 4" full-range + 4 × 1" dome tweeters |
| Amplifier | 8-channel Class-D |
| DSP | 32-bit floating point |
| EQ | 8-band parametric EQ |
| Delay | Up to 20 seconds |
| Presets | 8 user-definable, password-protected |
| AVC | Built-in ambient mic |
| Frequency Response | Extended, up to 18 kHz |
| Inputs | Dual line inputs |
| Applications | Lecture halls, conference facilities, places of worship, transport hubs, atriums, museums, fill system for larger Intellivox setups |
| Simulation Support | DDA, Catt-Acoustic, Odeon, EASE 4.3 |
| Power Supply | Switched-mode, Amp Top, 115V |
| Design | Slim, unobtrusive column design |
