Martin Audio CDD Series 10" Passive Coaxial Differential Dispersion On-wall Loudspeaker (Black) - CDD10B
Martin Audio CDD Series 10" Passive Coaxial Differential Dispersion On-wall Loudspeaker (Black) - CDD10B is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Martin Audio CDD Series 10" Passive Coaxial Differential Dispe...

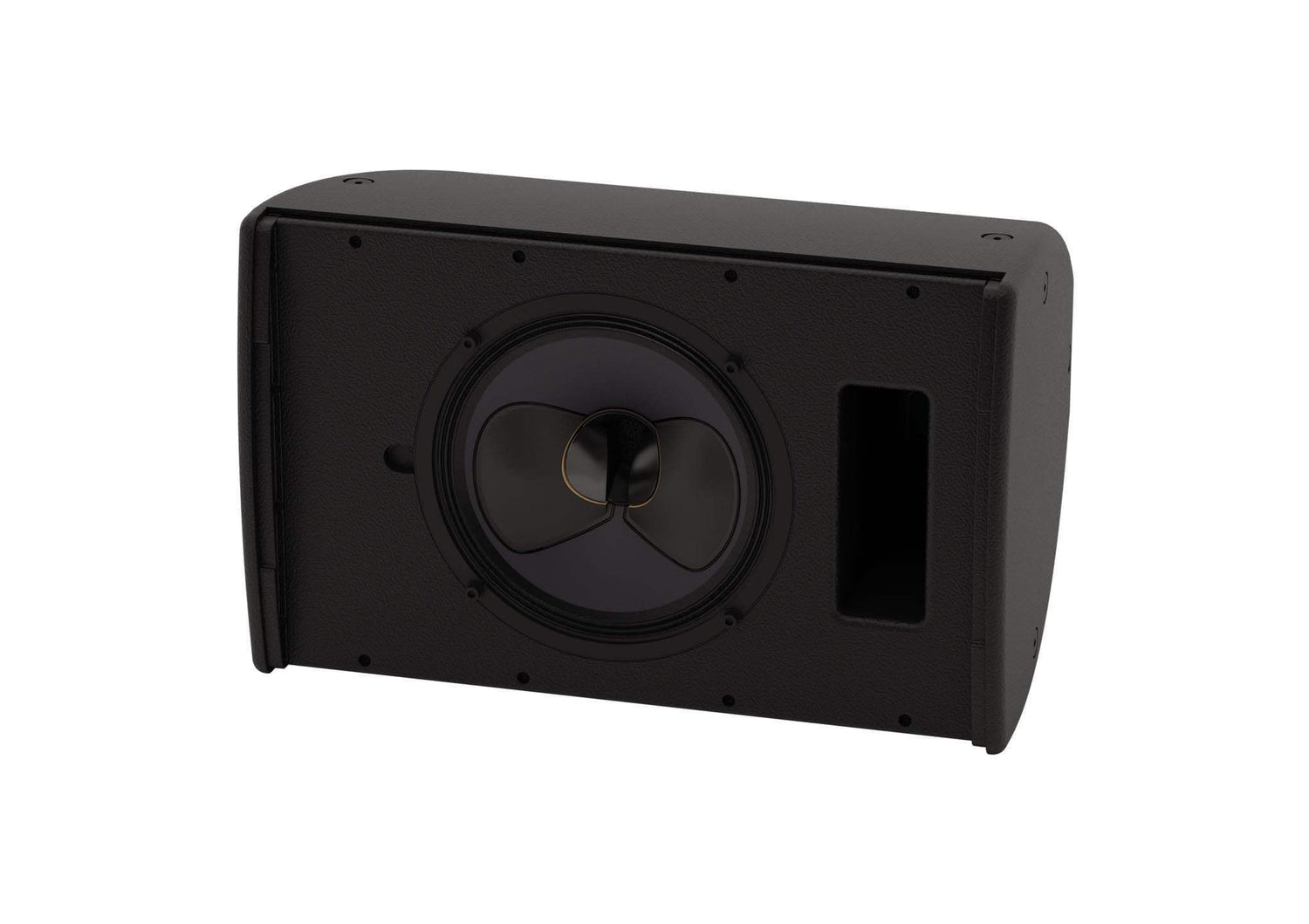

Martin Audio's CDD10B compact two-way passive loudspeaker system uses a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver. This very compact speaker fulfills the foreground requirements of clubs and bars and other varied architectural applications.
Pair the CDD10 with SX118 or CX218 subwoofer to enable it to be used as a small dancefloor system with astonishing power for its size.
Martin Audio CDD10B Applications
Live Music Clubs and Bars
Nightclubs
Bars and Restaurants
Museums and AV Spaces
Convention Centres
Hotels
Retail Outlets
Leisure Centres
Houses of Worship
Martin Audio CDD10B Includes
- CDD10B Compact two-way passive loudspeaker (Black)
Features
- Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Integral inserts for eyebolt suspension
- Black or white standard color options
Specifications
- Type: Compact, Coaxial Differential Dispersion passive two-way system
- Frequency Response: 65Hz-20kHz ± 3dB, -10dB @ 55Hz
- Driver:
- LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF
- HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- Rated Power: 250W AES, 1000W peak
- Sensitivity: 96dB
- Maximum SPL: 120dB continuous, 126dB peak
- Nominal Impedance: 8Ω
- Dispersion (-6DB): 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
- Crossover: 2kHz passive
- Enclosure: 28 litre, composite material
- Finish: Black or white textured paint
- Protective Grille: Black or white perforated steel with scrim cloth backing
- Connectors: Low profile 20A push-lock
- Pin Connections: Left to right: Input+, Input -, Link -, Link+
- Fittings:
- 6 x M8 inserts for wall bracket
- 10 x M8 fly points
- Dimensions (WxHxD): 12.7" x 20.2" x 12.2" (323 x 513 x 310 mm)
- Weight: 33.7lbs (15.3kg)
