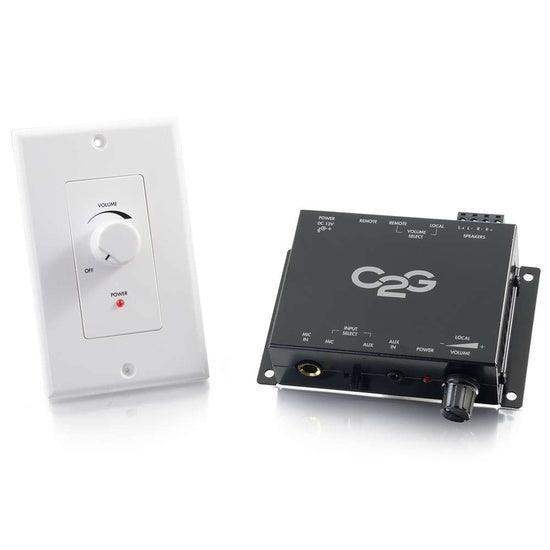

C2G CG40914 Compact Amplifier With External Volume Control

Regular price $201.99
Shipping calculated at checkout.
C2G  |  SKU: CG40914

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted



This amplifier has been designed to mount under a desk, in a podium, or to nearly any flat surface with the ability to control the volume from a decorative style wall plate. This simple discreet solution provides sound reinforcement from a concealable amplifier capable of filling a class room, meeting room, huddle space, or work shop with rich sound while offering a convenient remote control that can be installed within reach.
Send in the reinforcement
In a crowded room a speakers voice can quickly be lost to the noise. Ensure that every word can be heard with this simple audio reinforcement amplifier. Each word will be launched at the audience with 15 watts of power at 4Ω resistance providing distinct audio to all listeners.
Command amplitude
There is no need to search for controls or fiddle with settings when preparing to present. The remote control wall plate can be installed in the location that is most convenient to a presenter, ensuring a smooth start to any meeting.
Need more input
Dynamic presentations may require more than dazzling vocals to deliver the intended message. This amplifier incorporates a 3/4 inch microphone port and a 3.5mm stereo audio line level input, offering the ability to deliver reinforced content from an audio source such as a laptop or a triumphant oration leaving the audience astounded.
Effortless deployment
This amplifier simplifies audio reinforcement installation. No brackets or field terminations are required with this amplifier. Simply secure the amplifier with the built in mounting brackets to the desired location, attach speaker wires, and plug in a cat5e or cat6 cable to connect the remote control wall plate.



Additional Technical Specs

Electrical Specifications
•Output Power: 15W (RMS) Per Channel (@ RL = 4Ω)
• Total Harmonic Distortion: 0.06% (at RL = 8Ω, F = 4Ω)
• Minimum Load Resistance: 4Ω
• Chipset: (ST LM833DT, (TI) TPA3110D2PWPR
• Microphone Pre-Amplifier Gain: 40dB
• Power Source: 12V / 2A

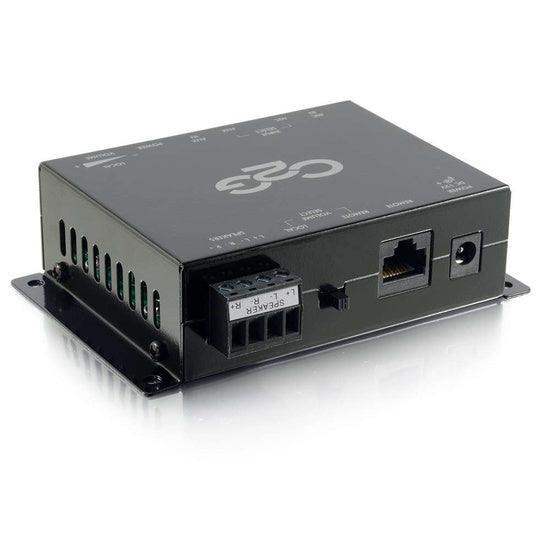

Amplifier Physical Specifications
• Amplifier Type: Class D
• Physical Dimensions (HxWxD) 31 x 113.5 x 97.6mm
• Material: Housing Steel
• Inputs: Dynamic Microphone or Stereo Audio Line Level
• Operating Temperature: 0° to +50°C / 20-80% RH (Non-Condensing)
• Storage Temperature: -20°to +70°C / 10-90% RH (Non-Condensing)
• Approvals: RoHS2, FCC

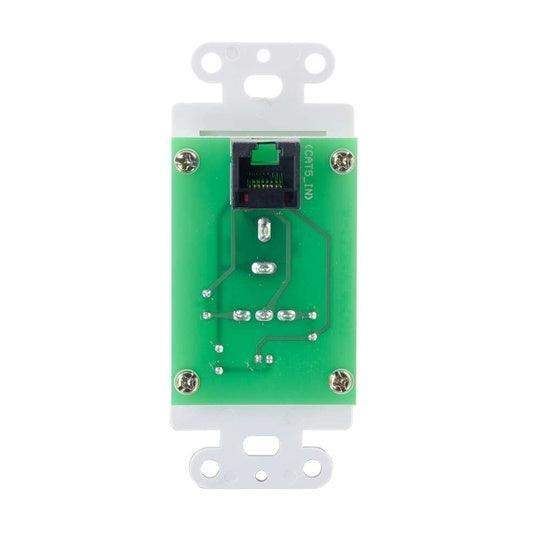

Volume Control Wall Plate Physical Specifications
•Wall Plate Overall Physical Dimensions (HxWxD) 114 x 69.5 x 6.5mm
• Material: ABS
• Volume Control Plate Overall Dimensions (HxWxD) 103 x 33.1 x 49.6mm
• Material: ABS
• Operating Temperature: 0° to +50°C / 20-80% RH (Non-Condensing)
• Storage Temperature: -20°to +70°C / 10-90% RH (Non-Condensing)
• Approvals: RoHS2, FCC

Package Contents
• Compact Amplifier
• Decorative Volume Control Wall Plate
• Face Plate Cover
• Power Adapter
• Bracket Mounting Screws 6-32 (25mm) qty. 2
• Wall Plate Mounting Screw M3.5 (8mm) qty. 3
• User Manual
