C2G C2G54542 USB-C® 10-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, VGA, Ethernet, USB, SD Card Reader, 3.5mm Audio and Power Delivery up to 100W - 4K 30Hz

The USB-C 10-in-1 Triple Display Docking Station upgrades your workspace to a new level of efficiency and convenience. Designed to transform your USB-C enabled laptop or tablet into a powerhouse of connectivity, this sleek docking station offers features that redefine how you work, whether in the office or working from home.

Triple display connectivity supports resolutions up to 720p (1280 x 720) at 60Hz to elevate your multitasking experience. Dual display resolutions increase to 1080p when connecting to any combination of the display ports. Single display resolutions go up to 4K (3840 x 2160) at 30Hz when connecting to the DisplayPort or HDMI port.

The USB-A ports support data transfer speeds up to 5Gbps and allow you to connect your favorite peripherals and accessories effortlessly, enhancing your setup's functionality. The USB-C port supports power delivery up to 100W to ensure your laptop stays fully charged and is ready for on-the-go. The integrated Ethernet port allows reliable internet connectivity with fast network access up to 1G. Whether you're a photographer or videographer, the included SD card reader makes it a breeze to access and share your files.

Maximum Supported Resolutions
3 Displays (HDMI, DisplayPort, and VGA): 720p (1280 x 720) at 60Hz

2 Displays (Any combo of HDMI, DisplayPort, or VGA): 1080p (1920 x 1080) at 60Hz

1 Display (HDMI): 4K (3840 x 2160) at 30Hz

1 Display (DisplayPort): 4K (3840 x 2160) at 30Hz

1 Display (VGA): 1080p (1920 x 1080) at 60Hz

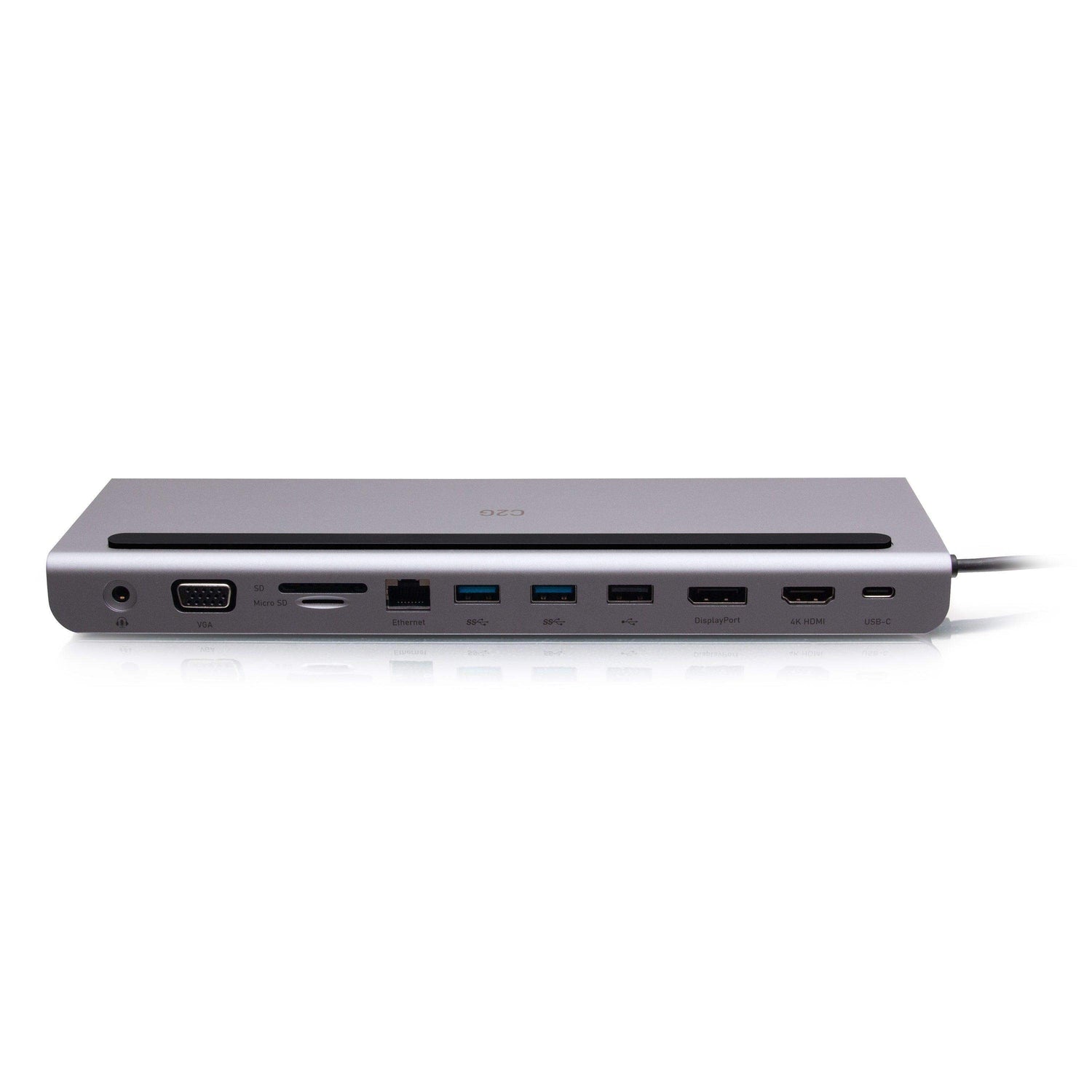

PORTS

1x 4K HDMI: Connect to a 4K display via the HDMI port.

1x 4K DisplayPort: Connect to a DisplayPort display via the DisplayPort port.

1x 1080p VGA: Connect to a VGA display via the VGA port.

1x USB-C Power Delivery: Power a laptop or tablet with up to 100W power delivery.

2x USB-A 3.0: Connect storage devices and transfer data up to 5Gbps.

1x USB-A 2.0: Connect storage devices and transfer data up to 480Mbps.

Gigabit Ethernet: Connect to local network for network and internet access.

Combo Audio Jack: Connect headphones, speakers, and headphone/microphone sets for audio output and input.

SD/MicroSD Card Reader: Insert memory card for data transfer up to 50Mbps.

FEATURES:

• Supports up to 100W of power delivery to keep your laptop charged
• Single display setup with HDMI or DisplayPort, supporting resolutions up to 4K, for viewing your screen content at full HD
• Single display with VGA, supporting resolutions up to 1080p
• Dual display setup, with any combo of HDMI, DisplayPort, or VGA, supporting resolutions up to 1080p
• Triple display setup, with HDMI, DisplayPort, and VGA, supporting resolutions up to 720p
• Reversible, symmetrical USB-C connector, so no guessing how to plug it into your laptop
• Compatible with Windows, Mac, and Linux operating systems
• 5 year warranty, for peace of mind – with the highest quality docking stations

Specs

Additional Technical Specifications

Electrical Specifications

• USB-C Power Delivery: 100W

Physical Specifications

• Operating Temperature: 0°C to +40°C
• Storage Temperature: -25°C to +70°C

Physical Characteristics

• Docking Station Dimensions: 260mm x 89.7mm x 23.4mm
• Material: Housing: Aluminum Alloy
• Housing Color: Pantone Gray
• Output: HDMI Female: HDMI Contact Pin: Gold Plated; Shell: SPCC, Nickel Plated; Insulation: LCP, Black
• Output: DisplayPort Female: DisplayPort Contact Pin: C2680, Gold Plated; Shell: SPCC, Nickel Plating; Insulation: LCP, Black
• Output: VGA Female: DisplayPort Contact Pin: C2680, Shell: SPCC, Nickel Plating; Insulation: PBT, Black
• Output: 2 x USB-A 3.0: Contact Pin: Copper Alloy; Shell: SUS, Nickel Plating; Insulation: LCP, Black/Blue
• Output: 1x USB-A 2.0: Contact Pin: Copper Alloy; Shell: SUS, Nickel Plating; Insulation: LCP, Black/Blue
• Output: USB-C 3.0: Contact Pin: Copper Alloy, Gold Plated; Shell: Stainless Steel, Nickel Plating; Insulation: LCP, Black
• Output: RJ45 Female: Contact Pin: Copper Alloy, Gold Plated; Shell: Nickel Plated
• Output: SD Card Reader: Contact Pin: Copper Alloy; Shell: Steel, Nickel Plated; Insulation: Hi-Temp Plastic, Black
• Output: Micro SD Card Reader: Contact Pin: Copper Alloy; Shell: Steel, Nickel Plated; Insulation: Hi-Temp Plastic, Black
• Regulatory Approvals: FCC, CE
• Product is CE Marked and Conforms to 2011/65/EU ROHS 2

Cable Specifications

• Cable Color: Black, PVC
• Cable Length: 500±10mm
• Cable Gauge: 34AWG
• Overall Dimension: 4.2mm
• Voltage Rating: 30V
• Dielectric strength: AC 500V/min
