Bose Professional 777189-0220 EdgeMax EM180 In-Ceiling Loudspeaker (White)
Bose Professional 777189-0220 EdgeMax EM180 In-Ceiling Loudspeaker (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Bose Professional 777189-0220 EdgeMax EM180 In-Ceiling Loudspeaker ...

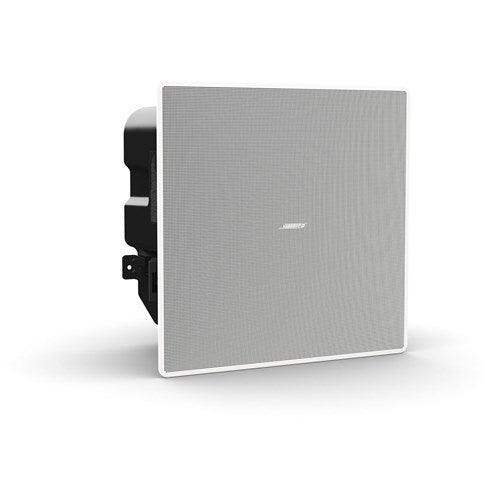

With proprietary PhaseGuide technology, the white Bose Professional EdgeMax EM180 In-Ceiling Loudspeaker creates room-filling coverage patterns typical of larger surface-mount speakers with architect-preferred aesthetics well suited for retail stores, restaurants, bars, concourse, and transportation facilities as well as hospitality venues and resorts, houses of worship, and conference centers.

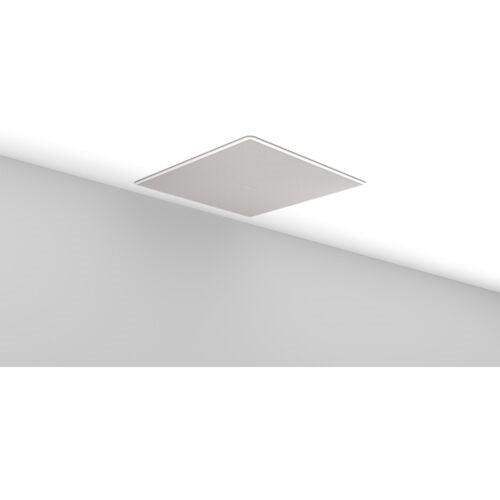

Designed to mount near wall/ceiling boundaries, the EdgeMax EM180 provides improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

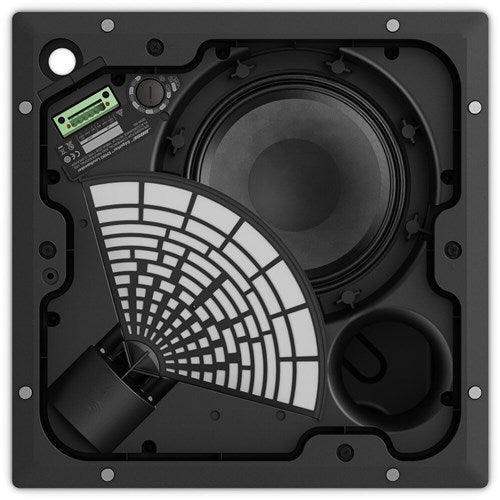

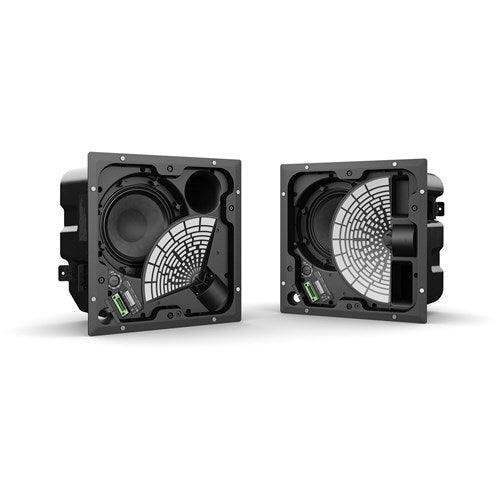

- PhaseGuide Technology: provides asymmetrical vertical pattern for room-filling coverage when mounting near wall/ceiling boundary
- Provides improved room visual appearance: for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers
- Nominal 180° horizontal coverage: designed for in-ceiling mounting along wall coverage zones
- High-frequency compression driver: for remarkable audio quality with a wide frequency response and coverage consistency versus typical dome tweeters
- 8" Woofer: wall-boundary loading provides extended bass impact
- 2-way passive crossover with 70/100V transformer

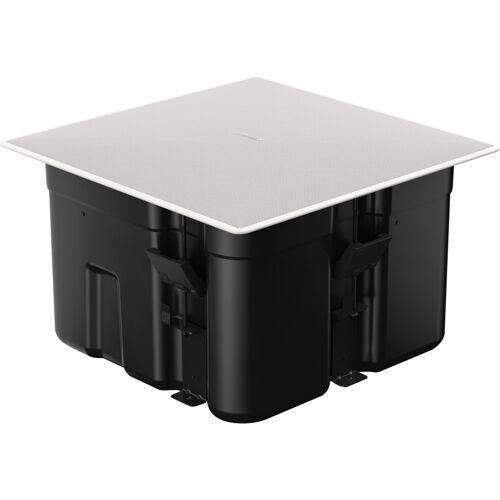

- Auto-hold, spring-loaded mounting arms for fast, easy installs
- Magnetically attached grille for quick access to wiring and tap settings
- UL1480A listing for air-handling (plenum) space installation
Features
- PhaseGuide for Near Wall/Ceiling
- Efficient 8" Woofer + Compression Driver
- Easy Installation
- 125W Continuous Program Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Dispersion (HxV): 180 x 75°
- 50 Hz to 18 kHz Frequency Response
- 120 dB Peak SPL
- Euroblock 6-Pin Connector
- Magnetic Grille for Easy Access
Specs
Bose Professional EM180 Specs
| Active or Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | 125 W RMS 250 W Program 500 W Peak |
| Recommended Amplifier Power | 250 W RMS |
| Constant Voltage / Transformer Taps | 70 V / 100 V |
| Impedance | 8 Ohms |
| HF Driver | 1 x Asymmetrical Horn Compression Driver |
| HF Voice Coil | 1.3" / 33.02 mm |
| LF Driver | 1 x 8" / 203.2 mm |
| LF Voice Coil | 1.5" / 38.1 mm |
| Frequency Range | 45 Hz to 20 kHz -10 dB |
| Frequency Response | 50 Hz to 18 kHz ±3 dB |
| Maximum SPL | 114 dB SPL (Continuous) 120 dB SPL (Peak) |
| Sensitivity | 93 dB SPL |
| Coverage Angle | 180° H x 75° V |
| Crossover | 1 kHz |
| I/O | 1 x Block Speaker Input (Locking) |
| Certifications | UL *as per Manufacturer |
| Color | White |
| Mounting | 1 x Ceiling Tile |
| Cutout Depth | 9.3" / 236.2 mm |
| Cutout Size | 13.6 x 13.6" / 345.4 x 345.4 mm |
| Dimensions | 15.4 x 15.4 x 9.8" / 391.16 x 391.16 x 248.92 mm |
| Weight | 22.2 lb / 10.1 kg (with Grille) |
| Package Weight | 30.65 lb |
| Box Dimensions (LxWxH) | 17.3 x 17.2 x 13.01" |
