TOA Electronics 2-In/6-Out Digital Speaker System Processor - DP-SP3 CU

$1,647.00 $2,039.00

Shipping calculated at checkout.

TOA | SKU: DP-SP3 CU

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

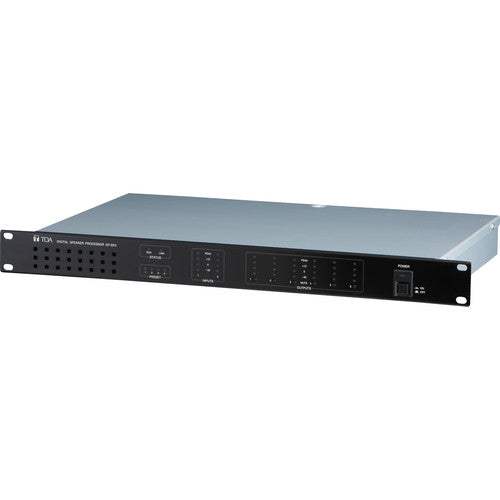

The TOA Electronics DP-SP3 2-In/6-Out Digital Speaker System Processor is a 1RU rackmountable signal processor designed for 3-way multi-amp systems in venues, banquet halls, houses of worships, restaurants, gymnasiums, and more. It features an equalizer, crossover, digital matrix, compressor, and delay. It also features an input pad, an analog output attenuator, an output mute control, front panel LED metering, 16 re-callable presets, an EQ characteristic library for optimization of TOA speakers, and contact input terminals. The unit includes a CAT5 connection for software control from a PC over a local area network.

The unit features 24-bit 96 kHz sampling resolution, 10 filters on each input, and 12 filters on each output for any combination of high/low shelving filters, all-pass, notch filters, CD horn equalizers, high/low pass filters, or parametric equalizer. It includes four contact input terminals for output volume control, output muting, and memory recall. The unit comes with a power cord, eight 3P removable terminal plugs, one 5P removable terminal plug, and a CD-ROM containing software for Windows.

Features

Equalizer and TOA Speaker EQ Library
Digital Crossover System and Matrix
Compressor and Delay
Input Pad
Analog Output Attenuator
Output Mute Control
Contact Input Terminals
PC Software Control Over LAN
24-bit 96 kHz Resolution
10 Filters/Input, 12 Filters/Output

Specs

Frequency Response	20 to 20,000 Hz ±1 dB
Sampling Frequency	96 kHz
Dynamic Range	110 dB or more
Distortion	0.03% or less 1 kHz, +4 dB+ input/output, 20 to 20,000 Hz BPF
Crosstalk	-80 dB or less, 1 kHz
Input	2x channels, +4 dB+ (max +24 dB+), 10 kΩ, electronically-balanced, removable terminal block (3P)
Output	6x channels, +4 dB+ (max +24 dB+), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P)
A/D Converter	24-bits
D/A Converter	24-bits
Preset	16

Signal Processing

Equalizer	Parametric Equalizer: 20 to 20,000 Hz: ±15 dB, Q: 0.267 to 69.249 Filter: High-Pass Filter: 20 to 20,000 Hz: 6 dB/oct, 12 dB/oct Low-Pass Filter: 20 to 20,000 Hz: 6 dB/oct, 12 dB/oct Notch Filter: 20 to 20,000 Hz: Q: 8.651 to 69.249 All-Pass Filter: 20 to 20,000 Hz: Q: 0.267 to 69.249 High-Shelving Filter: 5 to 20,000 Hz: ±15 dB Low-Shelving Filter: 20 to 500 Hz: ±15 dB Horn Equalizer: 20 kHz, 0 to 18 dB in 0.5 dB steps
Crossover	2 ways, 3 ways, 4 ways Crossover Filter: 20 to 20,000 Hz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct -15 to +12 dB, polarity switchable Delay: 0 to 170.656 ms in 0.01 ms steps
Compressor	Threshold: -20 to +20 dB in 1 dB steps Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1 Attack time: 0.2 ms to 5 s Release time: 10 ms to 5 s
Delay	0 to 682.656 ms in 0.01 ms steps
Matrix Type	2 x 6
Crosspoint Mixing Modes	-∞ to 0 dB in 1 dB steps
Function	Input PAD (-14 dB) control, analog output attenuator (-∞ to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers, input/output level indicator (4-point LED indicator), output MUTE switch x6
Contact	Input: 4 channels, open voltage: 5 VDC, short-circuit current: 5 mA, removable terminal block (5 P) Control Function: Preset memory selection, volume control, and mute
Network	Network 1/F: 1 channel of 10BASE-T/100BASE-TX (auto-negotiation) RJ45 connector, connection via switching hub Network Protocol: TCP/IP Connection Cable: Shielded Cat 5 or higher twisted pair cable for LAN (Cat. 5-STP or better) Maximum Cable Length: 100 m (109.36 yd) (between DP-SP3 and switching hub)
Operating Temperature	32 to 104°F (0 to +40° C)
Operating Humidity	90% RHS (no condensation)
Finish	Panel: Aluminum, hairline, back Case: Surface-treated steel plate
Power Source	100 to 120 VAC at 60 Hz
Power Consumption	25 W
Requirements	CPU: Pentium 4, 1.0 GHz or faster Memory: Windows XP - 512 MB or more, other OS - 1.0 GB or more Display: 1024 x 768 resolution or higher Free Hard Disk Space: 16 MB or more, however 600 MB or more is required for the 32-bit version or 1.5 GB or more for 64-bit version when .NET framework is not yet installed Optical Drive: CD-ROM drive Network Adapter: 10BASE-T or faster connection Windows XP Service Pack 3 or later, Windows Vista (32/64-bit) Service Pack 1 or later, Windows 7 (32/64-bit) Required Component: .NET Framework 4 Client Profile
Dimensions	18.98 x 1.73 x 11.38" (482 x 44 x 289 mm)
Weight	6.83 lb (3.10 kg)
