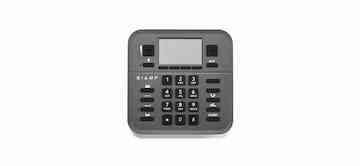

Biamp Tesira Hardware Dialer - 911.0437.900
The Tesira HD-1 is a dialer for Tesira audio DSPs, providing access to all dialing functions within Tesira. With the look and feel of a traditional telephone dial pad, the HD-1 makes installations less expensive, easier to commission, and less complicated to operate. The four context (soft) buttons can be assigned to control functions in Tesira software. The HD-1 is compatible with Tesira SERVER and SERVER-IO with STC-2 or SVC- 2 cards installed, as well as all models of TesiraFORTÉ VT, TesiraFORTÉ VT4, and TesiraFORTÉ X devices.
The Tesira HD-1 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Telephony control over Ethernet
- 12-button dial pad
- Redial, call volume adjustment, mute, hold, and numerous other telephony functions
- Four context (soft) buttons can be assigned to control functions
- Propagates privacy mute state to other devices
- Internal universal power supply
- 100 programmable speed dial numbers; entries can be updated directly on the phone or in software
- Powered by PoE (IEEE 802.3at Class 1, 4 watts)
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
| GENERAL | |
| Height | 1.57 inches (40 mm) |
| Width | 5.7 inches (145 mm) |
| Depth | 5.7 inches (145 mm) |
| Weight | 0.9 lbs. (0.4 kg) |
| Display | 2.7 inch (69 mm) LCD |
| ENVIRONMENTAL | |
| Operating Environment | Altitude: 0-10,000 ft (0-3000m) MSL |
| Ambient Operating Temperature Range | 32 - 104° F (0 - 40° C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-10,000 ft (0-3000m) MSL |
| NETWORK | |
| Network Connection(s) | Network Connection: RJ-45 with Ethernet cable (CAT5, CAT5e, CAT6, or CAT7) |
| Control | Data/Control Cable Length: Up to 330ft (100m) Control Programming: Tesira Design Software Compatible with: Tesira SERVER and SERVER-IO with STC-2 or SVC-2 cards installed; TesiraFORTÉ VT (all models); TesiraFORTÉ VT4 (all models) TesiraFORTÉ X (all models) Buttons: 12-key standard dial pad; 4 context (soft) buttons; 13 dedicated buttons |
| CERTIFIED SOLUTIONS | |
| TAA Compliant | TAA Compliant |
| Certifications | FCC Part 15B (USA) CE Marked* (Europe) UL and C-UL (USA and Canada) RCM (Australia) EAC (Eurasian Customs Union) RoHS Directive (Europe) KCC (Korea) *Requires PoE insertion device to be CE marked |
