Atlas Sound ALA20TAW Passive 1000W 3" 2-Way Line Array Speaker System (White)
Atlas Sound ALA20TAW Passive 1000W 3" 2-Way Line Array Speaker System (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound ALA20TAW Passive 1000W 3" 2-Way Line Array Speaker...

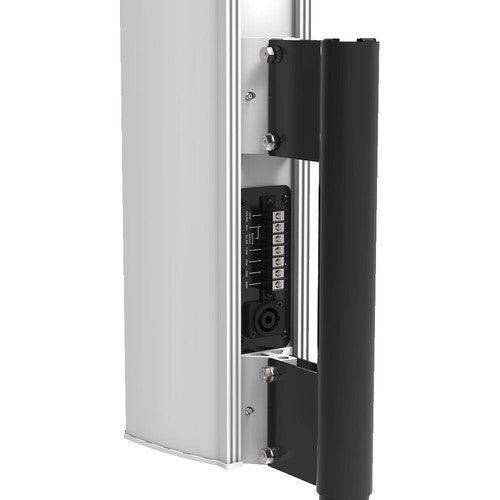

The EN54-24 certified ALA20TAW column line array loudspeaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20TAW's transducer configuration combines twenty tight packed 3" (76mm) full range drivers and six 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.
Features
- Passive Full-Range Column Line Array
- 1000W Peak
- 20 x LF Transducers, 6 x HF Tweeters
- Barrier Strip and NL-4 speakON Input
- 70.7 and 100V Transformer Taps
- 110 Hz to 20 kHz Frequency Response
- 127 dB Max SPL
- EN54-24 Certified
- Extruded Aluminum Enclosure
- Includes Wall Mounting Bracket
Specs
| General Information | |
| Manufacturer | AtlasIED |
| Manufacturer Part Number | ALA20TAW |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | AtlasIED |
| Product Model | ALA20TAW |
| Product Name | ALA20TAW Passive Column Line Array Loudspeaker |
| Product Type | Speaker |
| Technical Information | |
| Crossover Type | 2-way |
| RMS Output Power | 500 W |
| PMPO Output Power | 1000 W |
| Tweeter Driver Size | 0.87" |
| Full Range Driver Size | 2.99" |
| Minimum Frequency Response | 110 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 6 Ohm |
| Sensitivity | 97 dB |
| Ingress Protection (IP) Rating | IP33C |
| Physical Characteristics | |
| Product Color | White |
| Form Factor | Wall Mountable |
| Pole Mount | |
| Miscellaneous | |
| Package Contents | ALA20TAW Passive Column Line Array Loudspeaker Wall Mount Bracket |
| Application/Usage | House of Worship |
| Transportation | |
| Retail Space | |
| Conference Room | |
| Lecture Hall | |
| Gymnasium | |
| Convention Center | |
| Museum | |
| Stadium | |
| Multipurpose | |
| Warranty | |
| Limited Warranty | 5 Year |
