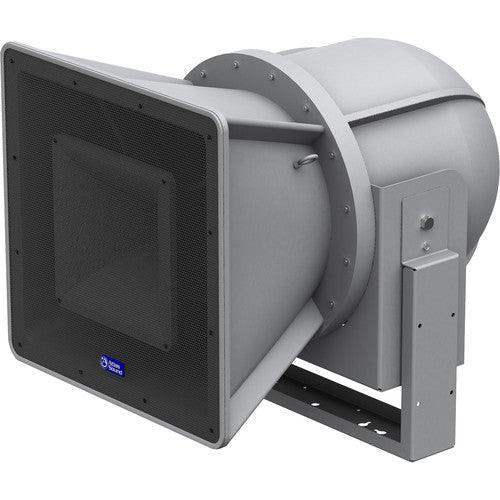

Atlas Sound AH54-15-BSG 15" 2-Way Stadium Horn Speaker System 50° x 40°
Atlas Sound AH54-15-BSG 15" 2-Way Stadium Horn Speaker System 50° x 40° is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound AH54-15-BSG 15" 2-Way Stadium Horn Speaker System ...
The 15" 2-Way Stadium Horn System from Atlas Sound is a 250W loudspeaker that provides clear ssound in the most challenging environments, including large auditoriums and sports fields. This 15" speaker has a square 65° x 65° coverage pattern that's ideal for down-firing applications like in convention centers.
The horn's multiple-screen configuration prevents moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth; there is a secondary screen in front of the high-frequency driver, and a third tightly-perforated screen, which protects the 15" cast frame woofer. A "weep" hole on the back of the large horn "bell" allows evaporation of any condensation that might build up internally. This stadium horn is ideal for directional sound distribution where full-range reproduction, maximum intelligibility, and high sound pressure levels are required.
Features
- Multiple-screen configuration prevents moisture from damaging internal components
- A "weep" hole on the back of the large horn "bell" allows evaporation of built-up internal condensation
- Three forged eyebolts are included for suspended installation
- Constant-directivity design offers controlled coverage of 65° horizontal by 65° vertical (2 kHz octave band)
- Driver complement includes 15" cast frame woofer with a concentrically-mounted 1" exit compression driver coupled to a 65°H x 65°V HF horn
- Easy, weather-resistant connection via a convenient recessed terminal block located on the bottom of the loudspeaker
- Efficiency rating of 104 dB (1W/3.3')
- Heavy-duty mounting bracket (included) allows for easy installation to a flat surface
- Nominal system impedance of 8-ohm
- 70.7V operation via optional Atlas Sound AF140 transformer
- Maximum output of 128 dB (rated power at 3.3')
Specs
| General Information | |
| Manufacturer | AtlasIED |
| Manufacturer Part Number | AH54-15-BSG |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | AtlasIED |
| Product Model | AH54-15-BSG |
| Product Name | 15 inch 2-Way Stadium Horn System 50° x 40° |
| Product Type | Speaker |
| Technical Information | |
| Crossover Type | 2-way |
| RMS Output Power | 250 W |
| Woofer Driver Size | 15" |
| Minimum Frequency Response | 75 Hz |
| Maximum Frequency Response | 14.50 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 104 dB |
| Physical Characteristics | |
| Woofer Diameter | 15" |
| Miscellaneous | |
| Package Contents | 15 inch 2-Way Stadium Horn System 50° x 40° 3 x Forged Eyebolts Heavy Duty Stainless Steel Mounting Bracket |
| Warranty | |
| Limited Warranty | 5 Year |
