Atlas Sound AA50PHD 4-Input 50W BGM Mixer Amplifier
Atlas Sound AA50PHD 4-Input 50W BGM Mixer Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

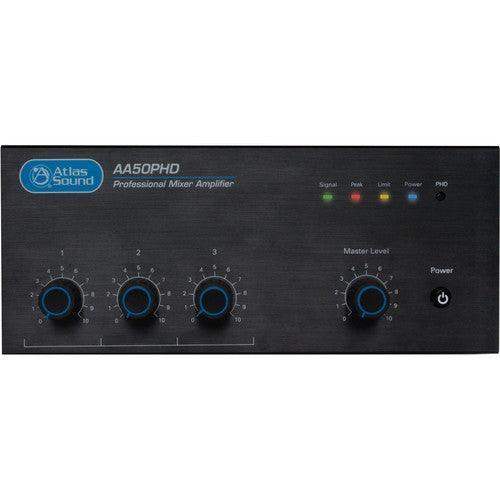

Atlas Sound AA50PHD 4-Input 50W BGM Mixer Amplifier
What Sets the AAPHD Series Apart?
The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8?, and the loudspeaker wire is free from shorts.
The unit also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use a remote wall plate (AtlasIED model WPD-RISRL) and allow the user to select the input and adjust the volume from that wall plate up to 200 feet from the amplifier.

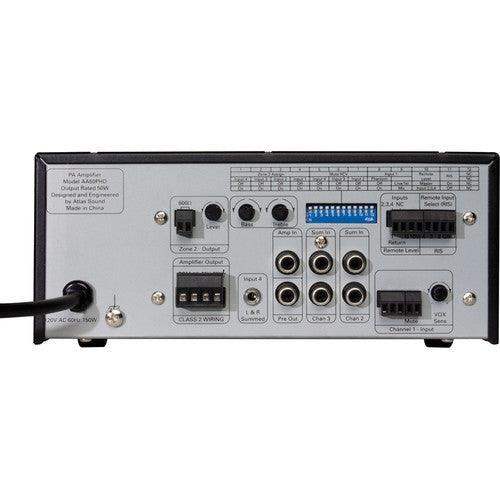

The AA50PHD provides 50-watts output power into 25V, 70.7V, or 4? loudspeaker systems. Rear panel DIP switch allows for creation of Zone 2 output using either Input 1, 2, 3 or 4. Unit can also be set-up to mute Inputs 2, 3, and 4 based on signal from Input 1 for paging applications where other input sources need to be muted during a page. Input 1 is either Mic or Line input selectable and Phantom Power is an option when using Input 1 Mic input.
Features
- 50W into 25V/70.7V and 4 Ohms Loads
- 4x Inputs with PHX and RCA Options
- Rear-Mounted DIP Switch for Mute Options
- Preamp for External Processing
- Stereo-Summed Inputs
Specs
| Form Factor/Type | |
| Number of Channels | |
| Amplifier Power Rating | |
| Load Impedance / Voltage |
| Frequency Response | |
| Input Sensitivity | |
| I/O Impedance | |
| Output Level | |
| SNR | |
| THD+N |
| EQ |
| Audio I/O | |
| Other I/O | |
| Speaker Outputs | |
| Phantom Power |
| AC Input Power | |
| AC Power Connector | |
| Current Consumption | |
| Power Consumption |
| Dimensions | |
| Weight |
