Atlas Sound AA240G AMP, MIXER 6CH INPUT 240W with Global Power Supply
Atlas Sound AA240G AMP, MIXER 6CH INPUT 240W with Global Power Supply is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

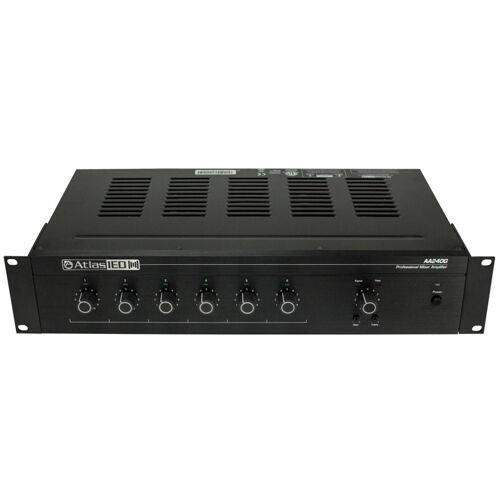

Atlas Sound AA240G AMP, MIXER 6CH INPUT 240W with Global Power Supply
The AA240G is a 240 Watt six input multi load impedance mixer amplifier that is engineered with many unique features to assist the contractor or installer in today's commercial business audio environment. It is designed for distributed paging and background music (BGM) systems, small to medium sound masking systems, and in applications where music on hold (MOH) plus paging is required.

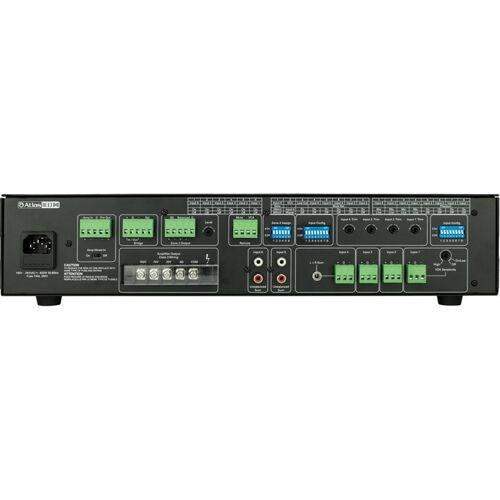

With four microphone / line inputs and two stereo line input, the A240G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. This mixer amplifier features VOX (Voice Operated Mute) and contact closure muting, tone control, Line out and Zone 2 Output. The AA240G offers a very unique Bridge In / Out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. VCA remote level control circuitry is included which may be assigned to the BGM input or globally for the entire amplifier.
The output power of output power of the AA240G will match nicely with AtlasIED FAP, SM, SD, and GD Series loudspeakers. 25V, 70.7V, 100V, and 8? outputs are provided
Specs
| General Information | |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | AA240G |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | AtlasIED |
| Product Model | AA240G |
| Product Name | 6-Input, 240-Watt Mixer Amplifier |
| Product Type | Amplifier |
| Technical Information | |
| Minimum Frequency Response | 50 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 8 Ohm |
| Audio | |
| Audio Channels | 6 |
| RMS Output Power | 240 W |
| Interfaces/Ports | |
| Number of Analog Audio Inputs | 4 |
| Controls/Indicators | |
| Remote Control | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Operating Power Consumption | 400 W |
| Miscellaneous | |
| Package Contents | 6-Input, 240-Watt Mixer Amplifier VCA remote level control |
| Warranty | |
| Limited Warranty | 3 Year |
