Atlas Sound TSD-PA252G 25W x 2 @ 4 OHMS Two Channel Power Amplifier

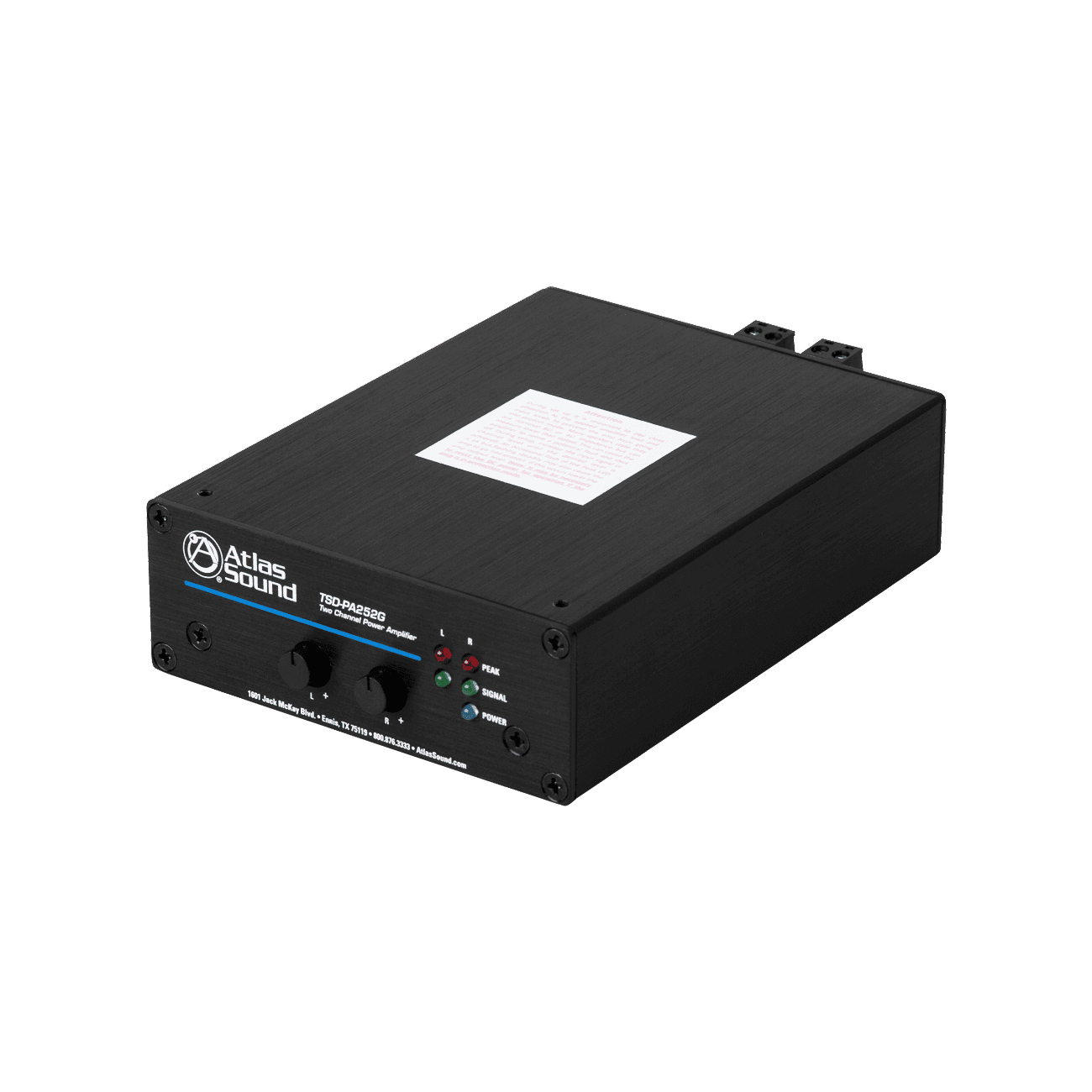

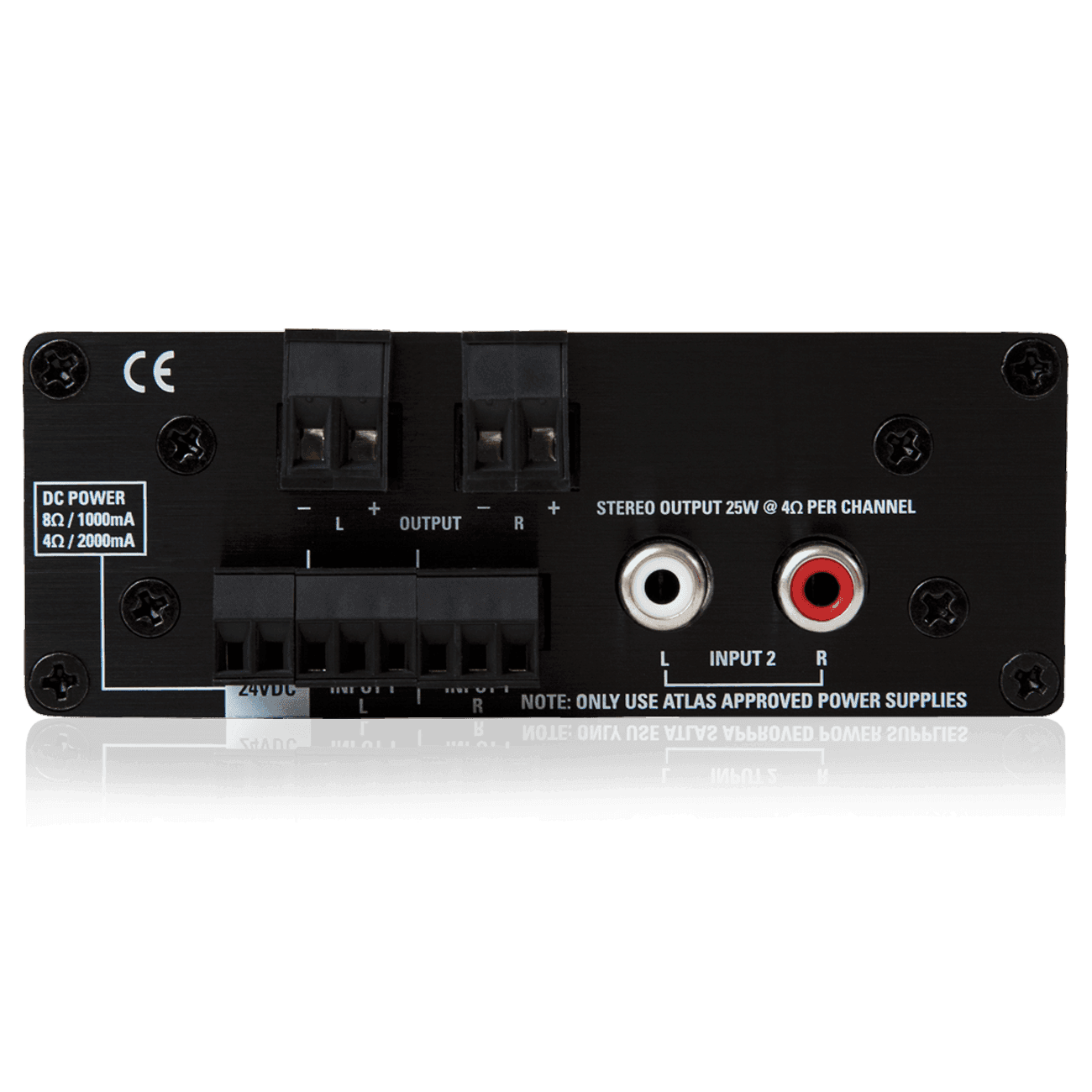

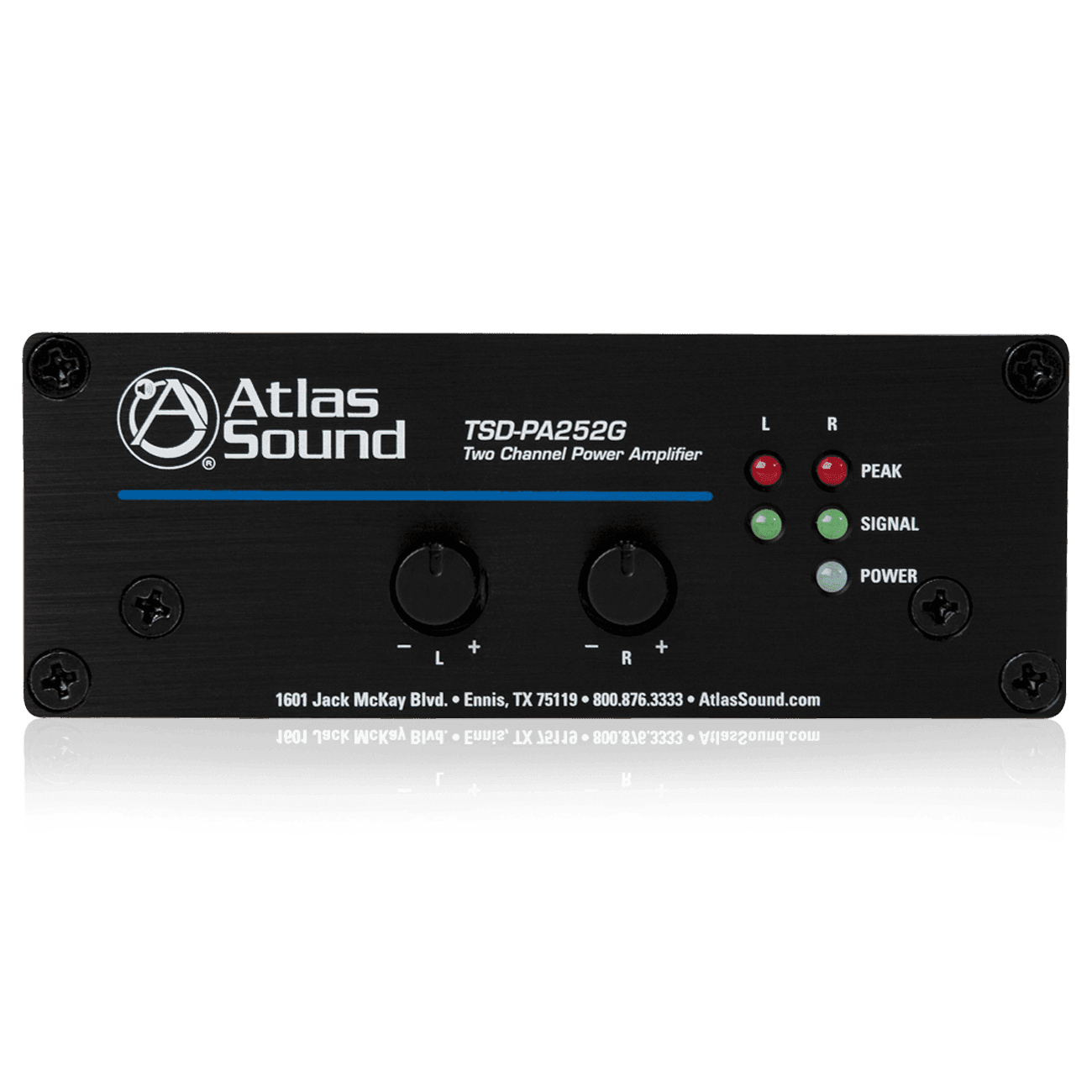

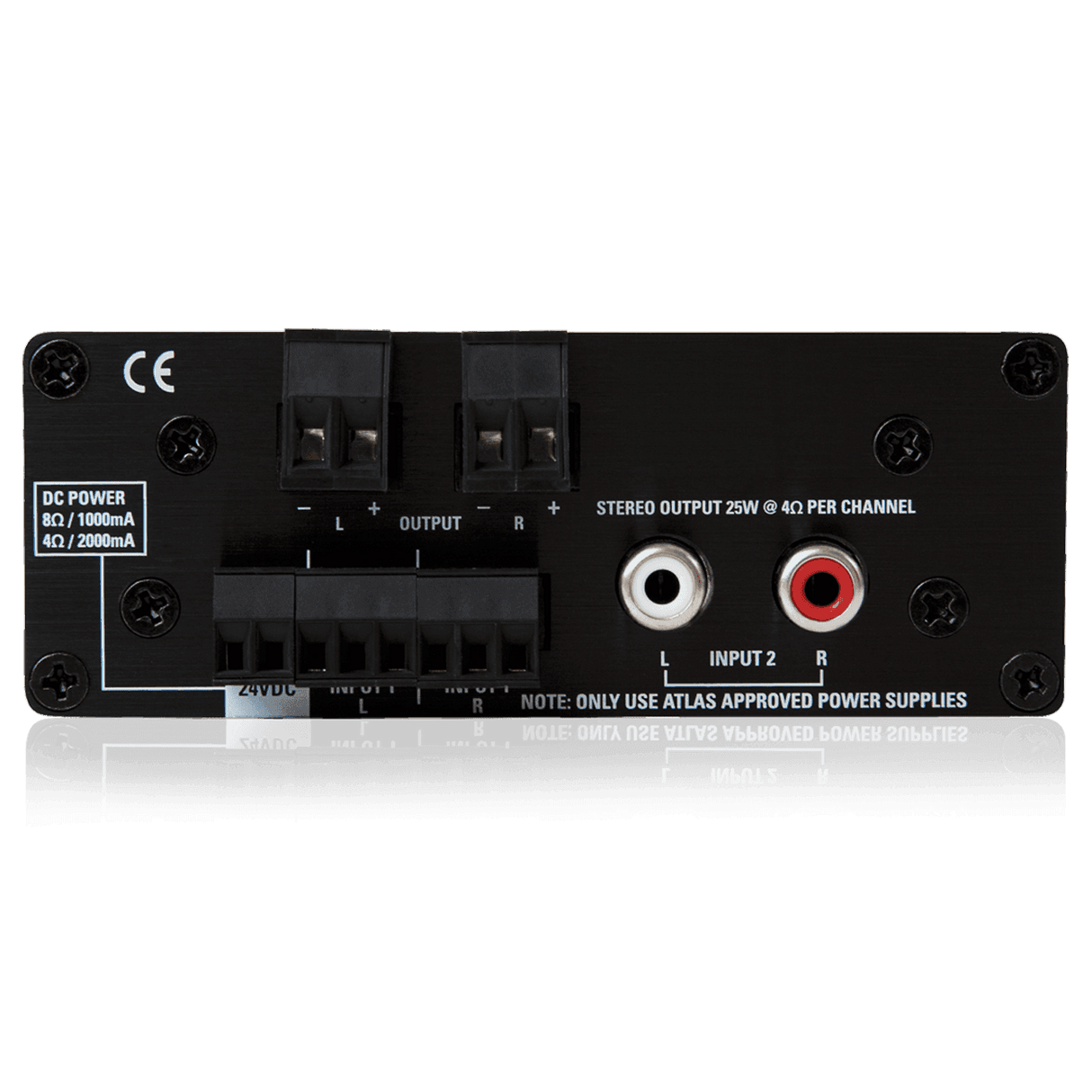

The TSD-PA252G is a reliable, cost effective 4? stereo amplifier well suited for higher power amplification requirements. Output is 25W per channel at 4? or 50W bridge mono at 8?. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.
Features
-
25W per Channel into 4Ω
-
Two (2) Balanced Inputs
-
Dual RCA Inputs
-
50W Bridged into 8Ω
-
Removable Phoenix Style I/O Connectors
-
Input Signal & Peak Indicator LEDs
-
Security Covers Included for All Front Panel Controls
-
Energy Efficient
-
Power Supply Sold Separately
Specs
| Frequency Response | 20Hz - 20kHz |
| Power Output | 25W x 2 CH @ 4Ω, 50W x 1 CH @ 8Ω Bridged |
| Balanced Input Impedance | 10KO Balanced, 5KO Unbalanced |
| THD | .2% & 1kHz |
| 24VDC Power Requirements | 2000mA |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 5.2" (13.2 cm) |
| Voltage Compatibility | 24V |
