Atlas Sound TSD-PA122G 12W x 2 4 2-Channel Power Amplifier
Atlas Sound TSD-PA122G 12W x 2 4 2-Channel Power Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

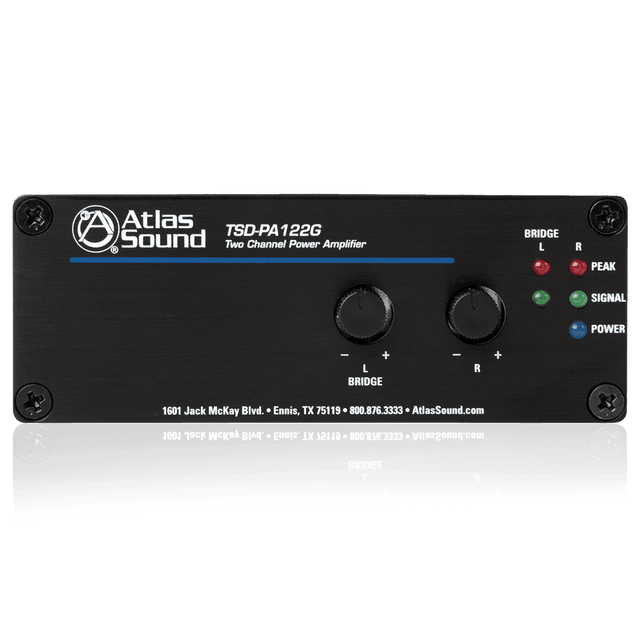

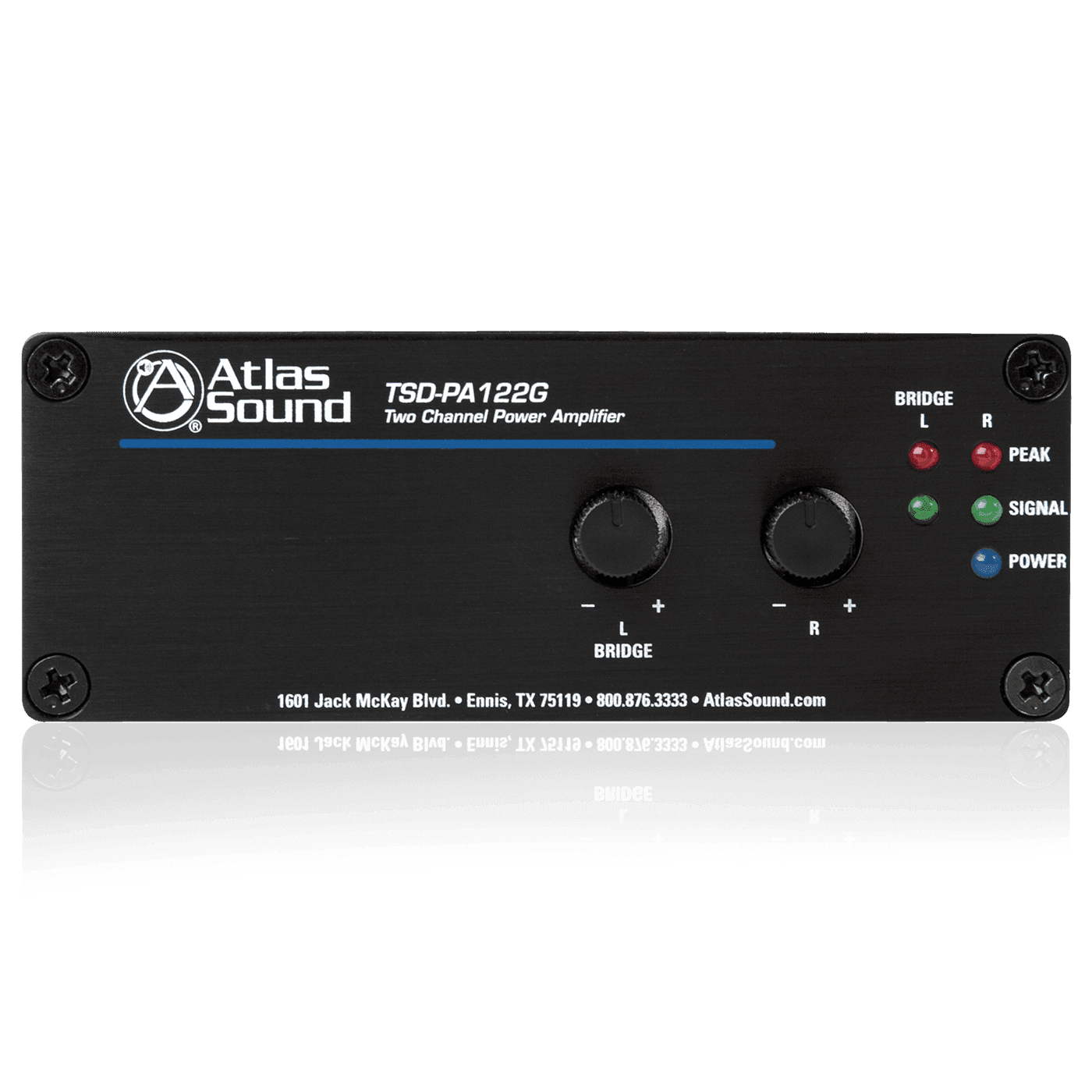

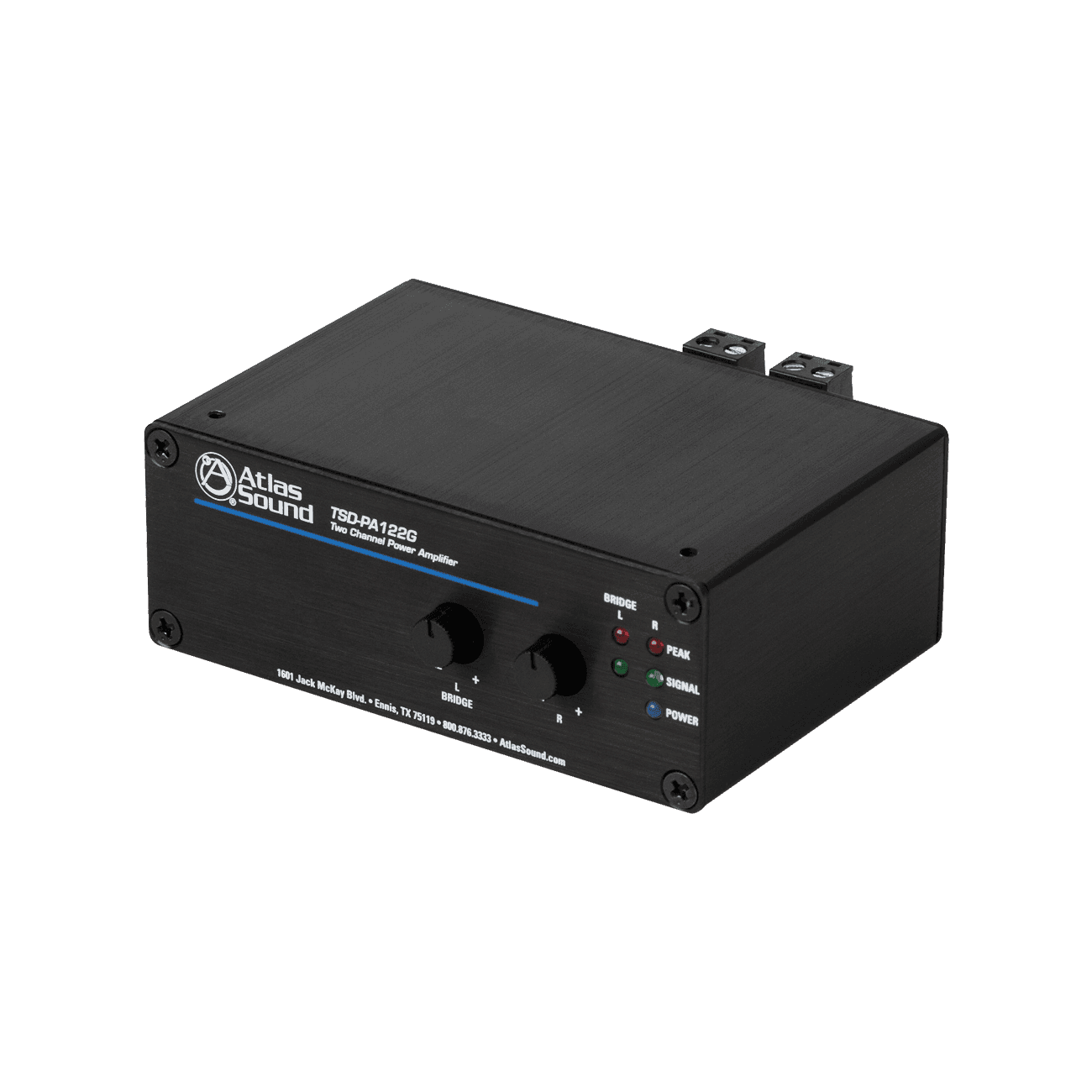

Atlas Sound TSD-PA122G 12W x 2 4 2-Channel Power Amplifier
The TSD-PA122G 4? stereo amplifier is perfectly suited for almost any general amplification requirement. Perfect for adding sound reinforcement to small projector systems as it provides ample power to drive up to four 8? loudspeakers in a classroom or boardroom application.

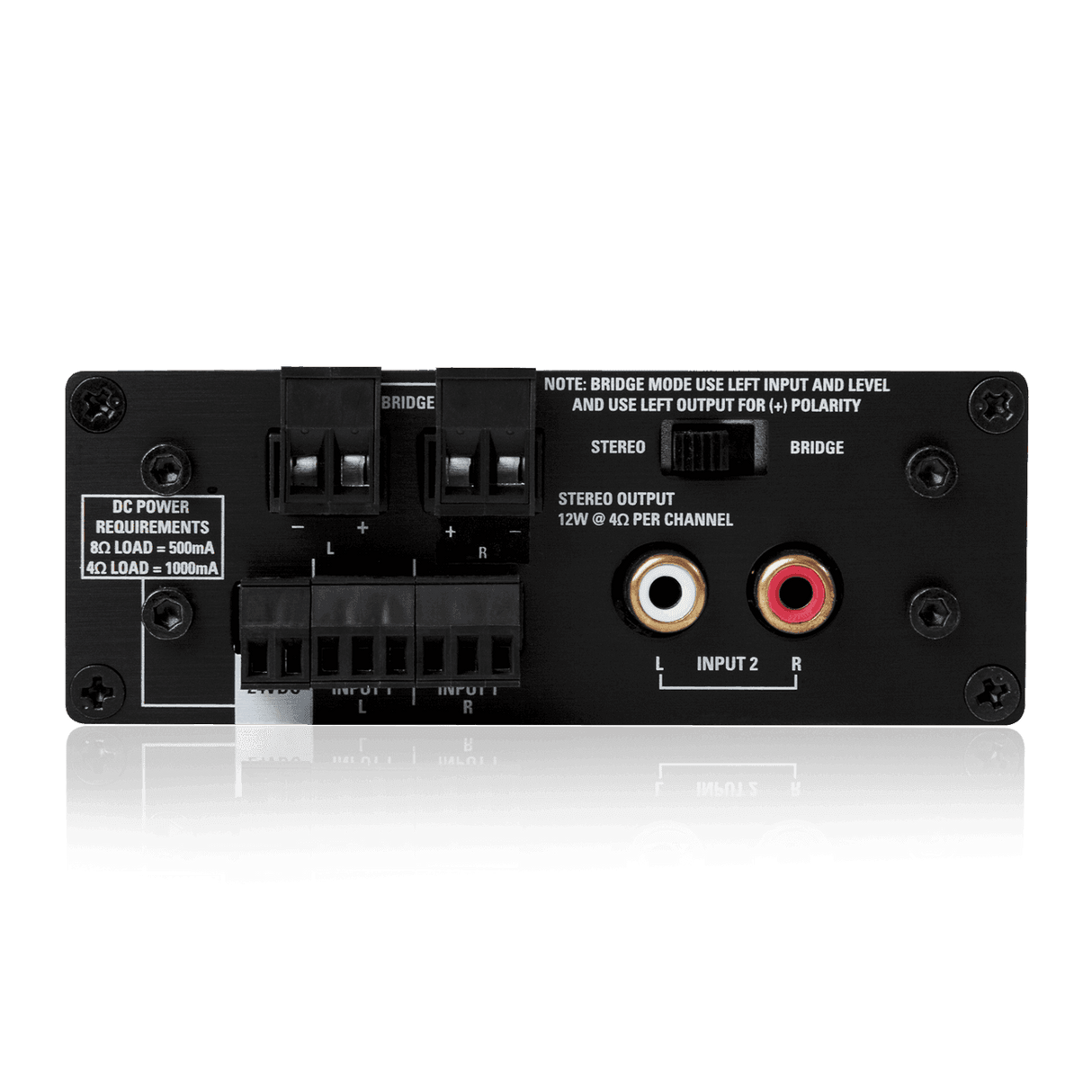

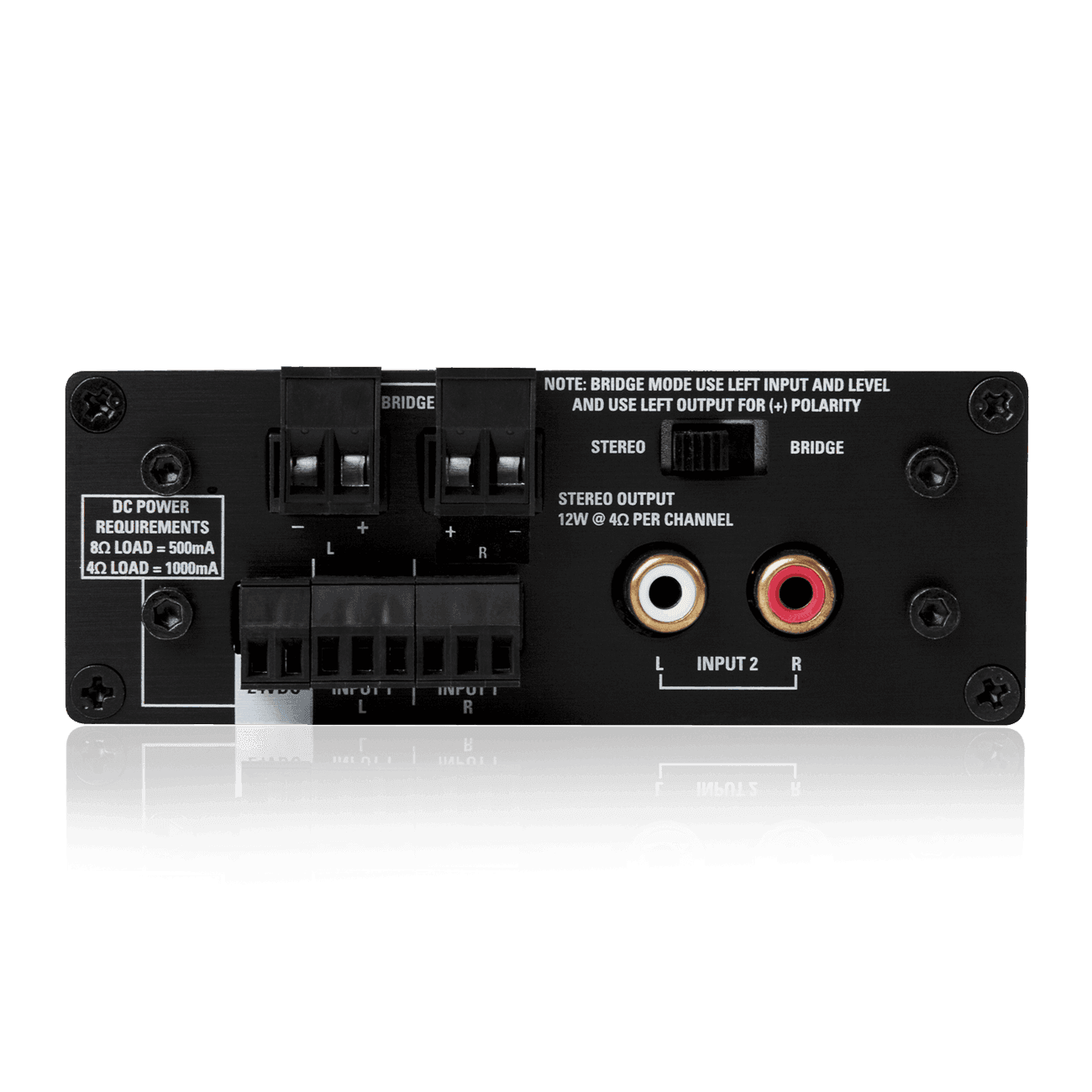

Output is 12W per channel at 4? or 24W bridged mono at 8?. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.
Features
-
12W x 2 @ 4Ω
-
24W Bridged @ 8Ω
-
Two RCA Balanced Inputs
-
Removable Level Controls
-
Input Peak Indicator LEDs
-
Input Signal Indicator LEDs
-
Removable Phoenix Style I/O Connectors
-
Separate Ground Connections
-
Power Supply Sold Separately
Specs
| Frequency Response | 20Hz - 20kHz |
| Power Rating | 12W @ 4Ω x 2 CH, 6W @ 8Ω x 2 CH, 24W @ 8Ω Bridged |
| Balanced Input Impedance | 10kΩ Balanced, 5kΩ Unbalanced |
| Line Input Level | 500mV (-6dBV) Balanced |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 2.5" (6.35 cm) |
| Weight | 6oz., .165kg |
| Voltage Compatibility | 24V |
