Atlas Sound TSD-PA10VG 10W Mono 4/25V/70.7V/100V Power Amplifier

$218.99 $271.99

Shipping calculated at checkout.

AtlasIED | SKU: TSD-PA10VG

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The TSD-PA10VG is a cost effective mono amplifier for 4? and distributed constant voltage speaker systems. Applications such as house of worship cry rooms, restrooms, and foyers will benefit from this compact reliable amplifier. The TSD-PA10VG is also a good alternative for small projector systems as it can be used with as many as (8) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

For sound masking applications the TSD-PA10VG has the capacity to drive up to 17 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper resistant cover (included).

Features

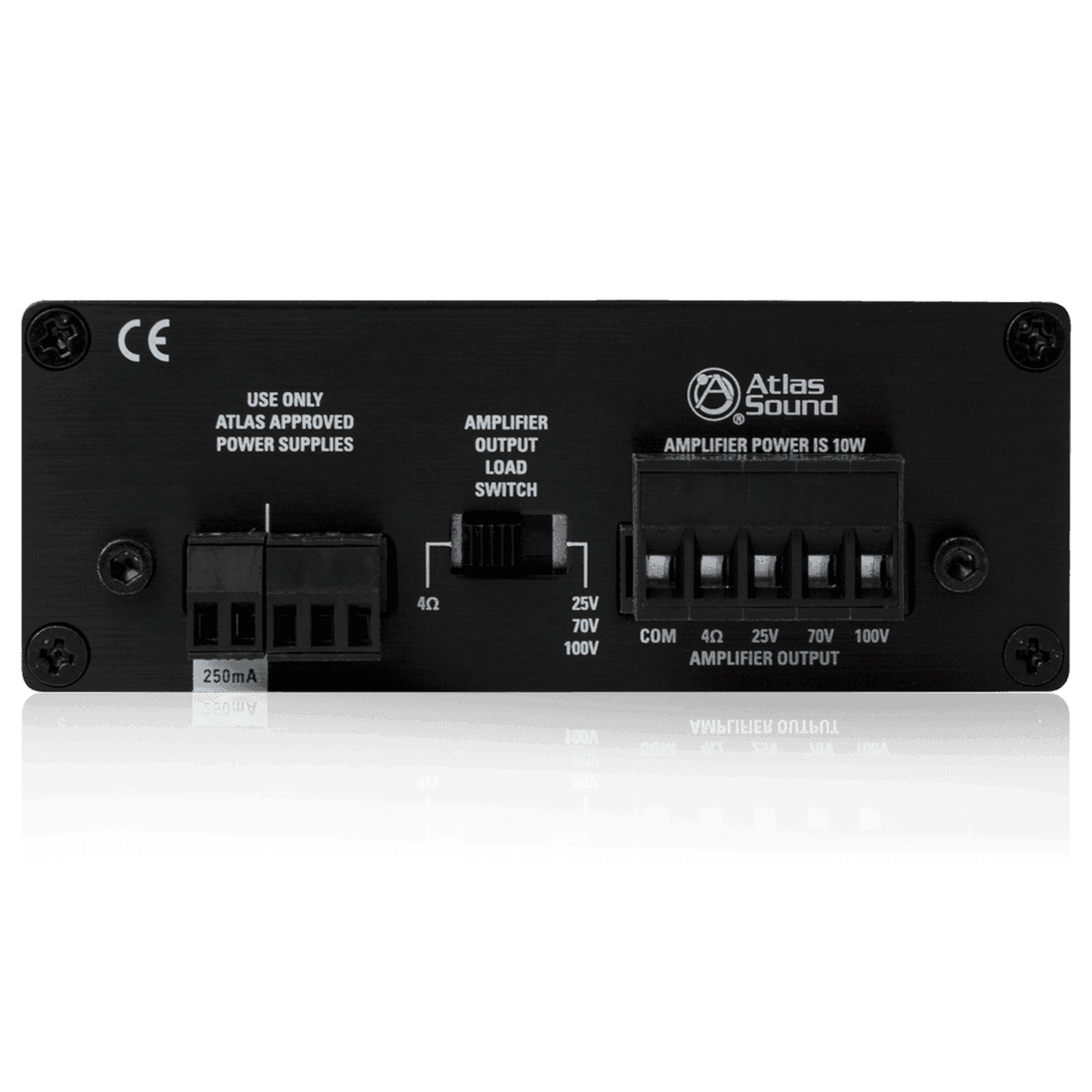

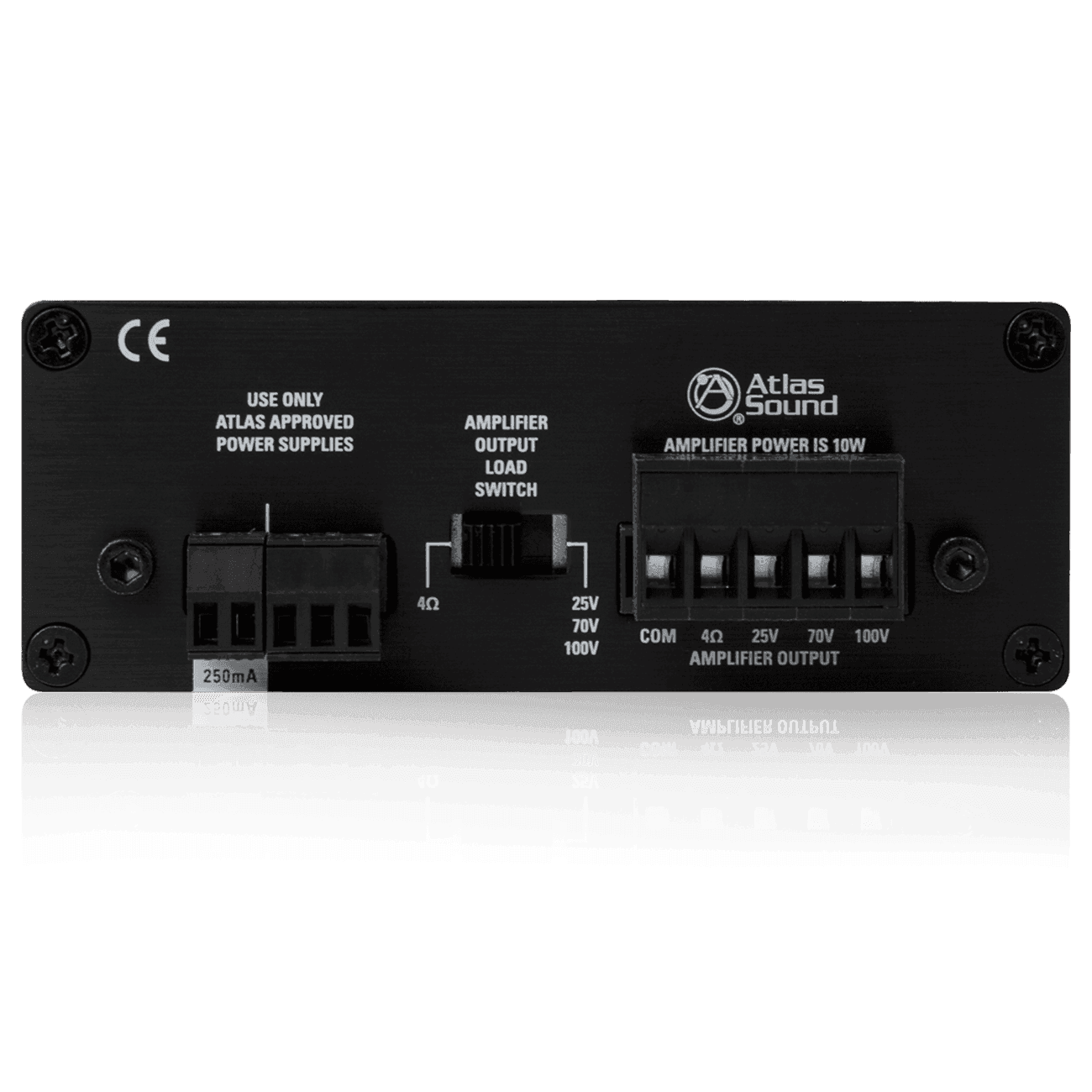

4Ω/25V/70.7V/100V Output
One (1) Balanced Input

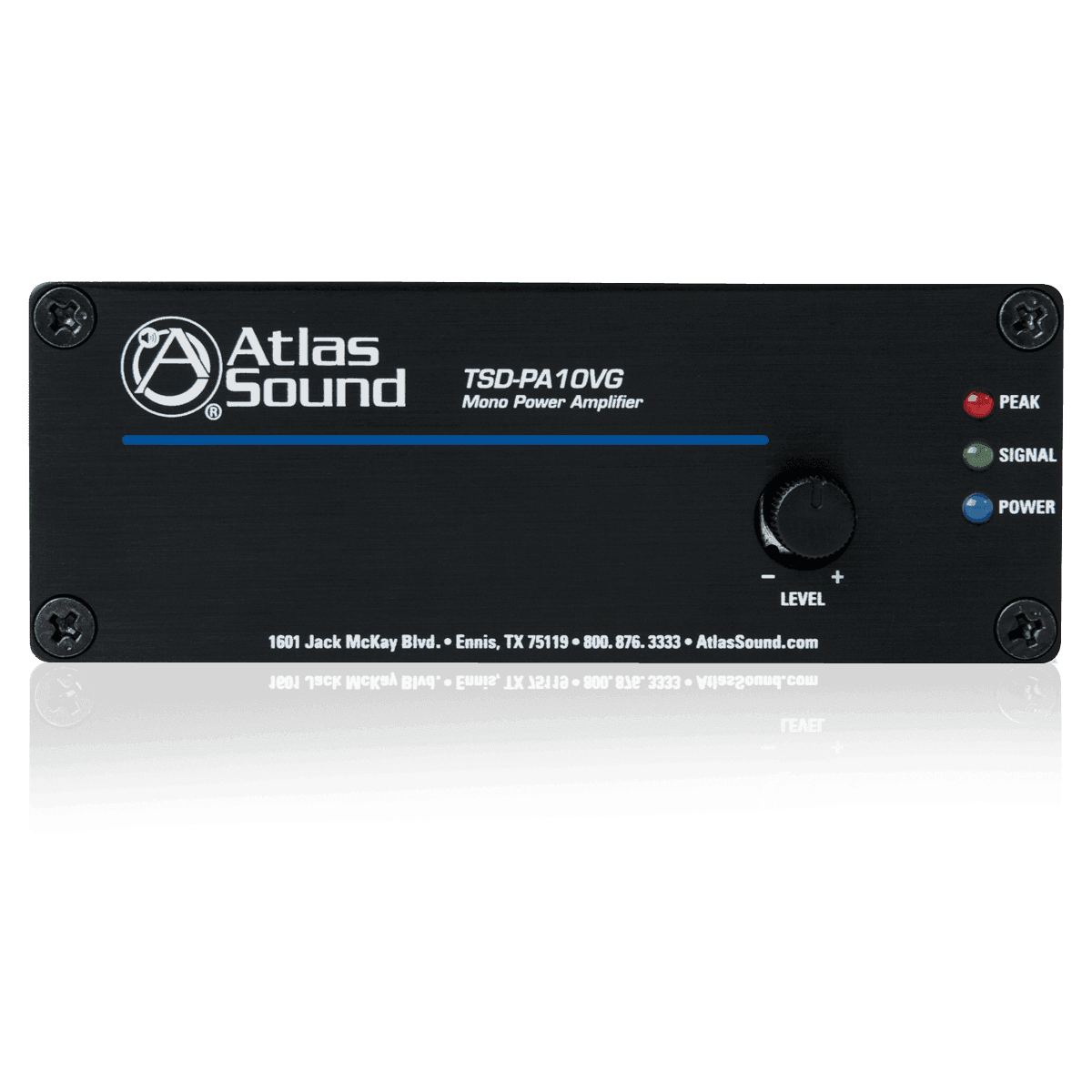

Removable Level Control with Set-It-And-Forget-It Security Cover
Input Signal and Peak Indicator LEDs
Cable Management System
Removable Phoenix Style I/O Connectors
Energy Efficient

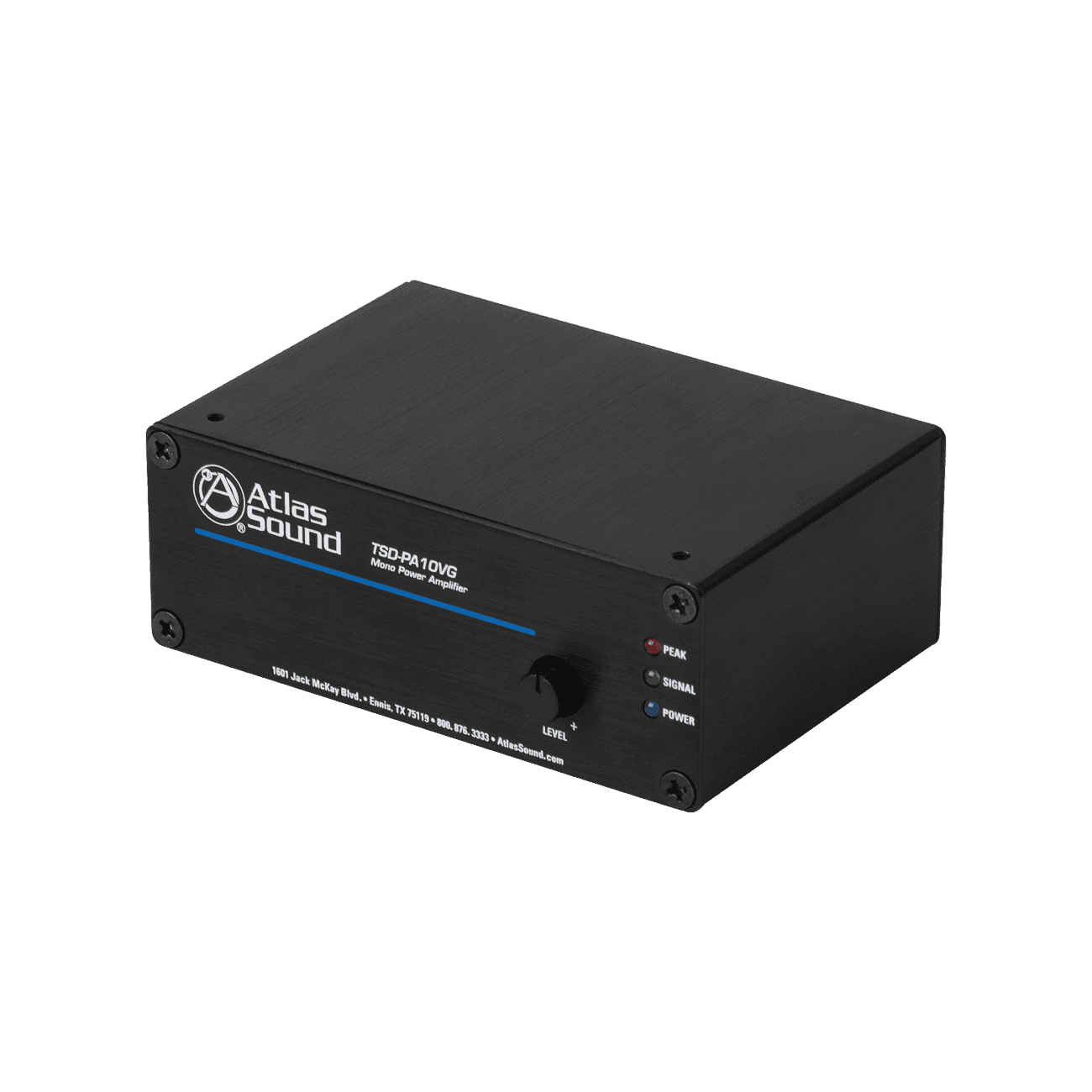

Compact Chassis Design
Power Supply Sold Separately

Specs

Frequency Response	40Hz - 20kHz
Power Output	10W @ 4Ω, 5W @ 8Ω, 10W @ 25V/70V/100V Loads
Line Input Level	500mV (-6dBV) Balanced
THD	.5% @ 1kHz
24VDC Power Requirements	500mA
Height	1.5" (3.81 cm)
Width	4" (10.16 cm)
Depth	2.75" (6.99 cm)
Voltage Compatibility	24V
