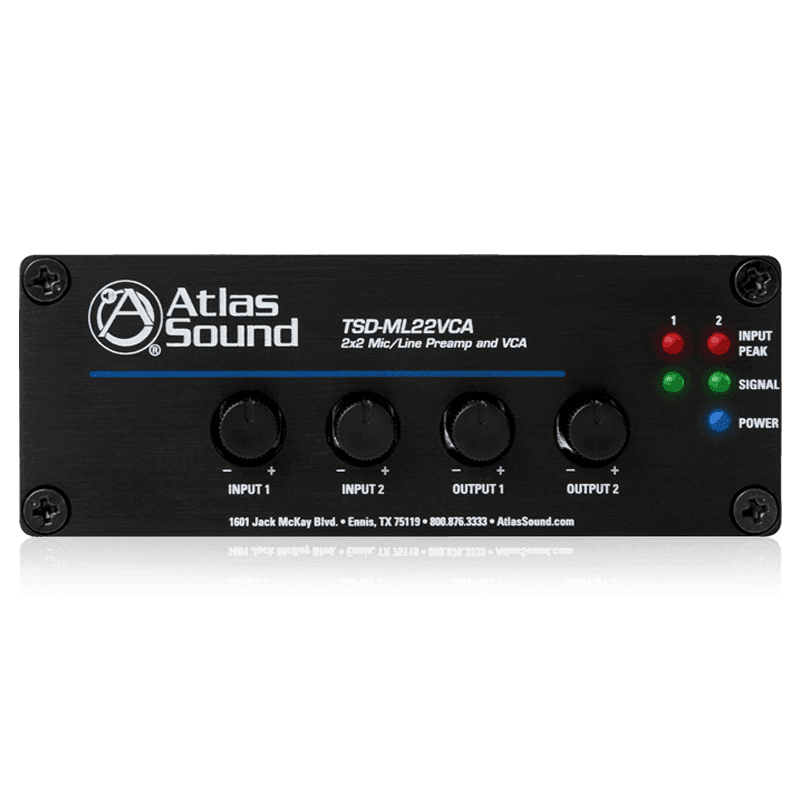

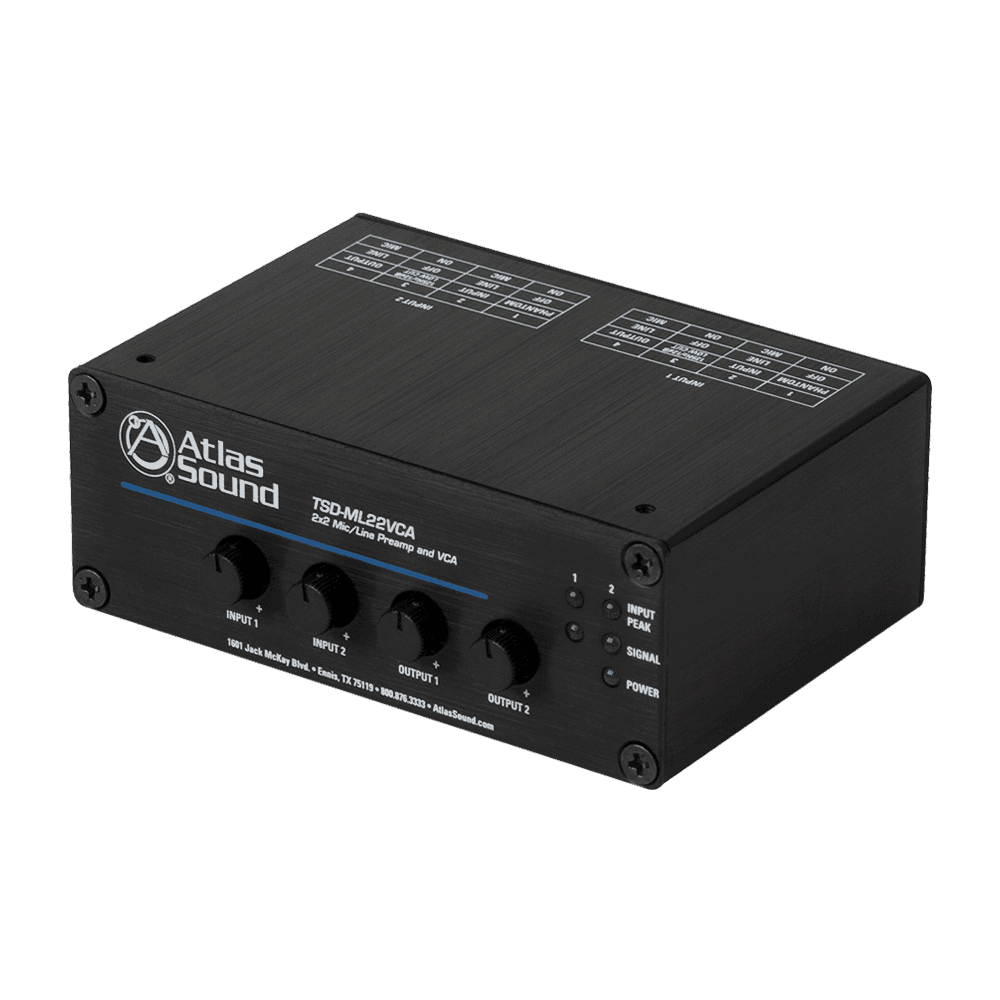

Atlas Sound TSD-ML22VCA 2 x 2 Mic/Line Preamp and VCA
The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier. VCA's inserted prior to amplification provide a far more efficient solution than transformer-based attenuators for volume adjustment in high power music applications. The dual channel design can provide level control for two separate discrete zones or stereo sources and is perfect for use in sports bars, restaurants, hotels or other installations.
The TSD-ML22VCA also provides two high quality, low noise mic pre-amps, which allow simplification of designs that require remote microphone level adjustment. Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum.
Features
-
True VCA for Remote Volume Control of Mic or Line Sources
-
Two (2) Mic/Line Inputs
-

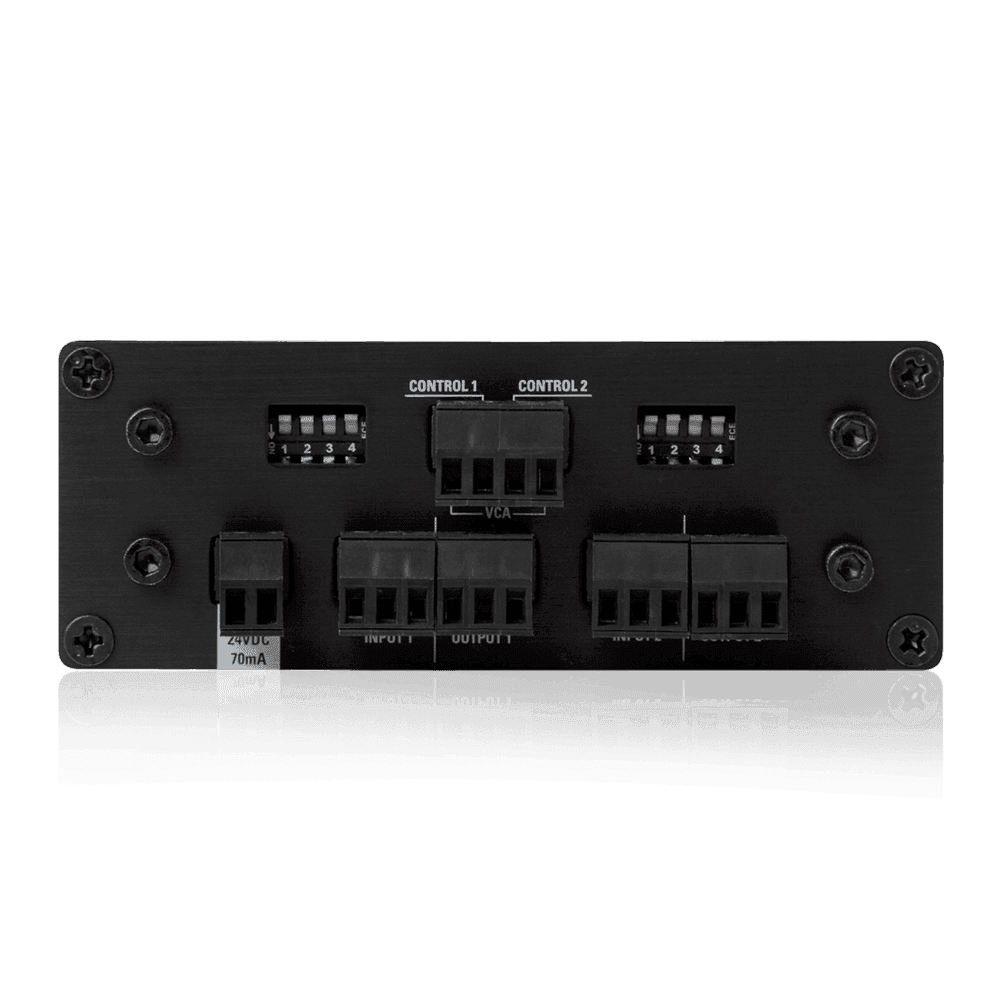

All I/O Via Phoenix Style Connectors
-
High Quality Microphone Preamp with Switchable 24V Phantom Power
-
12dB/Octave Low Cut Filter @ 125Hz
-
Input Signal & Peak LEDs
-
High Gain Output for Driving Long Balanced Lines
-
Separate Ground Connections
-
Security Covers Included for All Front Panel Controls
-
Energy Efficient
-
Power Supply Sold Separately
Specs
| Input impedance | 1.2KΩ Balanced, 600Ω Unbalanced |
| Phantom Power | 24VDC Defeatable |
| Low Cut Filter | 125Hz/12dB Defeatable |
| Line Input Level | 1V (0dBV) Balanced 2V (+6dBV) Balanced Output |
| Mic Input Level | 46dB Gain 10mV (-40dBV) Balanced |
| Output impedance | 300Ω Balanced, 150Ω Unbalanced |
| Line Output Level | 1V (0dBV) In |
| Frequency Response | 20Hz - 20kHz |
| Signal to Noise Ratio Line to Line | 85dBV |
| Signal to Noise Ratio Line to Mic | 55dBV |
| 24VDC Power Requirements | 70mA |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 2.5" (6.35 cm) |
| Weight | 6oz., .165kg |
| Voltage Compatibility | 24V |
