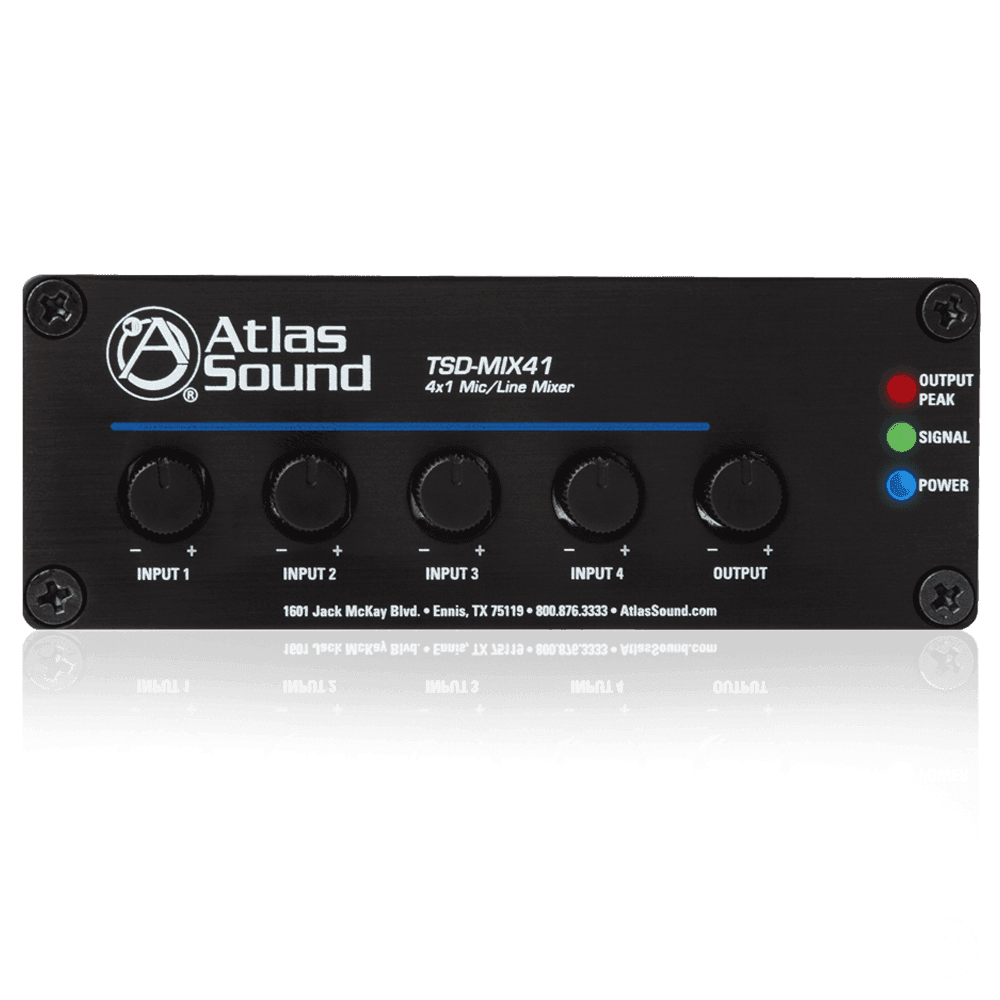

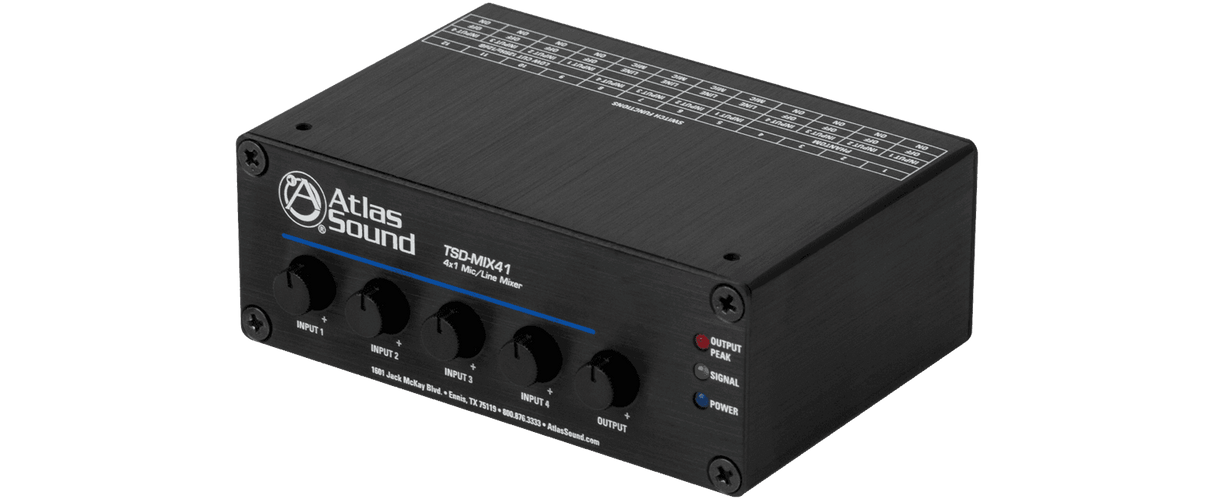

Atlas Sound TSD-MIX41 4 x 1 Mic/Line Mixer

The TSD-MIX41 4x1 Mic/Line Mixer from Atlas Sound is designed for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 can be used to combine similar sources such as choir microphones to a single mixer channel. The unit also works as a stand-alone mic/line mixer that can be interfaced with Atlas Sound amplifiers. Other applications include restaurants, conference rooms, and schools. Each input is mic/line switchable with phantom power provided for condenser microphones. The low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter at 125Hz also is available on each input to minimize bass rumble and low frequency feedback. A 24VDC power supply (available separately) is required for operation.

Features

• Four (4) Balanced Mic/Line Inputs
• Four (4) Professional Grade Microphone Preamps with Switchable 24V Phantom Power
• Up to 50dB Mic Gain Per Input
• 12dB/Octave Low Cut Filter @ 125Hz
• Balanced Line Output
• Input Peak & Signal Indicator LED's
• High Gain Output for Driving Long Balanced Lines
• Separate Ground Connections

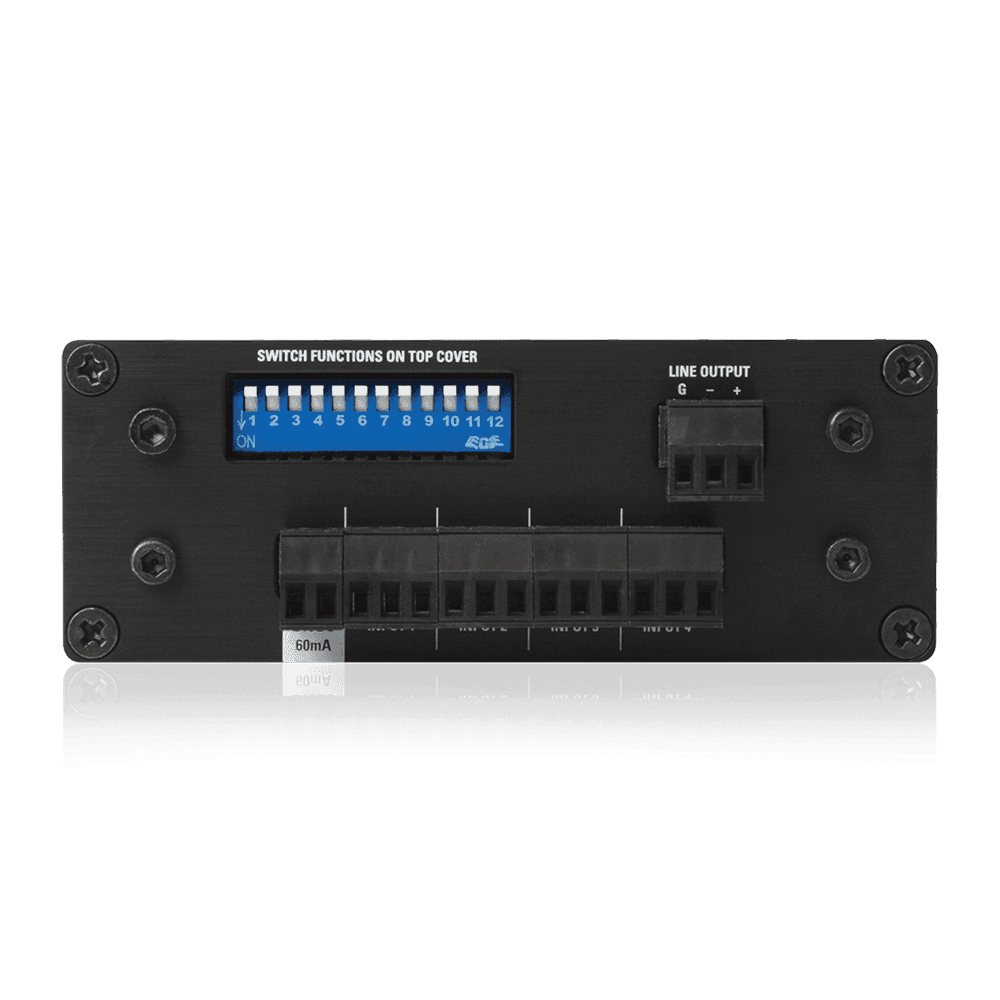

• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Power Supply Sold Separately
• Energy Efficient
