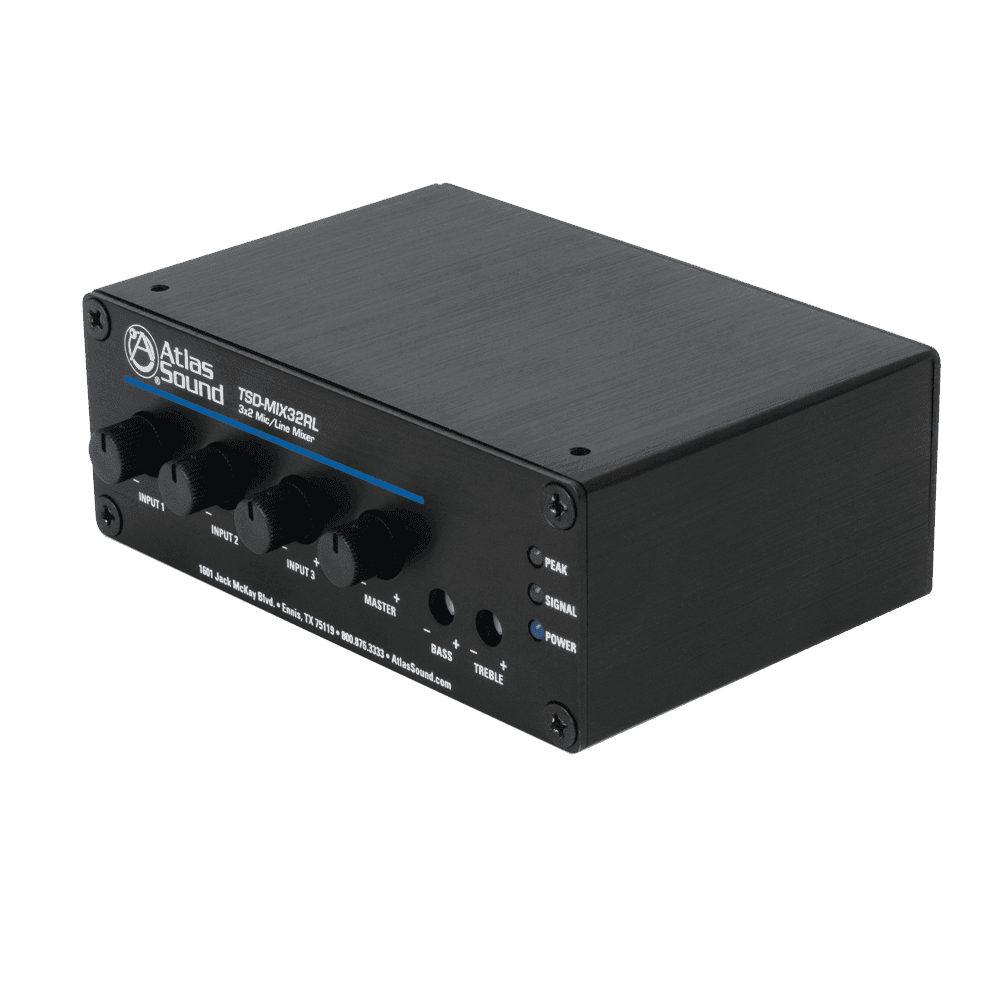

Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level
The AtlasIED TSD-MIX32RL is a 3x2 stereo line mixer with Remote level control. It is ideal for applications where multiple stereo line sources need to be combined into a preamp utilizing the local or remote Master level control. The unit can be easily interfaced with AtlasIED amplifiers. Applications include restaurants, conference rooms, and schools.
Additional on board EQ can be done utilizing the Base control (100Hz ±6db) and Treble control (10kHz ±6dB). The TSD-MIX32RL uses high quality, low noise components to ensure clarity and quiet operation without unwanted coloration.
Features
-

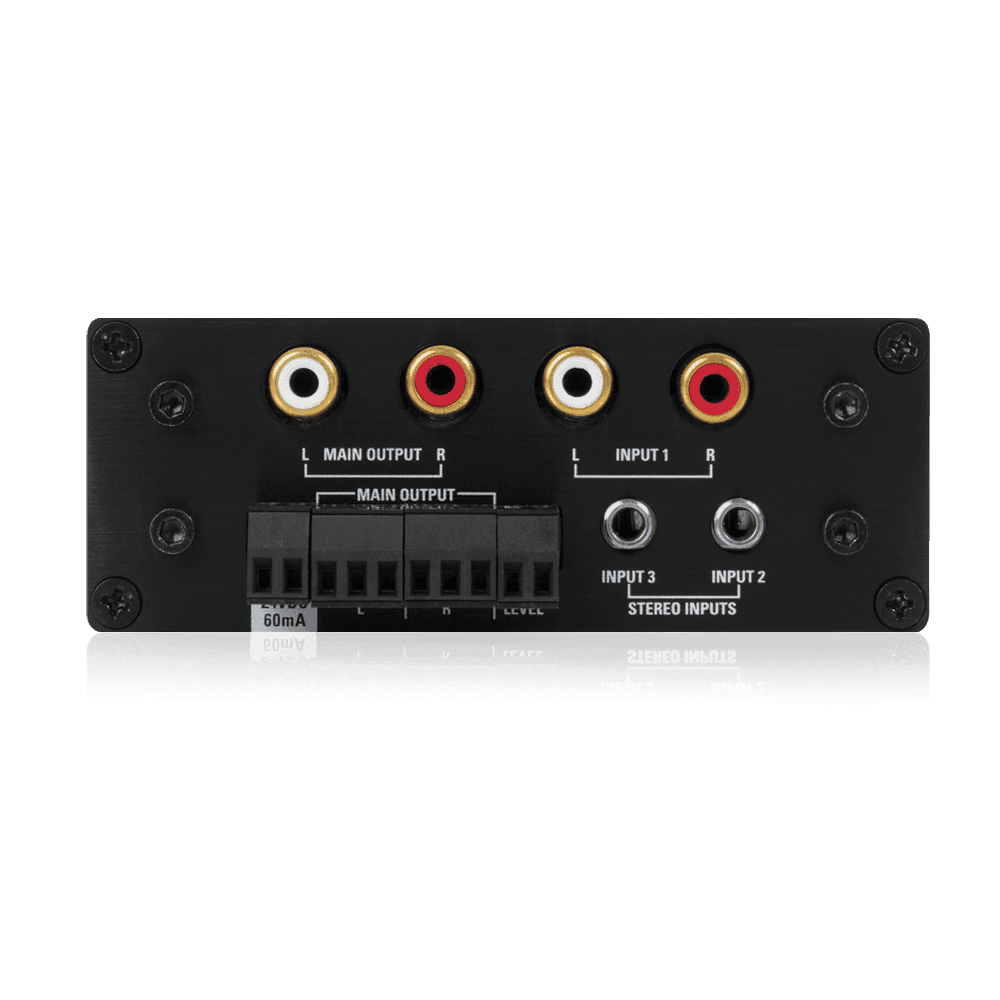

Three Stereo Unbalanced Line Inputs, One Set of RCA and Two 3.5mm
-
Balanced Line Outputs Left & Right
-
Unbalanced Line Outputs Left & Right
-

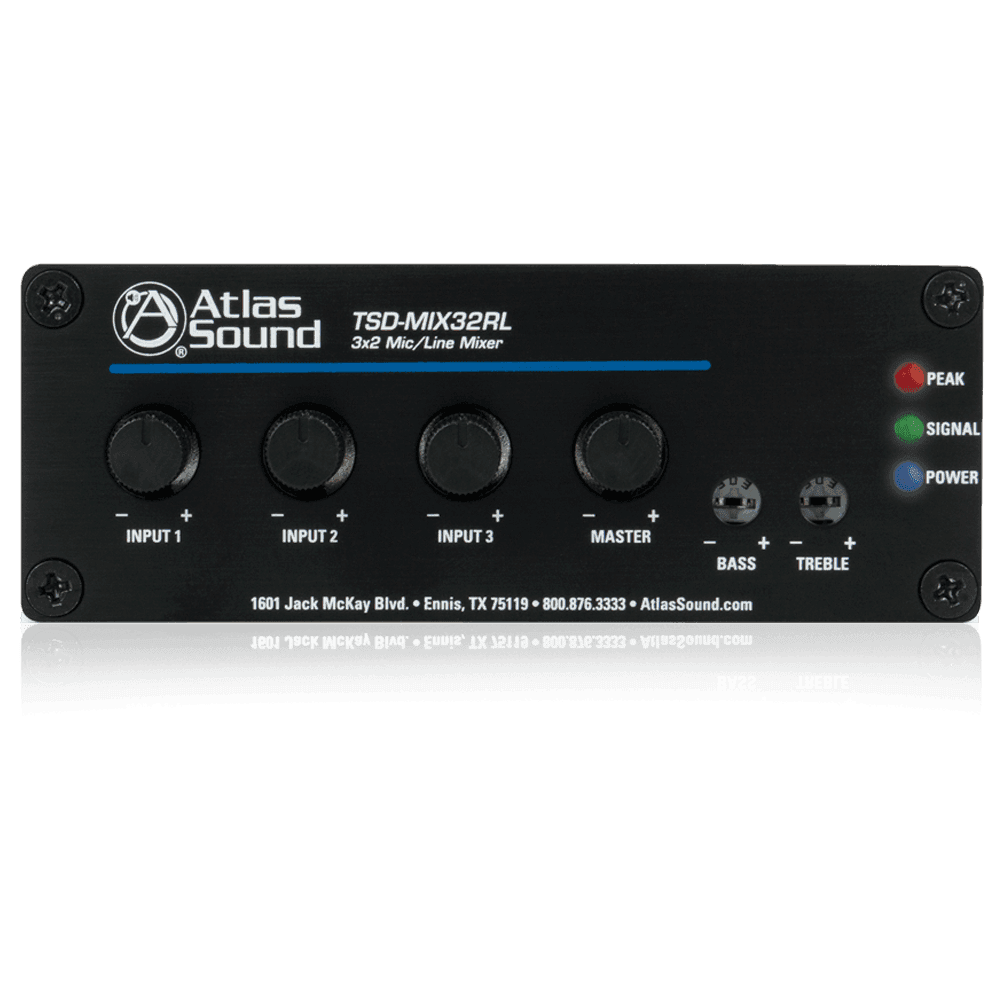

Base & Treble Controls ±6dB
-
Remote Master Level Control
-
High Gain Output for Driving Long Balanced Lines
-
Input Signal Indicator LEDs, Qty 3
-
Output Peak & Signal Indicator LEDs
-
Separate Ground Connections
Specs
| Unbalanced Line Input | 300mV (-10dB) |
| Maximum Input Signal | 1.5V (3dBV) |
| THD | .06% @ 1kHz |
| Signal to Noise Ratio | Line to Line: 85dBV |
| Balanced Output Impedance | 300Ω |
| Unbalanced Output Impedance | 150Ω |
| Power Consumption | 60mA |
| Power Consumption | 1.4W |
| Maximum Output Balanced/Unbalanced | 5V (14dBV) |
| Frequency Response | 20Hz - 20kHz (±1dB) |
| Voltage | 24VDC, 60mA |
| Height | 1.5" (39mm) |
| Width | 4" (101mm) |
| Depth | 2.75" (70mm) |
| Voltage Compatibility | 24V |
