Atlas Sound TSD-DAC2I 2-Channel Balance Line Input to Dante® Interface
Atlas Sound TSD-DAC2I 2-Channel Balance Line Input to Dante® Interface is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound TSD-DAC2I 2-Channel Balance Line Input to Dante® Interface

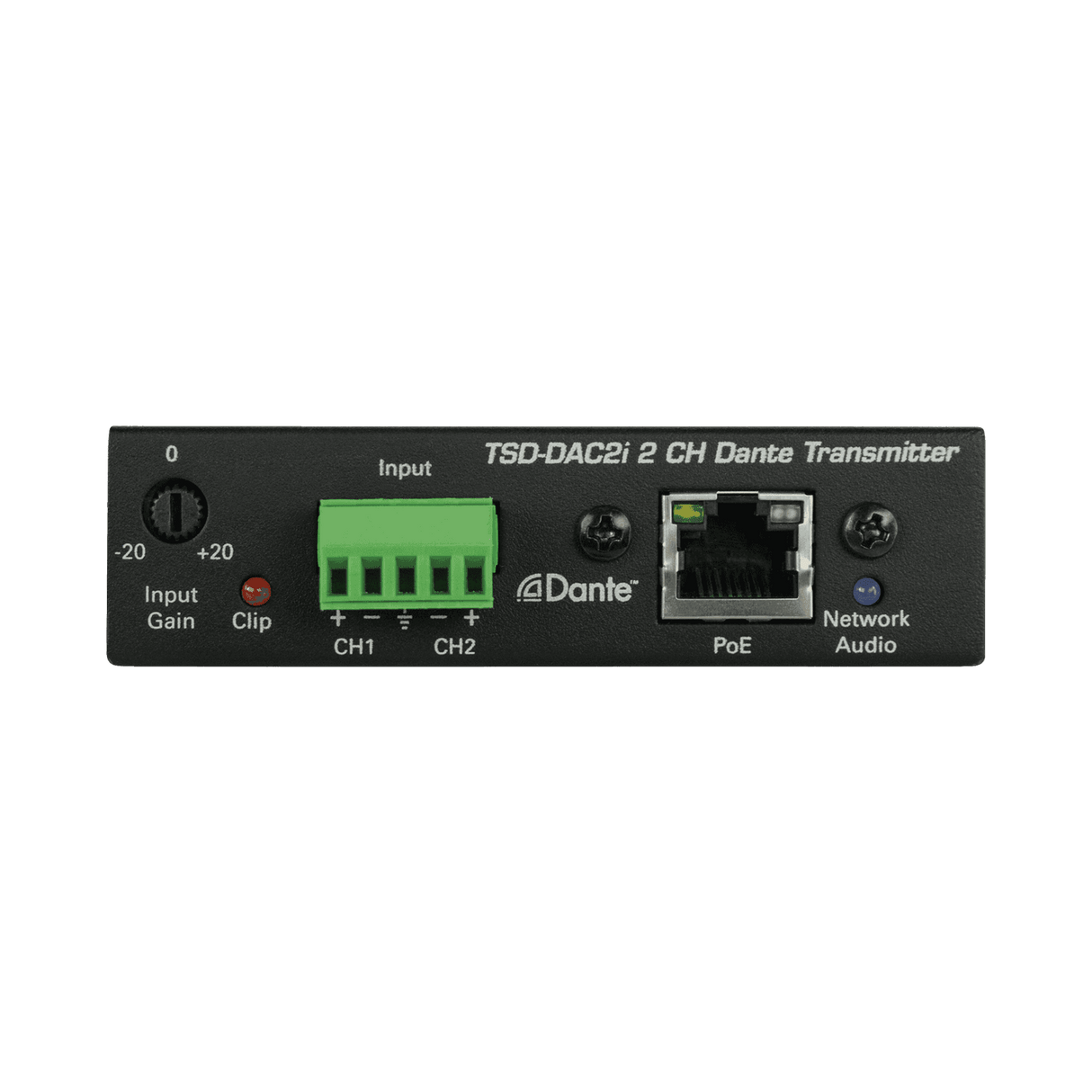

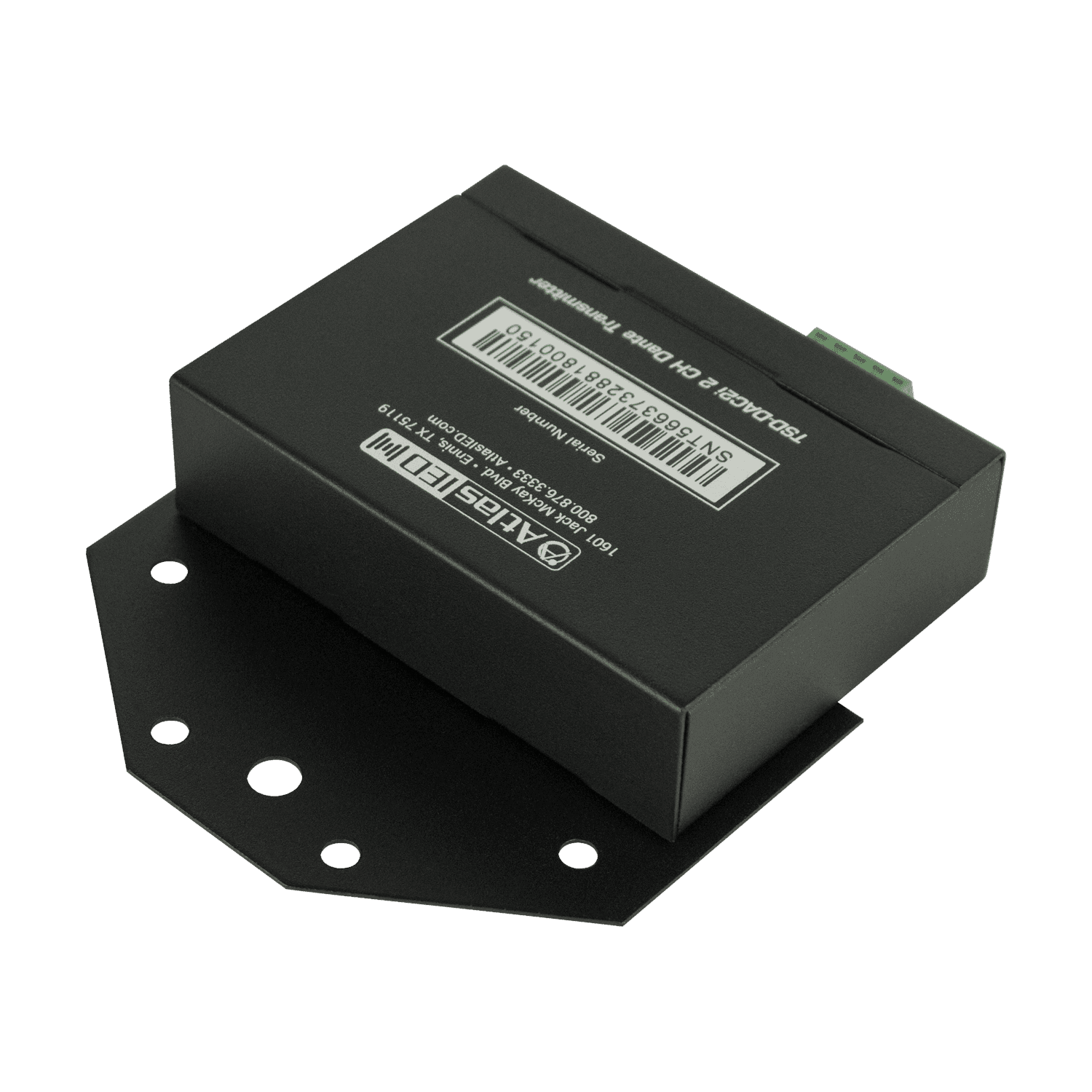

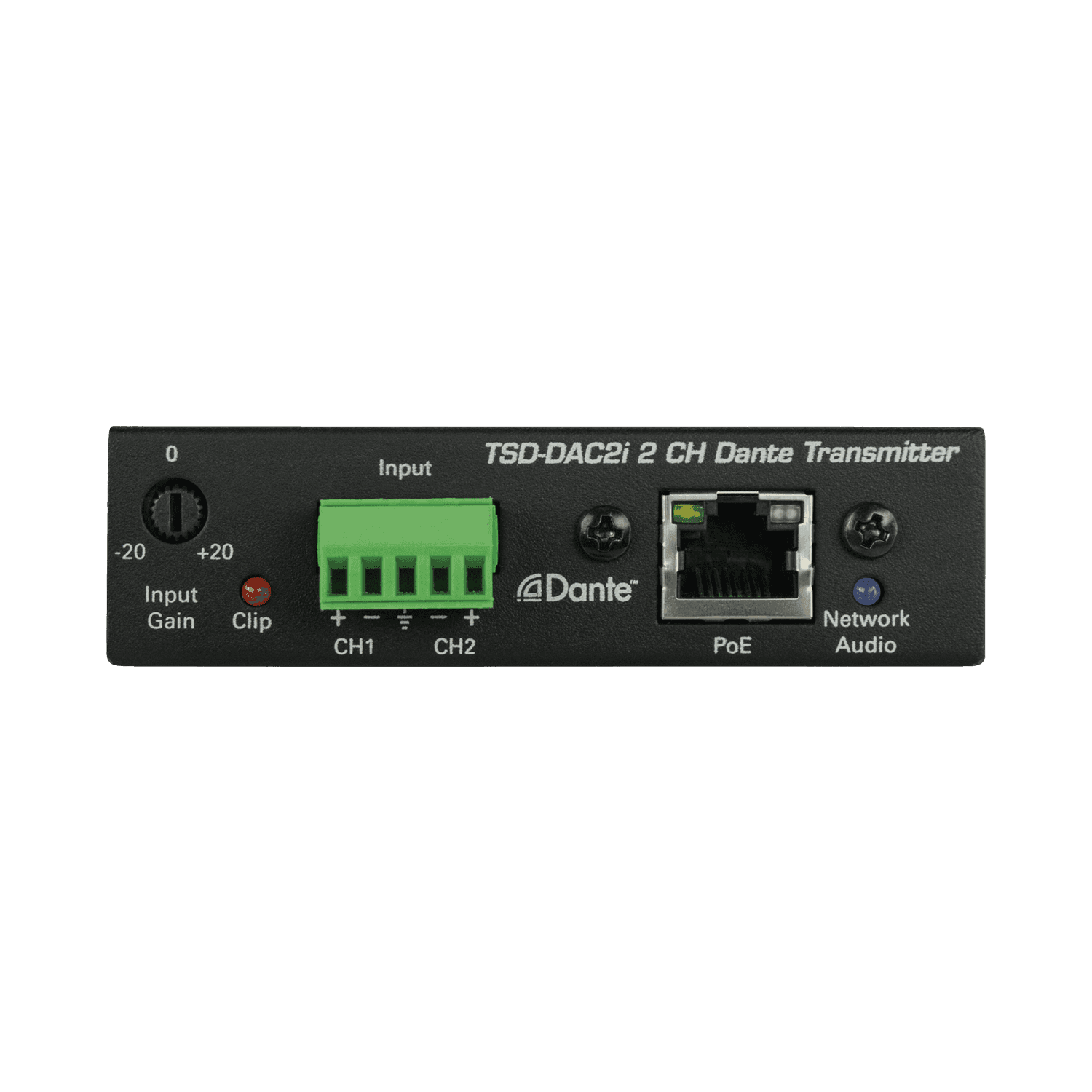

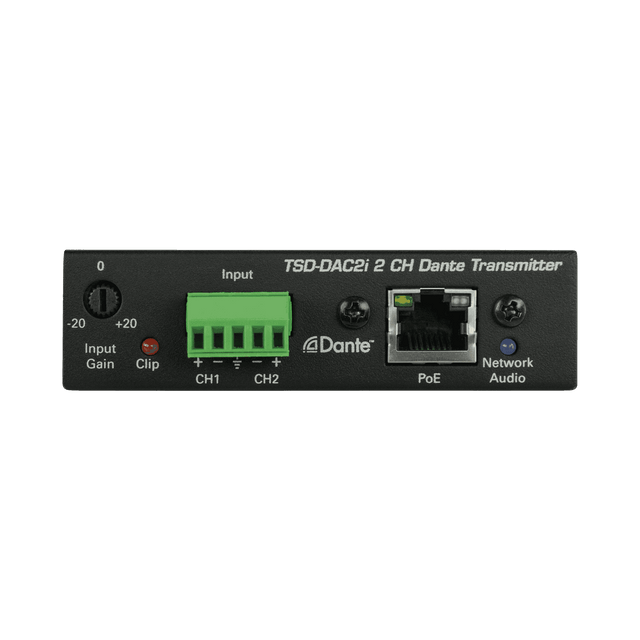

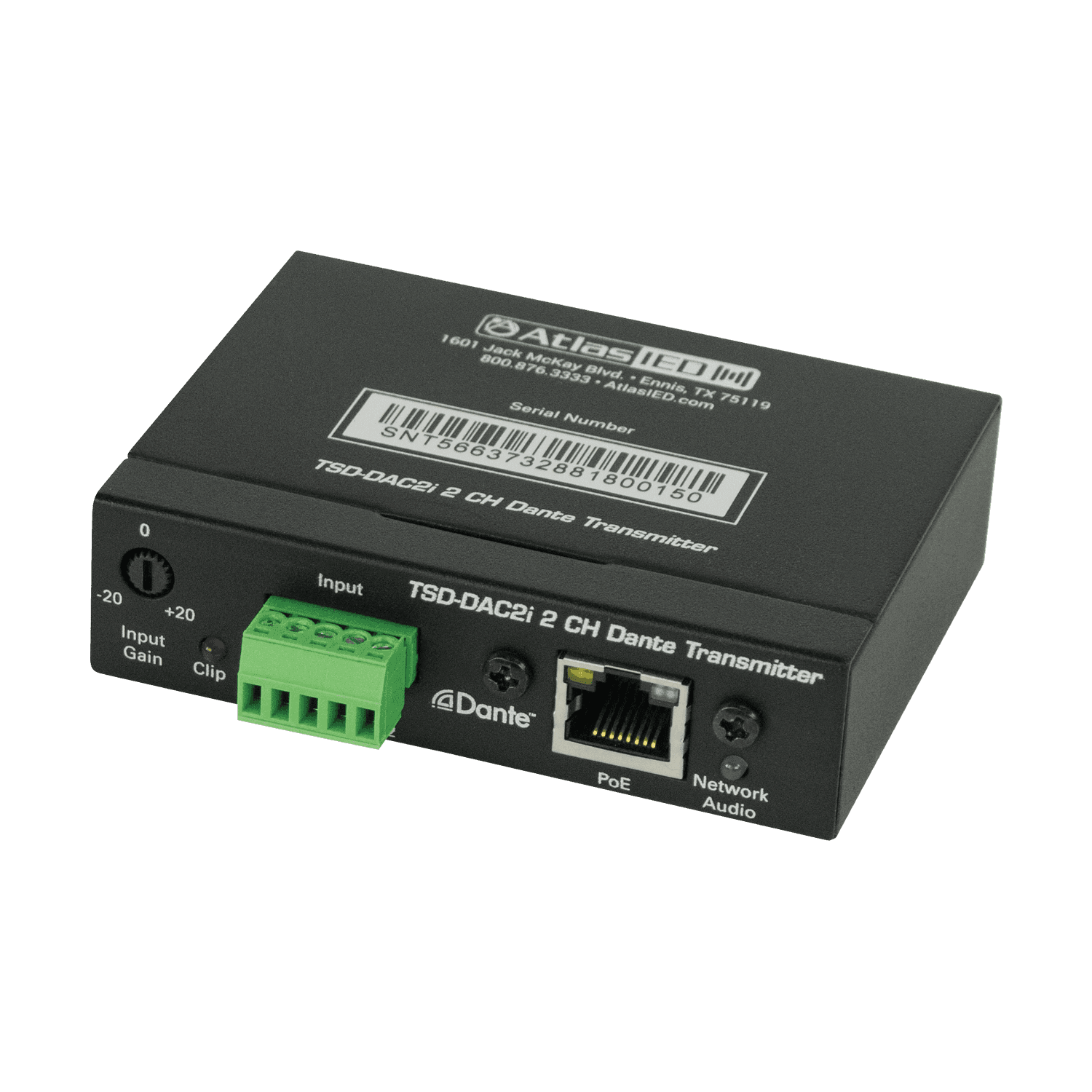

The AtlasIED TSD-DAC2i is a PoE 2-channel analog pre-amplifier that converts analog audio signals into Dante® digital audio. The TSD-DAC2i can be used for any Analog to Dante® digital audio end point but is ideally suited to be used with the AtlasIED WTSD wall mixer series. Once converted into Dante® digital audio, the audio can be transmitted over IP networks and routed in the Dante® Controller software. The TSD-DAC2i Dante® transmitter I/O module features two analog balanced line inputs with a variable gain to operate from line to mic level. An Input Clip indicator illuminates when clipping signals are present. There are indicators for Power and Network connection. The TSD-DAC2i requires no external power supply, it is powered via a network PoE port or a PoE cable power injector.
Features
- Dante® digital audio platform
- 2 CH Balanced Analog Line Input
- Wide range gain adjust -20dB to +20dB
- AUX, Line & Mic Levels
- Input Clip Indicator
- PoE Powered
- Mounting Plate
- Incorporates with WTSD Wall Mixers
Specs
| Network Interface | Single RJ-45 |
| Input impedance | 15kΩ (Analog) |
| Frequency Response | 20Hz - 20kHz (+/- 2dB) |
| THD | .06% @ 1kHz |
| Signal to Noise Ratio | 95dB @ 1kHz (A Weighted) |
| Dynamic Range | 100dB (-60dBFS A Weighted) |
| Power Source | PoE (52V 36mA) |
| Power Consumption | 1.9W |
| Height | 1" (25mm) |
| Width | 3.6" (93mm) |
| Depth | 3.17" (81mm) |
| Weight | .44 lbs (0.20kg) |
| Shipping Weight | .7 lbs (0.32kg) |
