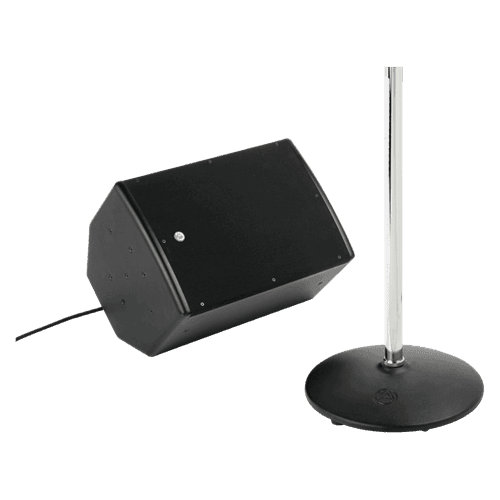

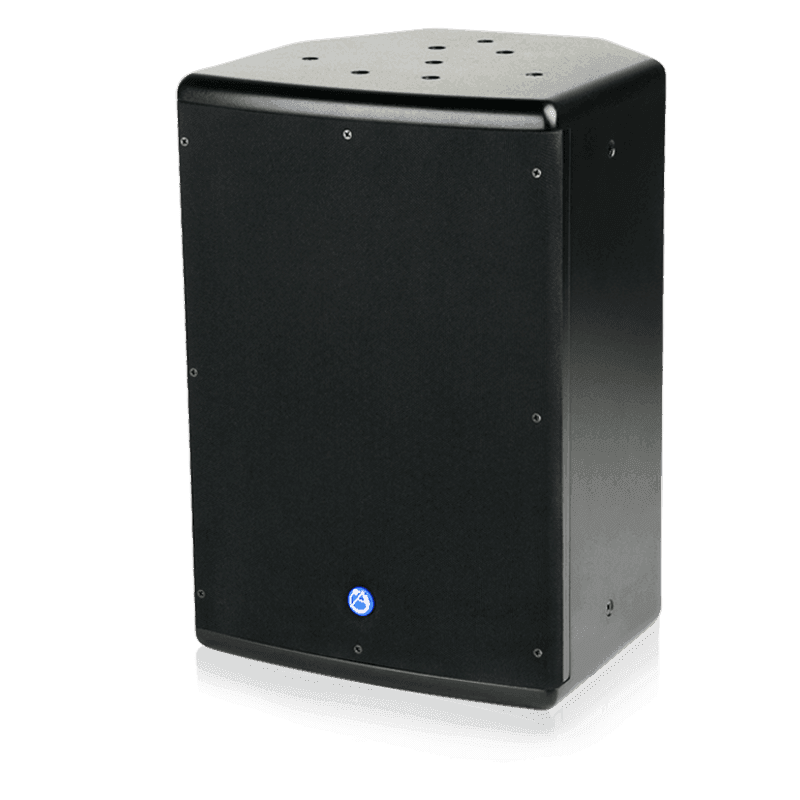

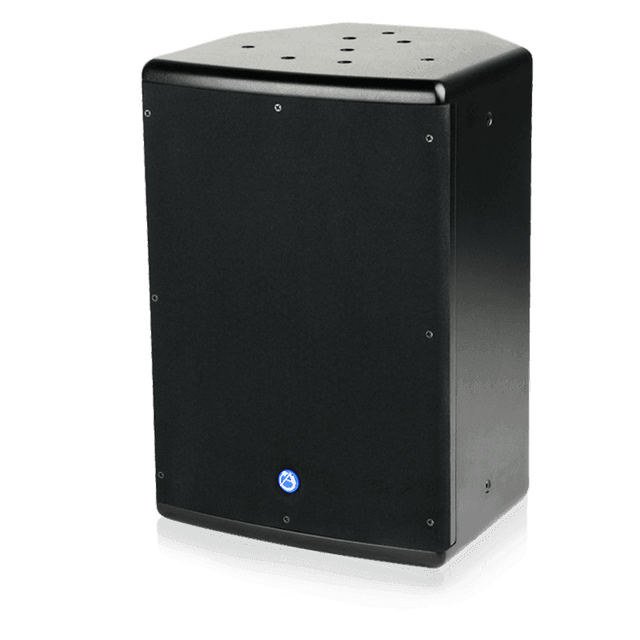

Atlas Sound SM8CXT-B 8" 2-Way Compression Driver Coaxial Surface Mount Speaker with 60-Watt 70V Transformer (Black)

$667.99 $829.99

Shipping calculated at checkout.

AtlasIED | SKU: SM8CXT-B

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

SM Series loudspeakers offer quality sound reproduction and contemporary styling.The SM8CXT-B features the SM8CXT60-"a 150 watt loudspeaker that combines an 8" diameter, low frequency transducer and a 1" exit, compression driver.The speaker has a curvlilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers.The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance.The copper coils have Polyimide voice coil formers.The SM8CXT-B features a wood enclosure with a metal grille.Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation.A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM8CXT-B a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more.

Features

Attractive, heavy-duty grille assembly

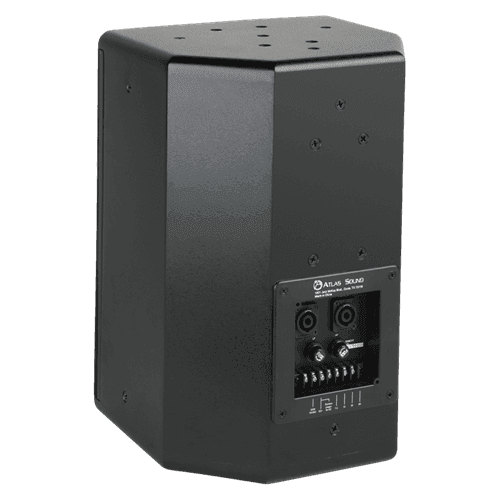

Barrier strip input for 70.7/100V/8 Ohm or parallel 4 pole Speak-onTM input for 8 ohm operation only
Durable black, rough-coat finish
Fuse protection for low and high frequency drivers
High performance Atlas Sound compression driver coaxial loudspeaker in versatile, flyable, wood enclosure
Includes internal, high efficiency 60 Watt 70.7/100V transformer (may be bypassed for 8 ohm operation)
Multiple (12) 1/4"-20 inserts, providing fly points for a variety of mounting configurations
Optional brackets for wall mounting
Pre-drilled with T-Nut inserts for OmnimountTM bracket wall mounting
Unique input panel allows use of standard 4" square box cover (Raco 753 or eq.) for applications where flex conduit is required for termination

Specs

Speaker Type	HIGH PERFORMANCE COAXIAL
Sensitivity	92dB
Power Taps	7.5, 15, 30, 60 Watts & 8Ω
8Ω RMS Power	150 Watts
Dispersion	90°
Height	15 1/2" (39.4 cm)
Width	10 5/8" (26.99 cm)
Depth	10 3/8" (26.35 cm)
Shipping Weight	30.00 lbs (13.61 kgs)
