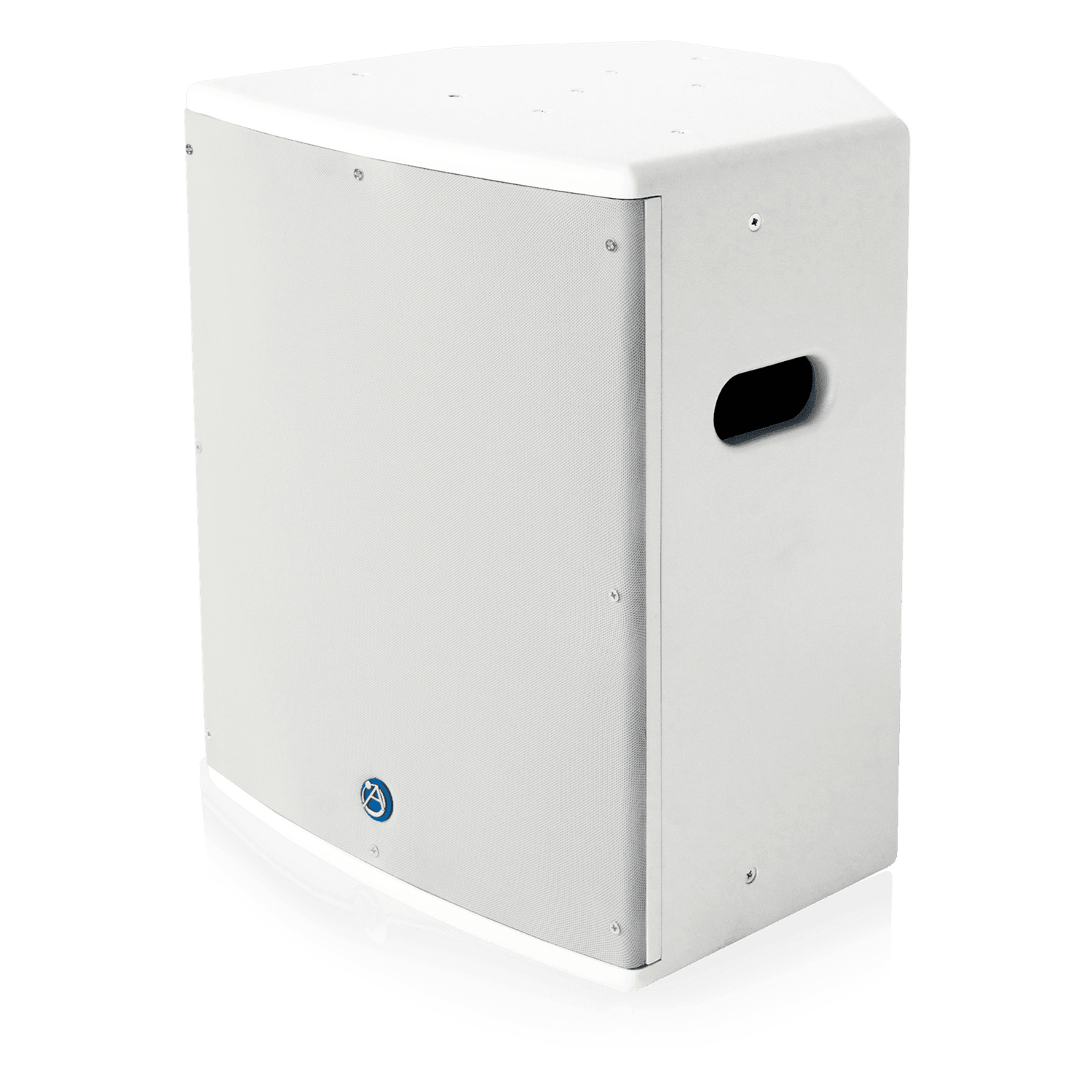

Atlas Sound SM12SUB70-W 12" Surface Mount Subwoofer with 60-Watt 70V/100V Transformer (White)
Atlas Sound SM12SUB70-W 12" Surface Mount Subwoofer with 60-Watt 70V/100V Transformer (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound SM12SUB70-W 12" Surface Mount Subwoofer with 60-Wa...
SM12SUB70-WSurface Mount 12" Subwoofer System in White Color made by Atlas Sound is designed for 8 and 70.7V distributed audio applications where low-frequency enhancement is desired. This model features a unique compact cabinet design with multiple "-20 inserts to allow easy suspension or wall mounting. It includes a built-in 18dB / octave three-pole passive crossover network coupled to a long-excursion 12" woofer housed in a multi-angle wood enclosure system. The passive crossover eliminates the need for a separate crossover or dedicated amplifier to power the speaker. A premium 70.7V transformer allows the SM12SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low-frequency response and more overall audio impact for foreground music systems. (Unit is also 8 compatible).
Features
-
Multiple ¼"-20 Inserts, Provide Fly Points for a Variety of Mounting Configurations
-
Includes Internal, High Efficiency, 60 Watt 70.7V/100V Transformer (May Be Bypassed for 8Ω Operation)
-
Barrier Strip Input for 70.7V/100V/8Ω or Parallel 4 Pole Speak-ON™ Input,
(8Ω Only) -
250W RMS Power Handling
-
Unique Input Panel Allows Use of Standard 4" Square Box Cover for Applications Where Flex Conduit is Required for Termination
-
Durable, Rough-Coat Finish and Heavy-Duty Grille Assembly
-
Optional Bracket for Wall Mounting
-
Omnimount™ Compatible
Specs
| Frequency Response | 45Hz - 125Hz |
| Sensitivity | 89dB |
| Power Taps | 7.5, 15, 30, 60 |
| Speaker Type | Sub |
| Dispersion | Omni |
| Height | 19" (483mm) |
| Width | 14 1/2" (368mm) |
| Depth | 14 1/16" (357mm) |
| Shipping Weight | 26 lbs (11.79 kgs) |
