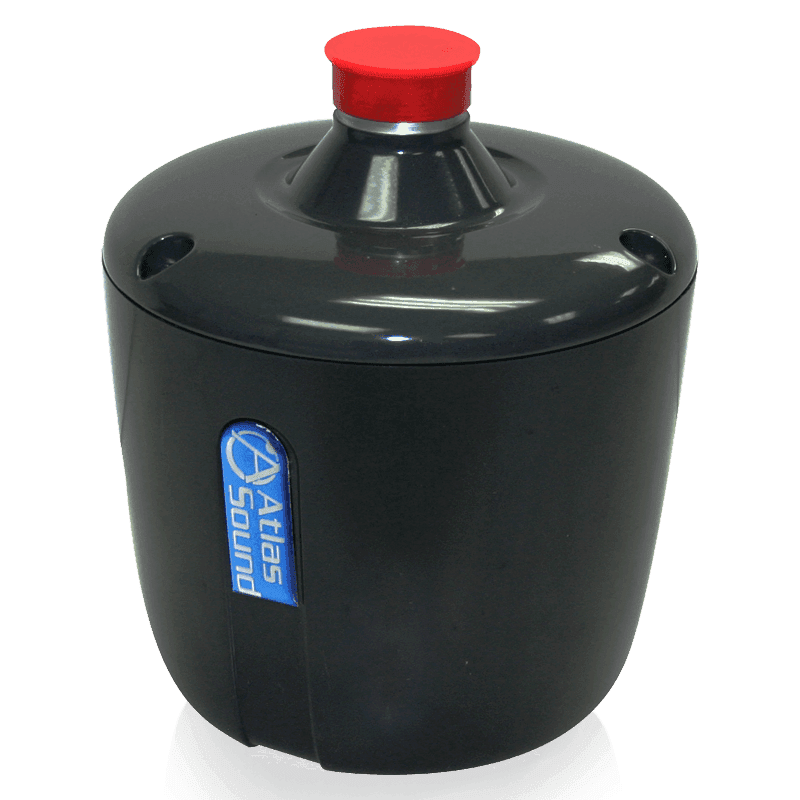

Atlas Sound PD75T Compression Driver for Large Format Horn Speakers with 75-Watt 70V Transformer
Atlas Sound PD75T Compression Driver for Large Format Horn Speakers with 75-Watt 70V Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound PD75T Compression Driver for Large Format Horn Speakers...
Model PD75T is a fully environment-resistant 75 Watt driver for indoor or outdoor applications and is recommended for use in expansive and/or high ambient sound-level areas. This model features a sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, 2" voice coil and offers a plane wave frequency response of 100Hz - 3.7kHz.
This unit, which is comprised of a transformer with 16? bypass, will meet a variety of applications. The PD75T provides screw-type terminals for matching direct to the 16? voice coil impedance and a built-in varnish impregnated, multi-tap 70.7 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover.
The PD75T is terminated in a standard 1 3/8"-18 thread male couplings for use with screw-on horns, or with AtlasIED Model YDA-TH adapters for bolt-on large format horns. Diaphragms are replaceable with appropriate equipment. A replacement diaphragm, model PD75TDIA, is available.
Internal components are enclosed within a protective die-cast and polycarbonate injection molded housing and finished in gray baked epoxy.
Features
-
Outstanding Sound Reproduction and Power Handling for Signaling, Music, and Public Address Systems
-
Extended Frequency Response Range for Optimum Intelligibility
-
75 Watt Power Rating
-
Environment-Resistant Construction for Indoor/Outdoor Use
-
Offered with Transformer and 16Ω Tap
Specs
| Plane Wave Frequency Response | 100Hz - 3.7kHz |
| Transformer Taps | 2.36, 4.7, 9.4, 19, 38, & 75 Watts |
| Power Rating | 75 Watts |
| SPL 1mW PWT | 116dB Avg. 300 - 3,700 Hz |
| Certifications | UL1480A |
| Height | 7 1/8" (181mm) |
| Diameter | 6 3/16" (157mm) |
| Weight | 8.2lbs (3.72kg) |
