Atlas Sound FC104T72 4" Ceiling Speaker with Transformer
Atlas Sound FC104T72 4" Ceiling Speaker with Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

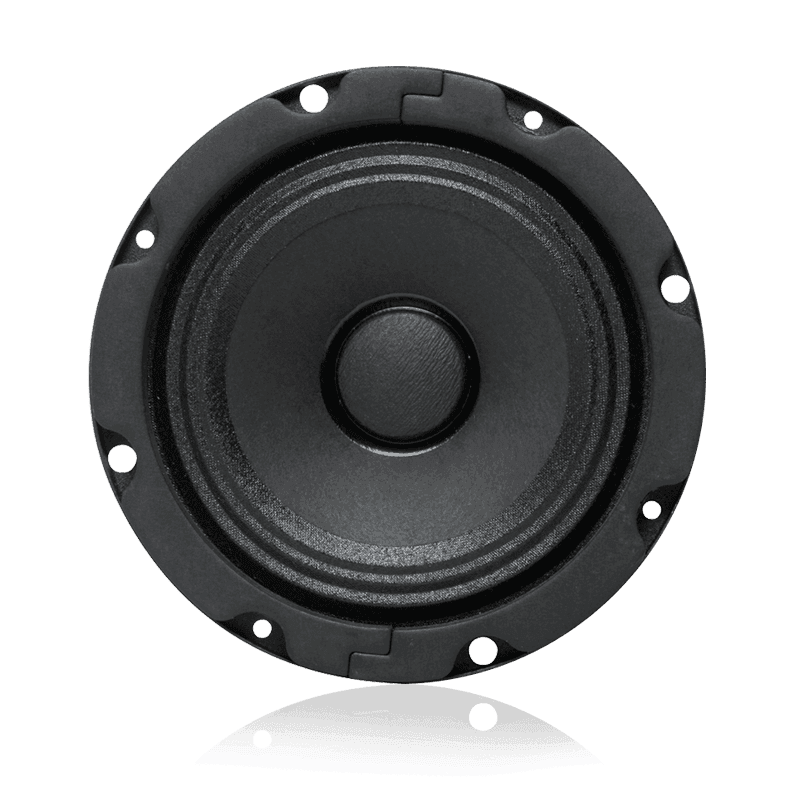

Atlas Sound FC104T72 4" Ceiling Speaker with Transformer
This compact, full-range, 4" (127mm) loudspeaker with a LT-72 transformer is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104 also offers a wide dispersion angle which reduces the number of loudspeakers necessary to achieve total coverage in low-level distribution systems. The 10-watt, 8-ohm model (without transformer) offers a frequency response range of 150 Hz to 17 kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2 kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss. This U.S.-made loudspeaker is available with six different factory-installed line matching transformers (see chart below) to meet a variety of project requirements. A dual-purpose bracket securely mounts the transformer in a low profile position and enables torsion spring mounting found on many Atlas Sound baffles.
Features
-
Efficient Wide-Range Frequency Response
-
Ideal for Public Address and Background Music Installations
-
Includes 4 Watt 70-Volt Transformer
-
Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
-
Mounts a Large Selection of Atlas Sound 4" Grilles
-
Offers Proven Performance with Wide-Angle Sound Dispersion
-
UL1480 Listed for General Signaling
-
UL Certified, Safety Listed to UL2043
Specs
| Speaker Type | High Compliance |
| Sensitivity | 94dB (1W/1m) |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, & 4 Watts |
| Dispersion | 135° (-6dB, 2 kHz octave band) |
| Depth | 4" (10.16 cm) |
| Shipping Weight | 2.67 lbs (1.21 kgs) |
| Safety Listed | 1480, 2043 |
