Atlas Sound ECM-20SH 20A AC Power Conditioner and Spike Suppressor (Single Housing)
Atlas Sound ECM-20SH 20A AC Power Conditioner and Spike Suppressor (Single Housing) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound ECM-20SH 20A AC Power Conditioner and Spike Suppressor ...

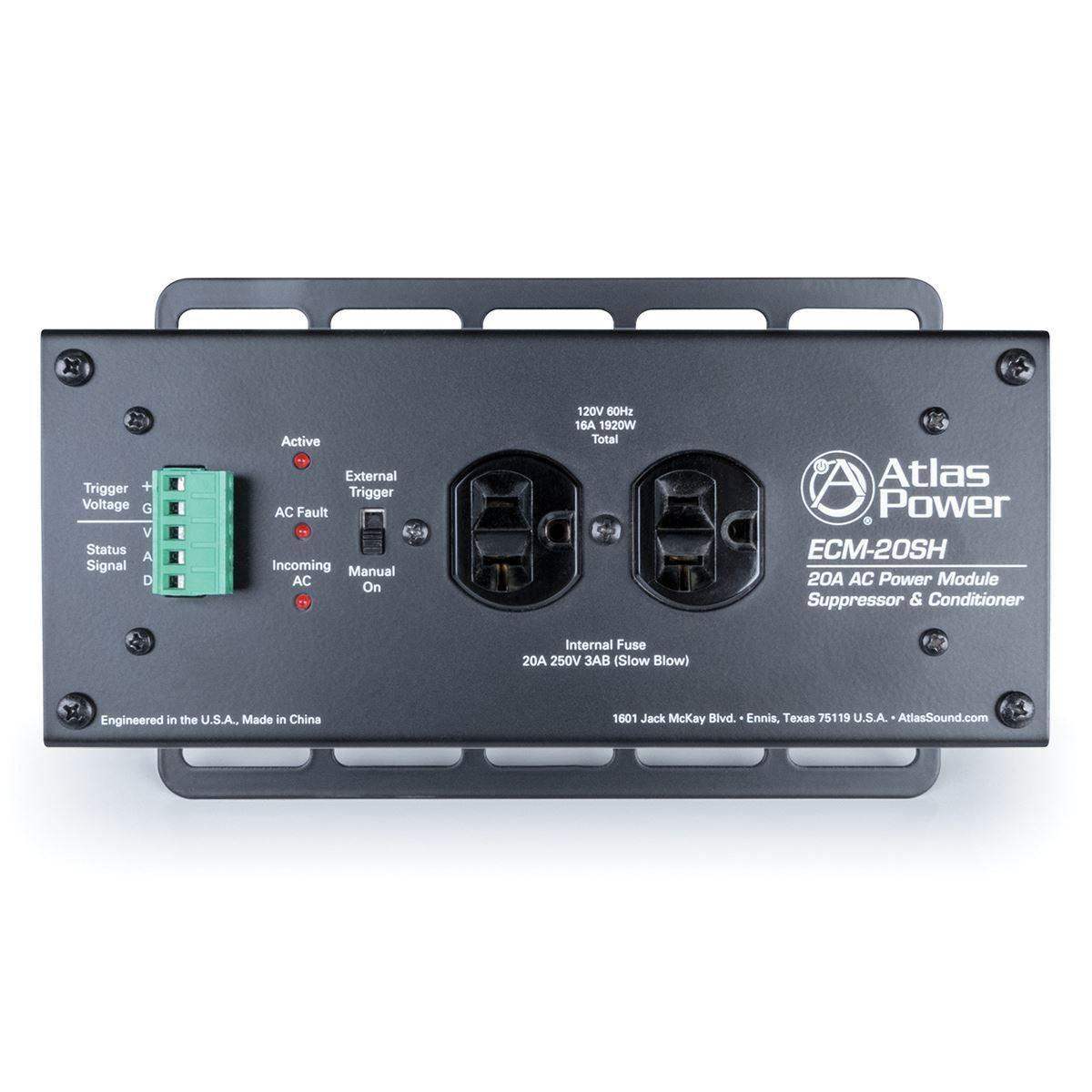

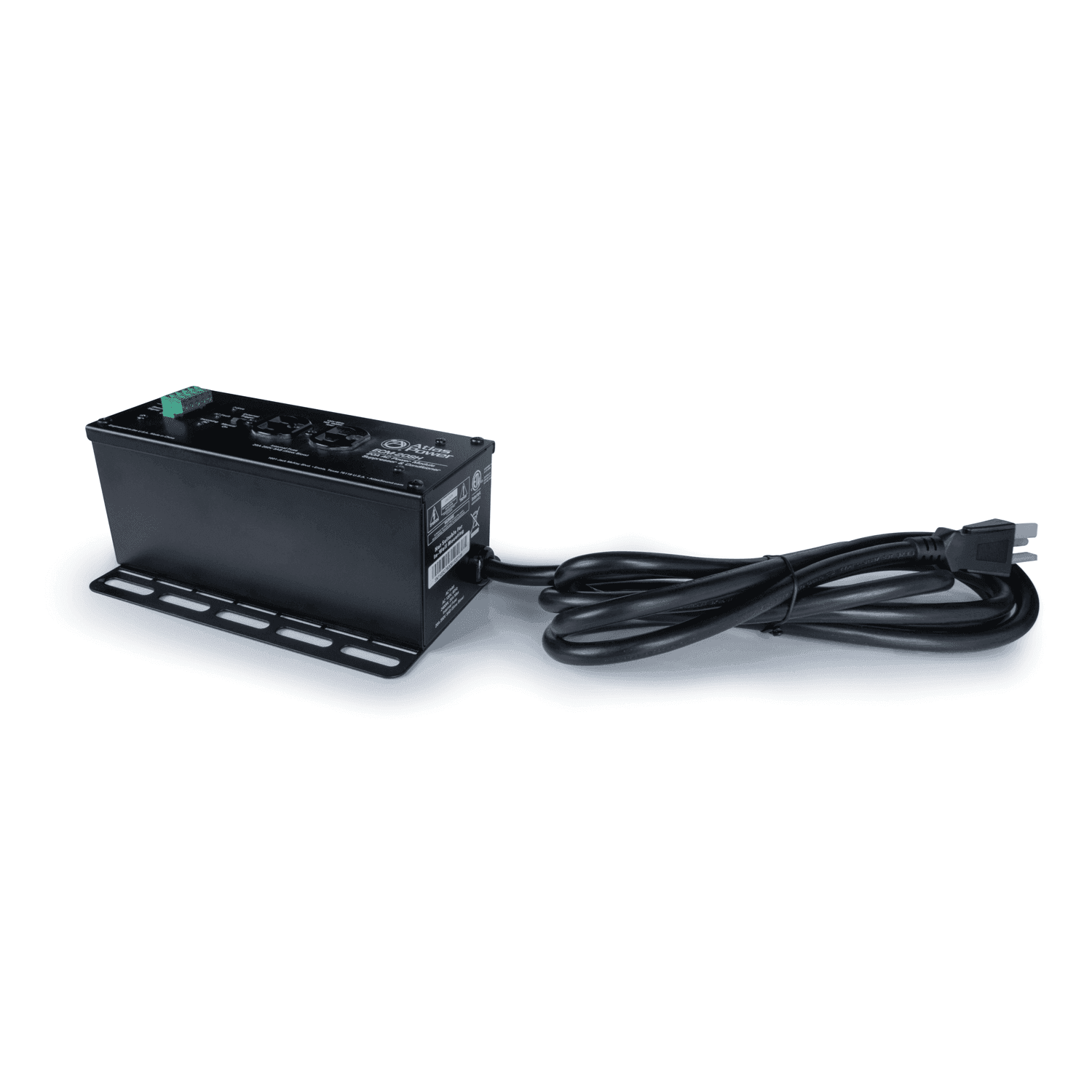

The Atlas Power ECM-20SH is a 120V 60Hz AC, 20A Single Housing (SH) Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an Atlas Power Sequence controller, ECS-6RM or the ECS-3, up to 1000ft away.
The ECM-20SH features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies. If an AC spike or surge occurs, the ECM-20SH also incorporates Clamping Suppression technology to prevent the unwanted energy from getting into your AV system. Other features include a Manual Bypass Switch, Incoming AC presence LED, Active LED and an AC Fault indicator. When interfaced with the ECS-6RM Sequencer controller, Extreme Voltage Shutdown Circuitry (EVS) is active, along with Voltage and Current status readings.
Features
-
2 Outlets, 20A
-
Radio Frequency and Electromagnetic Interference Filtering
-
Spike & Surge Suppression
-
Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
-
AC Fault Indicator
-
Fuse Protection @ 20A Slow Blow
-
Manual Bypass Switch
-
Active Outlet LED
-
RoHS Compliant
Specs
| Current Rating | 20 Amps |
| Power Requirement | 120V 60Hz |
| Certified to Safety Listing | MET (UL 1449) |
| Operating Voltage | 102-132VAC |
| Minimum Spike Clamping Voltage | 460 VRMS @ 3000A |
| Maximum Spike Clamping Voltage | 6000V |
| Power Consumption | 5 Watts |
| AC Mains Power Cord | 9' (3m) |
| Height | 3.0" (76.2mm) |
| Width | 8.5" (215.9mm) |
| Depth | 3.5" (88.9mm) |
| Weight | 5.5 lbs (2.49 kg) |
