Atlas Sound CD42 40° X 20° Constant Directivity Re-Entrant Paging Horn
Atlas Sound CD42 40° X 20° Constant Directivity Re-Entrant Paging Horn is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

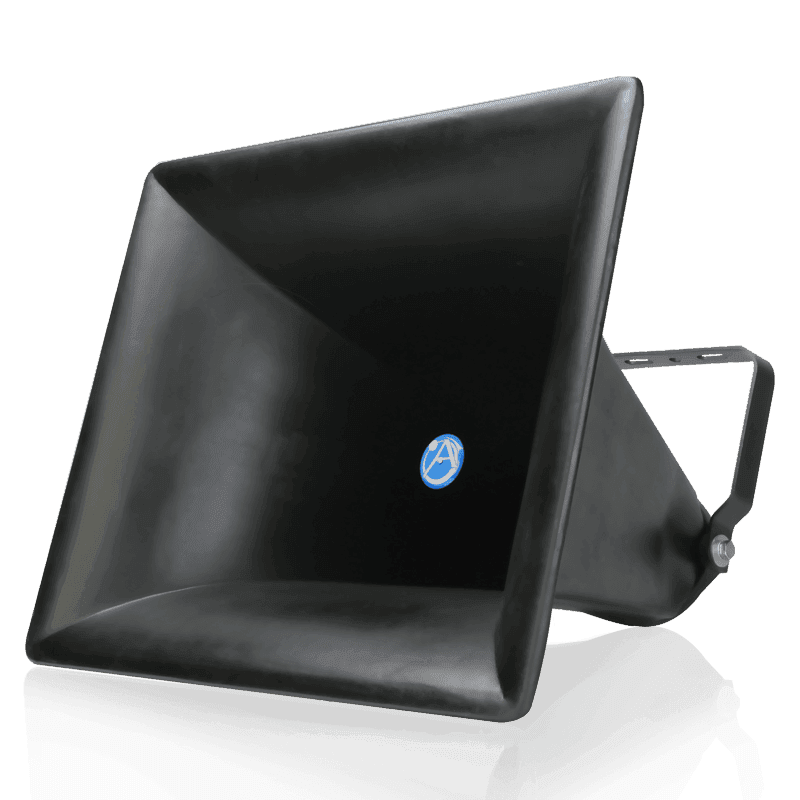

Atlas Sound CD42 40° X 20° Constant Directivity Re-Entrant Paging Horn
The Industry's Only Constant Directivity Re-Entrant Horn, CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.
With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters. Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.
Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.
Features
-
Coverage of 40° x 20° Across a Wide Frequency Range for Predictable Beamwidth Control
-
Nominal Frequency Response of 800Hz - 10kHz for High-Intelligibility Voice, Signaling
-
Environment-Resistant Construction for Outdoor/ Indoor Applications
-
Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
-
Patented 180° Gimbal-Mount for Installation Flexibility
Specs
| SPL (1W/1M) w/ PD60 Driver | 113dB |
| Dispersion | H, 40°, ±10°, 800Hz-10kHz, V, 20°, ±10°, 2kHz-10kHz |
| Low Frequency Cut Off | 300Hz |
| Air Column Length | 5' |
| Height | 21 1/4" |
| Width | 25 1/2" |
| Depth | 22" |
