Atlas Sound 12CXT60 12" Coaxial Compression Driver with 70.7V/100V-60W Transformer

$636.99 $792.99

Shipping calculated at checkout.

AtlasIED | SKU: 12CXT60

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

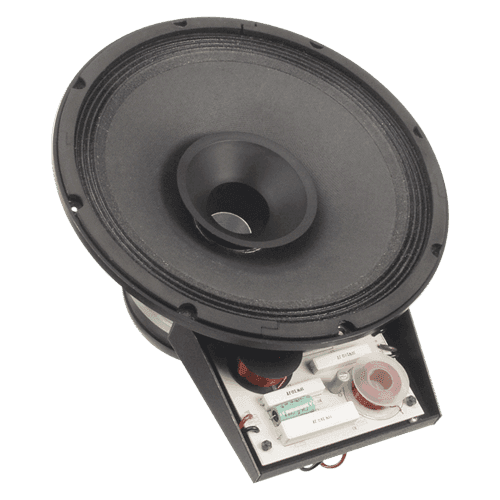

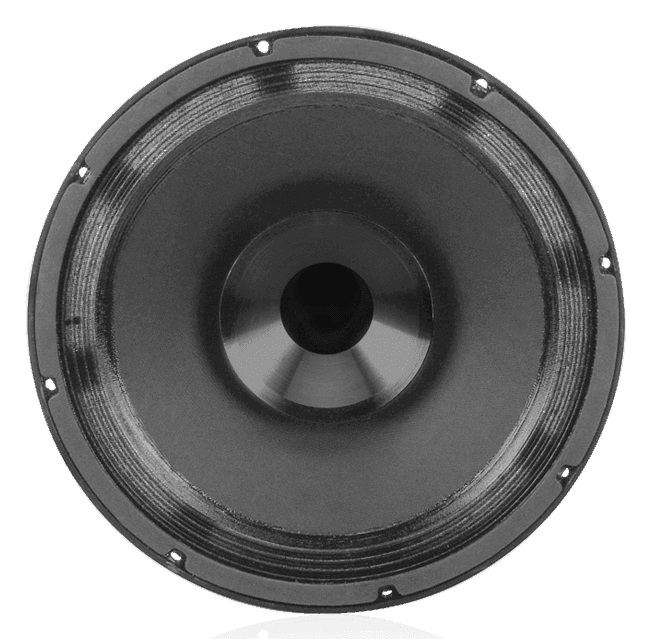

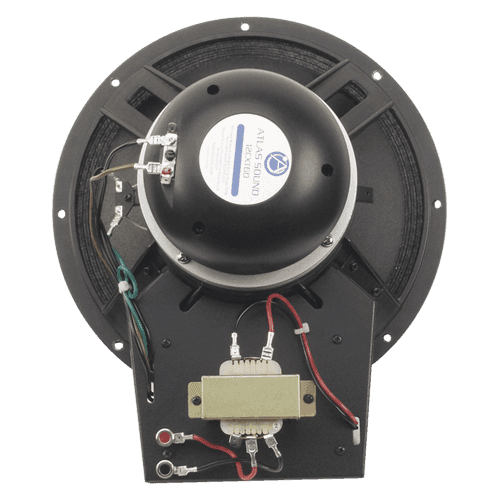

The 12CXT60 is a 250 watt loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, true compression driver. With the addition of a factory installed, high efficiency, 60W, 70.7/100V step down line transformer. The unit features a curvilinear, treated paper cone for lower harmonic distortion and a built-in crossover network for proper frequency transition between the two reproducers. The 12CXT60 operates within a frequency response range of 45 Hz -18 kHz (#177;10dB) with a sensitivity of 99dB and a dispersion angle of 90#176; (-6dB/2kHz octave band).

Features

1" Exit Compression Driver Coupled to a Specially Designed Conical Wave-Guide Horn
90 Degree Conical Dispersion (2 kHz Octave Band)
High Efficiency Cone Woofer Optimally Matched to High Frequency Device via a Specially Designed Crossover to Insure Even Transition
Perfectly Suited for Use with Atlas Sound "Q" Series Enclosures

Specs

Frequency Response	45Hz - 18kHz
Sensitivity	95.5dB (1W/1m) Average
Power Taps	7.5, 15, 30, 60
Speaker Type	Compression Driver Coaxial
Dispersion	90°
Depth	8" (20.32 cm)
Shipping Weight	27.00 lbs (12.27 kgs)
