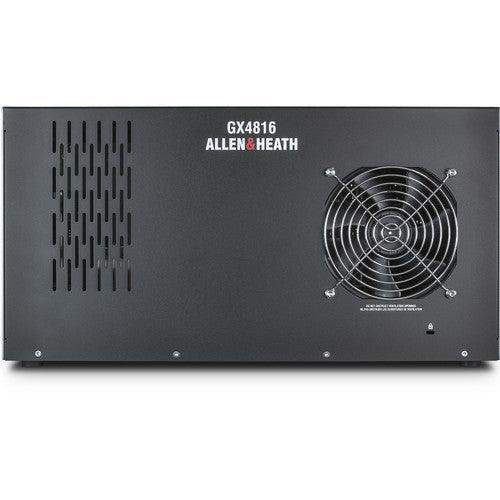

Allen & Heath AH-GX-4816 48x16 XLR In/Out Portable GX Expander with DX Sockets

Authorized Dealer

Shipping calculated at checkout.

Allen & Heath | SKU: AH-GX-4816

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

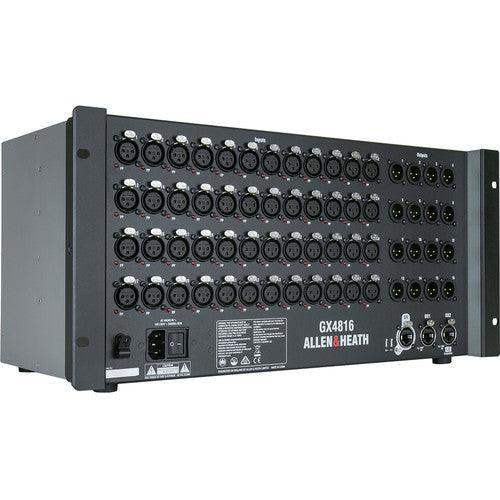

Designed for SQ and dLive mixing systems, the Allen & Heath GX4816 is a 96 kHz, 48 input / 16 output portable GX Expander with DX sockets. The GX4816 is loaded with 48 dLive mic preamps with independent phantom power LED indicators, plus 16 XLR line outputs. Additionally, two DX ports are provided for connection to up to four DX Expanders for further I/O expansion. Connection to an ME personal mixing system is possible via the DX2 socket. The unit can be placed on the floor or rack mounted (5 RU) with the included rack ears. The Allen & Heath GX4816 ships with a power cord.

Features

For dLive and SQ Series Mixing Systems
48 x dLive Mic Preamps via XLR Inputs
Individually Selectable Phantom Power
96 kHz Audio
16 x Balanced XLR Line Outputs
Primary GX etherCON Port + 2 x DX Ports
Two Expanders per DX Port
Works with ME Personal Mixing System
Preamp Control via dLive or SQ Mixer
Stagebox Form Factor with Rack Ears

Specs

Inputs	Mic/Line XLR Inputs: Balanced XLR, +48V Phantom Power Mic/Line Preamp: Fully Recallable Input Sensitivity: -60 to +15 dBu Analog Gain: +5 to +60 dB, 1 dB Steps Pad: -20 dB Active Pad Maximum Input Level: +30 dBu (Pad In) Input Impedance: >4 kOhms (Pad Out), >10 kOhms (Pad In) Mic EIN: -127 dB with 15-Ohm Source Phantom Power Indication: Per Socket, Internal or External Phantom Power Sensing, Triggered at 24 V
Outputs	Analog XLR Outputs: Balanced, Relay Protected Output Impedance: <75 Ohms Nominal Output: +4 dBu = 0 dB Meter Reading Maximum Output Level: +21 dBu Residual Output Noise: -95 dBu (Muted, 22 Hz to 22 kHz)
Temperature	Operating Temperature Range: 32 to 104°F / 0 to 40°C
Power	Mains Voltage Operating Range: 100 to 240 VAC, 50/60 Hz Mains Power Consumption: 80 W Maximum
Dimensions	18.9 x 10.0 x 9.0" / 48.0 x 25.4 x 22.8 cm
Weight	17.6 lb / 8.0 kg
