Allen & Heath AH-DX164-W 16-In / 4-Out 96 kHz Expander

Authorized Dealer

Shipping calculated at checkout.

Allen & Heath | SKU: AH-DX164-W

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The Allen & Heath DX164-W 16-In / 4-Out 96 kHz Expander is a wall- or floor-mountable expander that adds remote I/Os to a dLive, Avantis, or SQ mixer or to an AHM audio matrix processor. It provides 16 balanced XLR mic-/line-level inputs with individually configured Phantom Power, and 4 balanced XLR line outputs. No configuration is required, just connect to your mixer and you're ready to go. Firmware updates are handled automatically by the mixer.

Features

For dLive, Avantis, SQ Mixer
For AHM Audio Matrix Processor

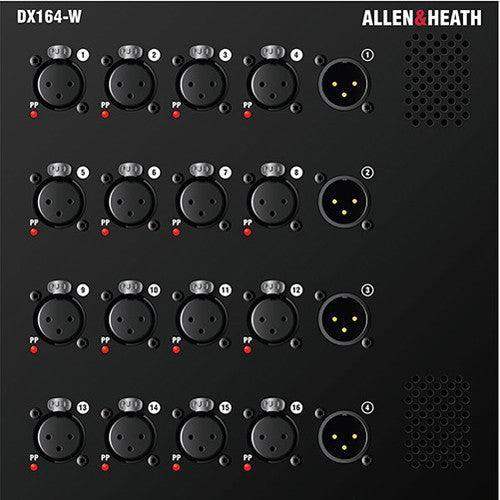

16 XLR Balanced Mic Preamps, +60 dB Gain
4 XLR Balanced Line Outs/Relay-Protected
Plug-and-Play Design
Phantom Power, -20 dB Pad
Redundant and Cascade Modes
Connects via Single Cat 5e Cable

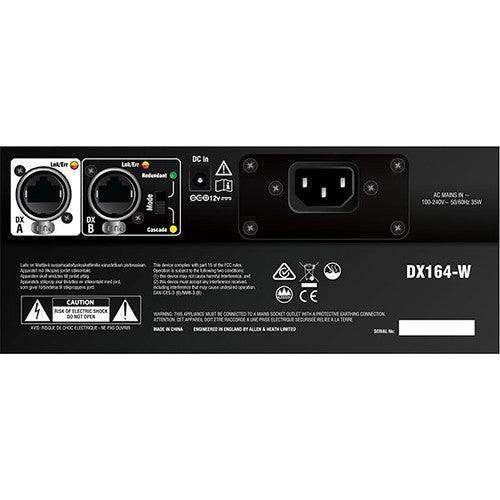

IEC Mains Power, 12 VDC Backup
Wall or Floor Mount

Specs

General

Compatibility	Allen & Heath AHM / dLive / SQ
Inputs	Mic/Line Inputs: 16 x Balanced XLR, +48 V Phantom Power Mic/Line Preamp: Fully Recallable Input Sensitivity: -60 to +15 dBu Analog Gain: +5 to +60 dB, 1 dB steps Pad: -20 dB Active PAD Maximum Input Level: +30 dBu (PAD In) Input Impedance: >4 Kilohms (Pad Out), >10 Kilohms (Pad In) Mic EIN: -127 dB with 150 Ohms Source
Outputs	Analogue Outputs: 4 x XLR Balanced, Relay-Protected Output Impedance: <75 Ohms Nominal Output: +4 dBu = 0 dB Meter Reading Maximum Output Level: +22 dBu Residual Output Noise: -92 dBu (Muted, 20 Hz to 20kHz) / -90 dBu (Muted, 20 Hz to 40kHz)
Power	Mains Voltage Operating Range: 100 to 240 VAC, 50/60Hz Mains Power Consumption: 35 W max DC Input: 12 VDC, 3 A max

Inputs / Outputs

Connector 1	16x XLR Female
Connector 2	4x XLR Male

Environmental

Operating Temperature

32 to 95°F / 0 to 35°C
