Allen & Heath AH-DLIVE-GPIO General Purpose I/O Interface

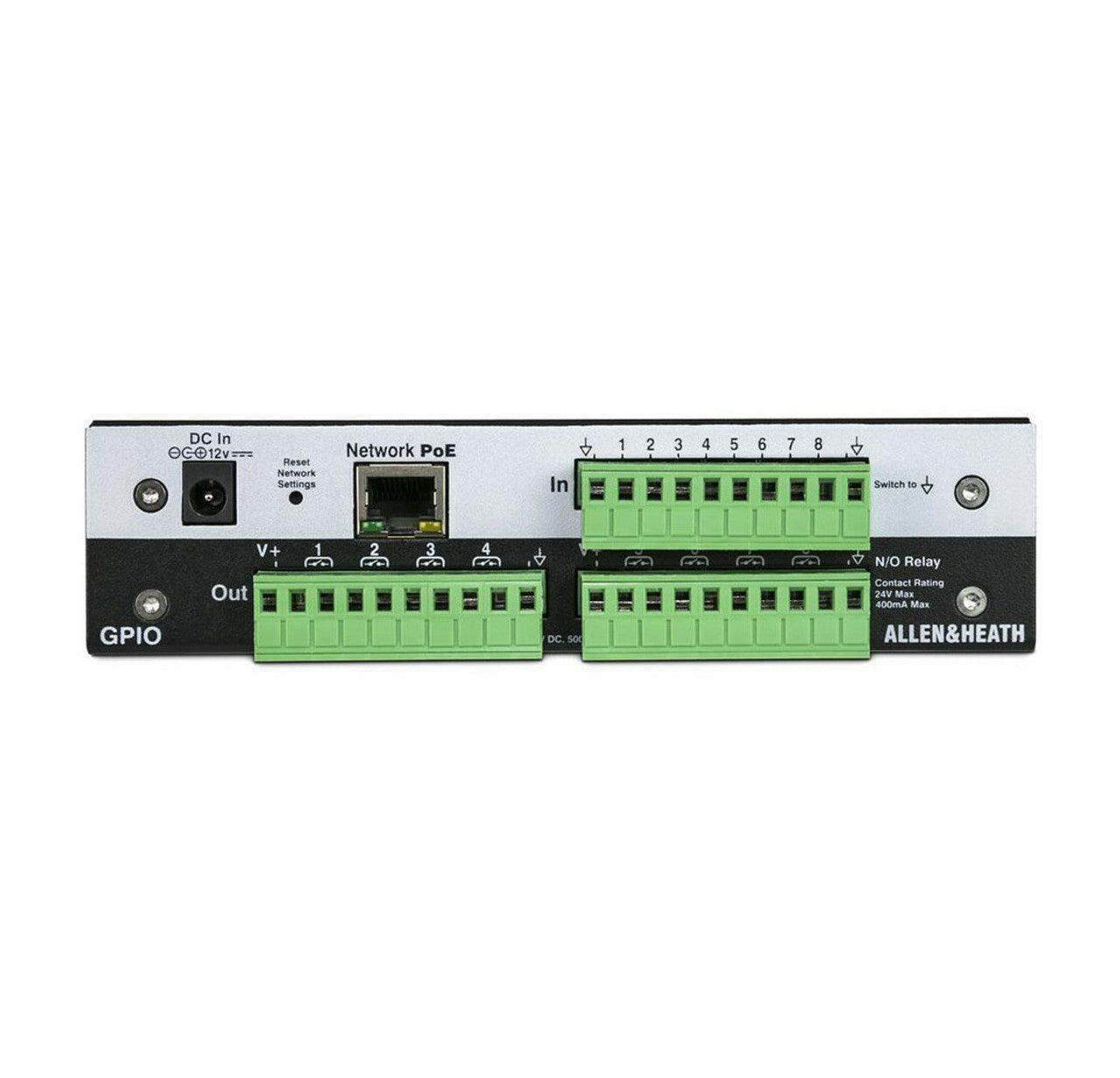

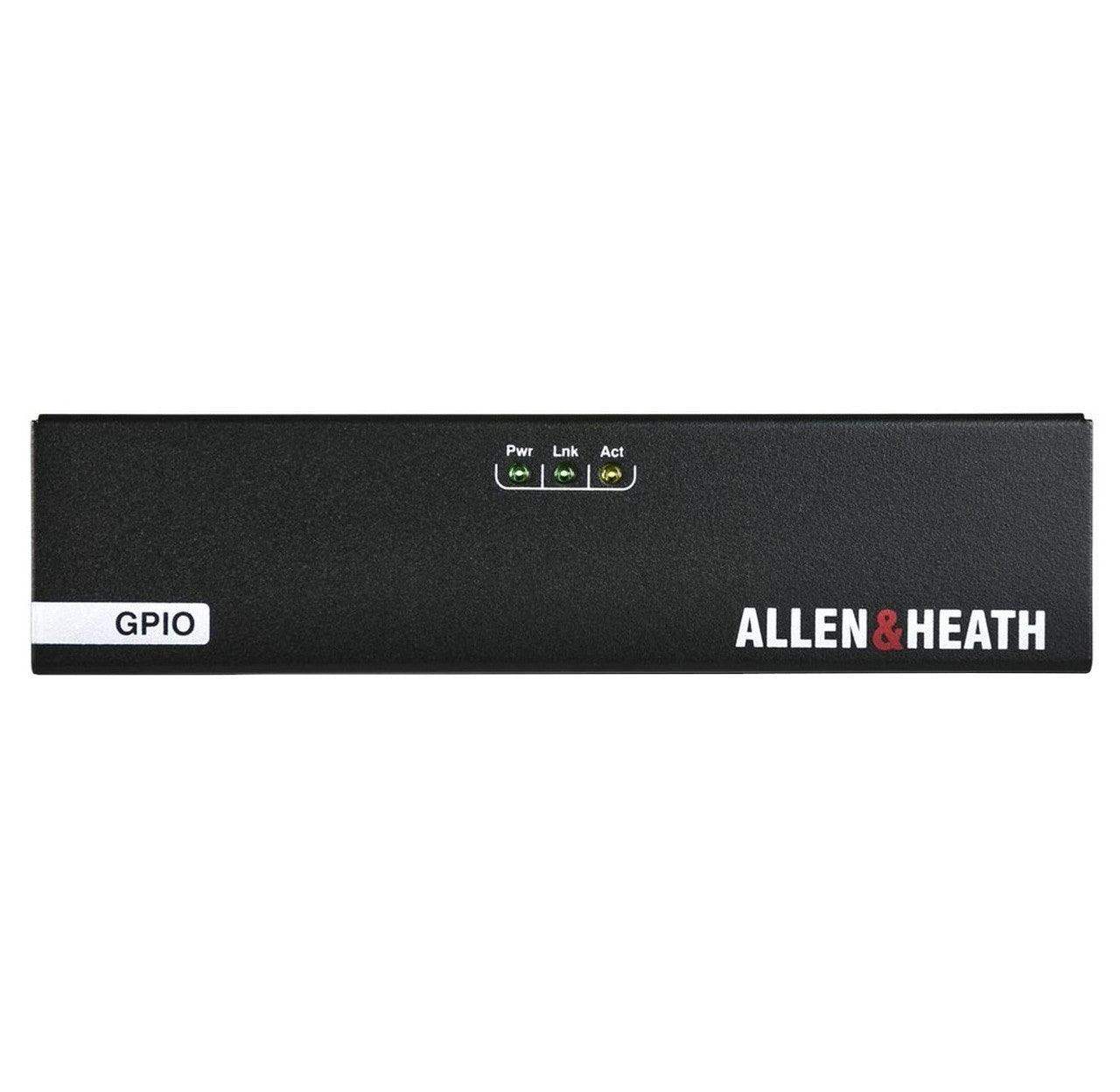

The General Purpose I/O Interface (GPIO) from Allen & Heath is an all-purpose network device that enables third-party hardware integration to a dLive, Avantis, or AHM system. The GPIO provides 8 opto-isolated inputs and 8 normally open (N/O) relay outputs on Phoenix connectors, as well as 2x +10V DC outputs. This interface is a great choice for several types of applications, from EVAC (alarm/system mute), broadcast (on-air lights, fader start logic), theater automation (curtains, lights), and much more.

Effortlessly incorporate the GPIO in any size or style of setup. The unit can be operated free-standing on a desktop or tabletop. For more permanent setups, it can be installed in a 19” rack (1U height, one-half width) using optional mounting accessories (sold separately). Use a single Cat5 cable to connect up to 8 GPIO modules to a dLive system directly, or via a 100Mb/s network switch.

Features

• Up to 8 networked GPIO units can be added to a dLive/Avantis system
• Networked Cat5 connection to Avantis mixer, dLive MixRack or Surface (<100m)
• 8 opto-isolated inputs
• 8 normally open (N/O) relay outputs, one of them configurable to Normally Closed output (N/C)

Specs

• System
  • Relay Output Max Voltage: 24V
  • Relay Output Max Current: 400mA
  • Input: Switched to ground
  • External Power Output: +10VDC / 500mA max
  • Operating Temperature Range: 32°F to 95°F (0°C to 35°C)
  • Power Supply: 12V DC via external PSU (1A max) or PoE (IEEE 802.3af-2003) (0.9A max)
