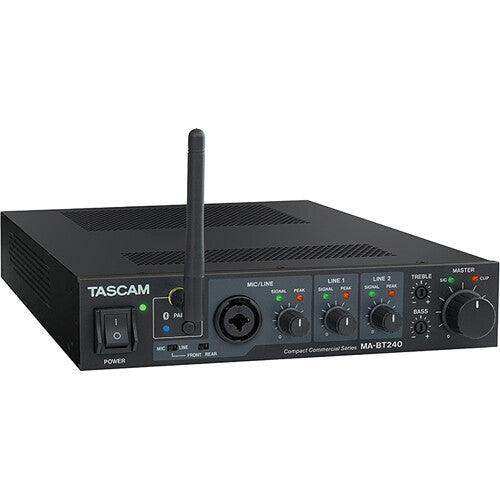

Tascam MA-BT240 240W Mixing Amplifier with Bluetooth Extension

Authorized Dealer

$699.00 $549.00

Shipping calculated at checkout.

Tascam | SKU: -

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Ideal for commercial spaces, institutions, waiting rooms, and more, the MA-BT240 from Tascam is a versatile combo audio mixer and amplifier with 120W for two channels or 240W for one channel. With comprehensive front-panel mixing, reliable onboard Bluetooth, and both low- and high-impedance I/O, the MA-BT240 wears many hats.

Ready for Low- and High-Impedance Speaker Systems

The MA-BT240 supports both high-impedance and low-impedance speaker connections. With the ability to support 70 or 100V systems as well as pro-audio speaker equipment, the MA-BT240 is ideal for practically any small-format commercial amplification application.

Reliable Class-D Amplification

Highly efficient Class-D amplification gives the MA-BT240 high output for its compact size. Delivering an impressive output of 120W on 2 channels at 4 or 8 ohms for low-impedance systems, and 240W on 1 channel at 100/70V for high-impedance systems, the MA-BT240 delivers plenty of power for moderate commercial spaces.

Onboard Bluetooth Receiver

The MA-BT240 makes it simple to stream music wirelessly with its built-in Bluetooth receiver. The Bluetooth antenna is mounted on the front panel for stable wireless reception. You can also extend the antenna with commercially available RP-SMA wire, allowing you to place it in the optimal position for your specific space.

Built-In Mixer with Mic and Line Inputs

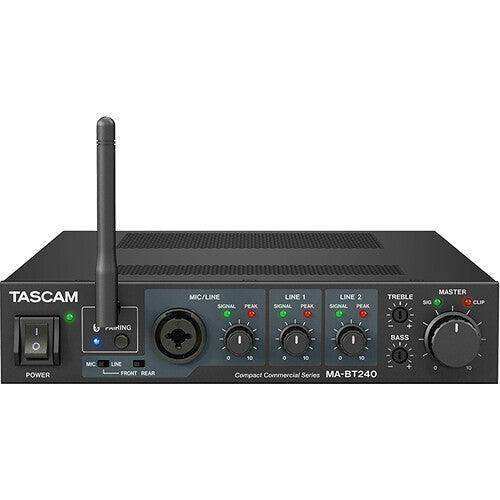

In addition to Bluetooth connectivity, the MA-BT240 is equipped with a switchable mic/line input with ducking function as well as two additional line inputs for external audio players. Each input can be mixed with dedicated knobs on the front panel, with signal and peak indicator lights to help you optimize signal levels at a glance.

EQ and High-Pass Filter on Output

The MA-BT240 makes it easy to optimize your audio for the acoustics of your space. The output features a dedicated high-pass filter to avoid distortion with high-impedance systems as well as treble and bass boost/cut controls to fine-tune the sonic response of your system. Output can also be switched between stereo and mono operation to adapt to your speaker system configuration.

Compact 1 RU Half-Rack Size

With its compact half-rack size, the MA-BT240 is space efficient, even when simply placed on a desktop. The optional AK-RM05 or AK-RS1 rack kit (sold separately) allows you to mount the MA-BT240 in any standard equipment rack.

Features

For Commercial Spaces and Institutions
Efficient Class-D Amplifier
120W x 2 Channels or 240W x 1 Channel
Low-Impedance 4- or 8-Ohm Outputs
High-Impedance 100 and 70V Taps
Mic/Line Input with Switchable Ducking
2 RCA Stereo Line Inputs
Front-Panel Knob Mixing for all Inputs
Compact 1 RU Half-Rack Design
Includes Block Cables and Power Cable

Specs

Number of Channels	3 Input / 2 Output
Amplifier Power Rating	70 V / 100 V: 1x 240 W One Channel Driven 4 Ohms / 8 Ohms: 2x 120 W Both Channels Driven

Load Impedance / Voltage	4 / 8 Ohms per Channel 70 / 100 V
DSP	Yes

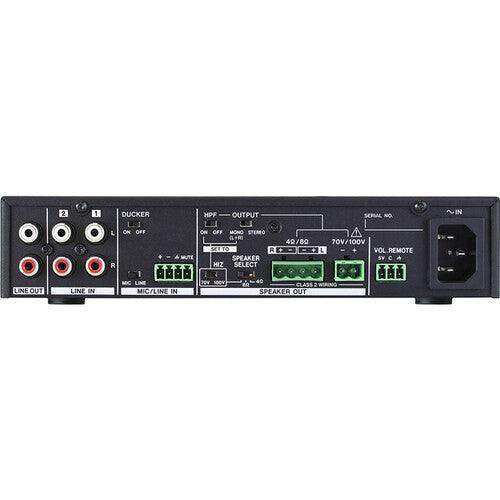

Audio I/O	1x Combo XLR-1/4" 3-Pin Balanced Line/Mic Input (Front Panel) 1x Block 4-Pin Balanced Line/Mic Input (Detachable) 2x Stereo RCA Coaxial Unbalanced Line Input 1x Stereo RCA Coaxial Unbalanced Line Output
Digital Audio I/O	No
Network I/O	No
USB I/O	No
Rackmount Size	1 RU (1/2-Rack)
