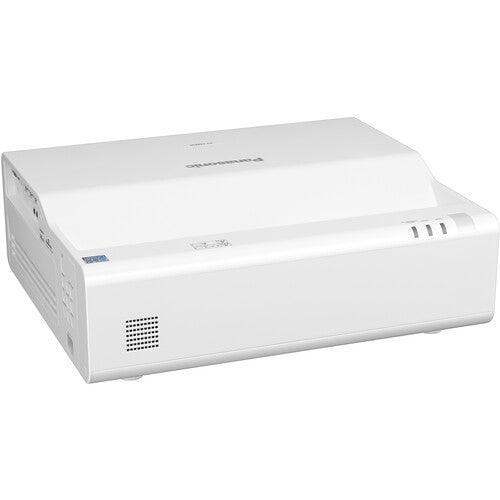

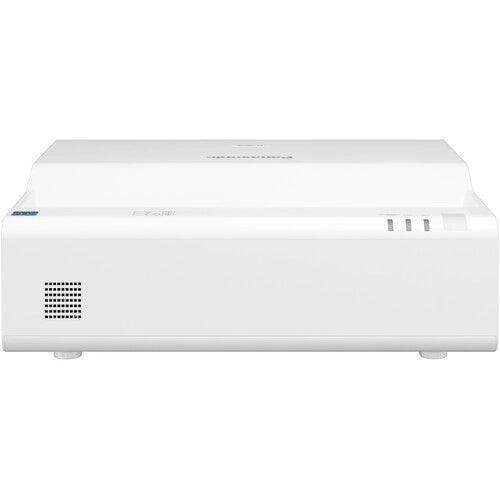

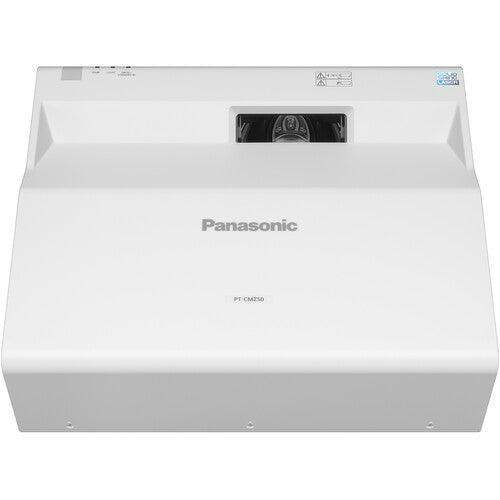

Panasonic PT-CMZ50U 5200 Lumens, WUXGA, Ultra Short Throw, Laser (White)

Panasonic CMZ50 5200-Lumen WUXGA Ultra-Short Throw Laser Projector (White)

The PT-CMZ50 projector, an ultra-short throw LCD laser projector delivering exceptionally bright visuals without shadowing. Perfect for education, corporate and museum environments, the PT-CMZ50 projector delivers an expansive 80-inch image from approximately 1cm (1/3 in.), allowing presenters to share information confidently without worrying about on-screen shadows or being blinded by light from the lens.

Features

• WUXGA (1920 x 1200 pixels)
• 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
• 5,200 Lumens
• Communicate Clearly and Comfortably
• Flexible, Versatile, and Easy to Install
• Fast and Frictionless UX

Specs

Technical Specifications

LENS
Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (Projection distance: 1 cm [1/3 in] for 80-inch image)
Resolution
WUXGA (1920 x 1200 pixels)
Installation
Ceiling/floor, front/rear, free 360-degree installation
Screen Size (Diagonal)
2.03-3.05 m (80-120 in), 16:10 aspect ratio
Contrast Ratio*1
3,000,000:1 (Full On/Full O­) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Light source
Laser diodes
LCD panel | Panel size
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
LCD panel | Display method
Active matrix
LCD panel | Pixels
2,304,000 (1920 x 1200) pixels
Projector type
LCD projector
Center-to-corner zone ratio*1
85 %
Time until light output declines to 50 %*3
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Light Output
5,200 lm
LCD Panel | Display System
Transparent LCD panel (x 3, R/G/B)
Digital Zoom Extender *4
Throw ratio 0.235-0.288:1*5 (Corresponding value)
Power supply
AC 100 V-240 V, 50/60 Hz

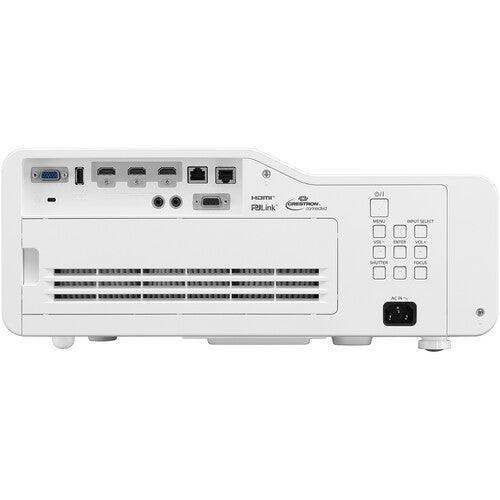

Terminals | VARIABLE AUDIO OUT
M3 stereo mini-jack x 1
Terminals | SERIAL IN
D-sub-9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals | LAN
RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink [Class 2]
Terminals | LAN/DIGITAL LINK
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], HDCP, Deep Color, 4K/30p*6 signal input)
Terminals | AUDIO IN
M3 stereo mini-jack x 1
Terminals | Computer In
D-sub-15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | USB (VIEWER/WIRELESS/DC OUT)
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A)
Power consumption*8 | On-mode power consumption (Light Power) [Normal]
290 W (AC 100-120 V), 280 W (AC 200-240 V)
Power consumption*8 | On-mode power consumption (Light Power) [Eco]
215 W (AC 100-120 V), 205 W (AC 200-240 V)
Power consumption*8 | On-mode power consumption (Light Power) [Quiet]
210 W (AC 100-120 V), 200 W (AC 200-240 V)
Protocol versions
IPv4
Terminals | HDMI 1/2 IN
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
Terminals | HDMI OUT
HDMI 19-pin x 1 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal output)
Dimensions (W x H x D)
495 mm x 160 mm x 421 mm (19 1/2” x 6 19/64” x 16 37/64”) (excluding feet and protrusions),
495 mm x 176 mm x 421 mm (19 1/2” x 6 15/16” x 16 37/64”) (with feet at shortest position)
Built-in Speaker
10 W monaural
Operating environment
Operating temperature
0-45 Degrees C (32-113 Degrees F)11, Operating humidity: 20-80 % (no condensation)
Cabinet materials
Molded plastic
Applicable software
Multi Monitoring & Control Software, Logo Transfer Software, Projector Network Setup Software, Presenter Light Software for Windows*12, Wireless Projector App for iOS/Android*13
Operation noise*1
35 dB (NORMAL/ECO), 26 dB (QUIET)
Filter*9
Included (Estimated maintenance time: approx. 20,000 hours)
Weight with supplied lens*10
Approx. 9.5 kg (20.9 lbs)
Control function via LAN
PJLink [Class 2], Crestron Connected, AMX Device Discovery
Power consumption*8 | Maximum power consumption
325 W (AC 100-120 V), 310 W (AC 200-240 V)
