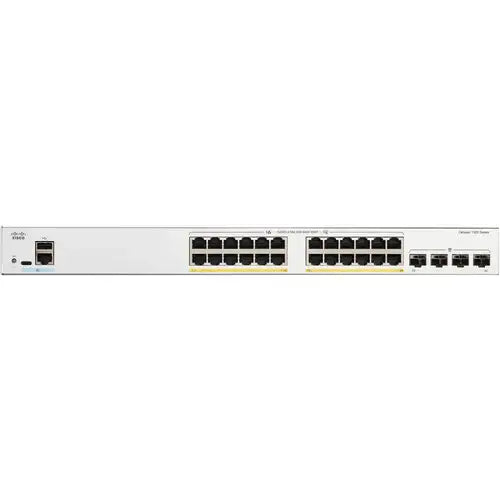

Cisco Catalyst C1300-24FP-4G 24-Port Gigabit PoE+ Compliant Managed Network Switch (370W)

Authorized Dealer

$953.00

Shipping calculated at checkout.

Cisco | SKU: C1300-24FP-4G

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Designed for small- to medium-size businesses, the Cisco Catalyst C1300-24FP-4G 24-Port Gigabit PoE+ Compliant Managed Network Switch allows you to operate security cameras, access points, VoIP phones, and other powered devices. It features 24 Gigabit-speed ports, each of which can provide up to 30W of power to compatible devices with a 370W budget. There are also four SFP slots available for 1 Gb/s fiber uplinks.

This rack-mountable managed switch delivers smooth performance with a 56 Gb/s switching capacity and 41.66 Mpps forwarding rate. It also includes advanced Layer 3 features and strong security. Front panel stacking support allows you to manage up to eight switches as though they were one virtual switch. Fan cooling keeps operating temperatures within limits.

Cisco Business Dashboard

The Cisco Business Dashboard is designed to manage Cisco Business switches, routers, and wireless access points. It simplifies traditional challenges in deploying and managing business networks while automating the deployment, monitoring, and lifecycle management of the network. The 1300 Series switches support an embedded probe as well as direct management, eliminating the need to set up a separate hardware or virtual machine onsite. The device onboarding wizard simplifies the setup and onboarding of new devices to the network.

High Reliability and Resiliency

The Cisco Catalyst 1300 Series Switches support dual images, allowing you to perform software upgrades with minimal network downtime.

Strong Security

Support for advanced network security applications such as IEEE 802.1X and port security tightly limits access to specific segments of your network. Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks.

IPv6 support

As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Catalyst 1300 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.

Advanced Layer 3 Traffic Management

The Cisco Catalyst 1300 Series Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.

Front Panel Stacking

This switch supports Front Panel Stacking for up to eight switches, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit with a single IP address.

Compact Design

The sleek and compact design for the Cisco Catalyst 1300 Series Switches provides additional deployment flexibility, including installation outside the wiring closet for sites such as retail stores, open-plan offices, and classrooms without disturbing the environment.

Specs

Inputs/Outputs	24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 4x SFP Gigabit Ethernet 1x RJ45 1x USB-A 1x USB-C
Ttackable	Yes
Switching Bandwidth	56 Gb/s
PoE Power Budget	370 W

Stackable

Yes

Protocols

Layer Services Supported	Layer 2, Layer 3
Supported Protocols	Link Aggregation DHCP Server IGMP Snooping IPv6 RADIUS IPv4 Head-of-Line (HOL) Blocking
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	9000 Bytes

Security

Security Features

DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control

Performance

Forwarding Rate	41.66 Mpps
Switching Bandwidth	56 Gb/s
Packet Buffer	1.5 MB

Computer

Flash Memory	512 MB
CPU	Dual-Core: Up to 1.4 GHz
Memory	1 GB DDR4

Electrical

PoE per Port	30 W
PoE Power Budget	370 W
Power Draw	452.3 W (Max) 21.7 W (Idle)
Input Power	100 to 240 VAC, 60 / 50 Hz
Power Supply Type	Internal

General

Certifications	CE, CSA, FCC, UL
Operating Conditions	23 to 122°F / -5 to 50°C at 10 to 90% Humidity
Storage Conditions	-13 to 158°F / -25 to 70°C at 10 to 90% Humidity
Cooling System	Fan (Noise Level 39 dB)
Mean Time Between Failures (MTBF)	0.4 Million Hours
Material of Construction	Metal
Indicator Lights	Yes
Rack Mountable	Yes
Dimensions	17.5 x 13.8 x 1.73" / 444.3 x 350 x 43.94 mm
Weight	10.1 lb / 4.6 kg

Packaging Info

Package Weight	15.77 lb
Box Dimensions (LxWxH)	22.4 x 20.3 x 4.3"
