Allied Telesis AT-X950-52XTQM-B05 ADVANCED LAYER 3 SWITCH 48X 100M/1G/2.5G/5G/10G T 4X

Allied Telesis AT-x950-52XTQm Layer 3 Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 100GBase-X, 10GBase-T - 3 Layer Supported - Modular - 300 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable

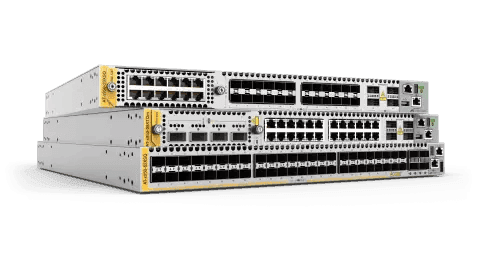

Expandable 10G/40G/100G Stackable Layer 3+ Switches

Allied Telesis x950 Series switches are ideal for the modern enterprise network core, where stacking creates a resilient local or distributed solution. These powerful switches support 100 Gigabit connectivity, and provide the capacity that today's Smart City and IoT networks need.

x950 Series switches feature a high-performing 1.92 Terabit fabric, to eliminate bottlenecks and effortlessly forward all traffic.

x950 switches feature 24 or 48 x 1/10 Gigabit SFP+ ports, or 24 or 48 x 1/2.5/5/10 Gigabit copper ports to enable flexible deployment, while 4 x built-in 40G/100G ports provide high-speed backbone connectivity. 24-port models also feature an expansion (XEM) bay to easily add more capacity. Stack multiple units for a future-proof network.

Smart City and IoT networks
Large switching and routing tables support Smart City networks and the Internet of Things (IoT). The x950 Series meets the increasing demand for the convergence of multiple services.

Network automation
Allied Telesis Autonomous Management Framework™ (AMF) meets the increasing management requirements of modern converged networks, by automating many everyday tasks. AMF has powerful features that allow an entire network to be easily managed as a single virtual device.

Vista Manager™ EX is an intuitive graphical tool for monitoring and managing AMF wired and Autonomous Wave Control (AWC) wireless devices. Full visibility and powerful features enable proactive management of large networks.

Device, network, and security management
The Device GUI on the x950 Series enables graphical monitoring of key switch features to support easy management.

Integrated into the Device GUI, Vista Manager mini supports visibility and management of AMF wired and AWC wireless network devices, making it ideal as a one-stop solution for small to medium-sized networks.

AWC is an intelligent, easy to use Wireless LAN controller that automatically maintains optimal wireless coverage. Vista Manager mini includes AWC floor and heat maps showing wireless coverage. It also supports AWC Channel Blanket hybrid operation, providing maximum performance and seamless roaming, as well as AWC Smart Connect for simplified deployment, and a resilient Wi-Fi network solution using wireless uplink connectivity.

The AMF-Security mini controller, with management integrated into the Device GUI, ensures protection against internal LAN malware threats, automatically stopping the spread of infection.

• Built-in power supply to ensure all components are being supplied with accurate voltage
• Can work as layer 3 routing for scalable network design
• Rack mounting enables you to organize wires & secure cables for professional installation
• Managed switch provides a reliable foundation for your network
• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
• Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
• Increases the stack bandwidth of the stack port further than that of a single port
• Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
• Features 48 networking ports to establish large network
• Layer 3 Switch provides dependable and powerful connectivity for maximum usability

Specs

Management & Protocols Manageable Yes Network & Communication Layer Supported 3 I/O Expansions Expansion Slot Type QSFP+ QSFP28 Number of Total Expansion Slots 4 Miscellaneous Application/Usage Network Enterprise Data Center Business Interfaces/Ports Modular Yes Uplink Port Yes Stack Port Yes Total Number of Network Ports 48 Port/Expansion Slot Details 48 x 10 Gigabit Ethernet Network 4 x 100 Gigabit Ethernet Expansion Slot Media & Performance Network Technology 100GBase-X 10GBase-T Ethernet Technology 10 Gigabit Ethernet 100 Gigabit Ethernet Media Type Supported Twisted Pair Optical Fiber Physical Characteristics Weight (Approximate) 16.98 lb Form Factor Rack-mountable Height 1.7" Width 17.4" Depth 17.7" Compatible Rack Unit 1U

General Information Product Type Layer 3 Switch Manufacturer Part Number AT-X950-52XTQM-B05 Manufacturer Website Address http://www.alliedtelesis.com Manufacturer Allied Telesis, Inc Product Model AT-x950-52XTQm Product Name AT-x950-52XTQm Layer 3 Switch Product Series x950 Brand Name Allied Telesis Power Description Input Voltage 120 V AC 120 V AC 230 V AC 230 V AC Power Source Power Supply Frequency 63 Hz 47 Hz Power Consumption 300 W Number of Power Supplies Supported 2 Number of Power Supplies Installed 2 Redundant Power Supply Supported Yes
