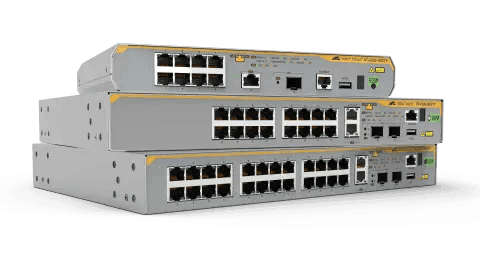

Allied Telesis AT-X330-20GTX-10 X330 SERIES L3 16PORT 10/100/1000T SW STACKABLE 2SFP+

Allied Telesis X330-20GTX Layer 3 Switch - 16 Ports - Manageable - Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 5GBase-T, 10GBase-X - 3 Layer Supported - Modular - 2 SFP Slots - 28 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Wall Mountable

Gigabit Layer 3 Access Switches

The Allied Telesis x330 Series Layer 3 Gigabit switches offer an impressive set of features in a compact fanless design, making them an ideal access solution for modern applications.

Overview
The Allied Telesis x330 Series provide an excellent access solution supporting Gigabit to the desktop for maximum performance. With MultiGigabit and 10 Gigabit copper and fiber uplinks, and a fanless design for silent operation, the x330 Series are ideal for the edge of business networks in the IoT era. With support for Layer 3 routing protocols, the x330 Series can also be deployed as distribution or small branch office core switches.

Manageable
The x330 Series run the advanced AlliedWare Plus™ fully featured operating system, delivering a rich feature set and an industry-standard Command Line Interface (CLI). This reduces training requirements and is consistent across all AlliedWare Plus devices, simplifying management.

The web-based Graphical User Interface (GUI) is an easy-to-use and powerful management tool, with comprehensive monitoring facilities.

Network Management
Vista ManagerTM EX bundled with Allied Telesis Autonomous Management FrameworkTM (AMF) meets the increasing management requirements of modern networks. While AMF allows an entire network to be securely and easily managed as a single virtual device, Vista Manager EX provides an intuitive and powerful graphical tool for monitoring and managing AMF wired, Autonomous Wave Control (AWC) wireless, and third party (SNMP) devices.

Cybersecurity
The x330 Series acting as AMF members are compatible with our AMF-Security solution, which enables a self-defending network. The AMF-Sec controller responds immediately to any internal malware threats by instructing the x330 Series to isolate the affected part of the network, and quarantine the suspect device. Vista Manager EX alerts networks administrators of threats that have been dealt with.

Network protection
Advanced storm protection features include bandwidth limiting, policy-based storm protection and packet storm protection.

Network storms are often caused by cabling errors that result in a network loop. The x330 Series provide features to detect loops as soon as they are created. Loop detection and thrash limiting take immediate action to prevent network storms.

Secure
Network security is guaranteed, with powerful control over network traffic types, secure management options, and other multi-layered security features built right in.

Network Access Control (NAC) gives unprecedented control over user access to the network, in order to mitigate threats to network infrastructure.

Features

• AlliedWare Plus Enterprise-class operating system
• Allied Telesis Autonomous Management Framework™ (AMF)
• Vista Manager EX compatible
• AMF-Security compatible
• 10G copper and fiber uplinks
• Multi-Gigabit (1/2.5/5/10G) port for flexible uplink options
• EPSRing™ and G.8032 for resilient rings
• EPSR Master
• Energy Efficient Ethernet saves power
• Upstream Forwarding Only (UFO)

Specs

Management & Protocols Manageable Yes Network & Communication Layer Supported 3 Technical Information Features Fanless Miscellaneous Application/Usage Enterprise Environmentally Friendly Yes I/O Expansions Expansion Slot Type SFP+ Number of Total Expansion Slots 2 Number of SFP Slots 2 Power Description Power Source Power Supply Power Consumption 28 W Number of Power Supplies Installed 1 Physical Characteristics Weight (Approximate) 6.61 lb Form Factor Rack-mountable Wall Mountable Height 1.7" Width 13.4" Depth 9.1"

General Information Product Type Layer 3 Switch Manufacturer Part Number AT-X330-20GTX-10 Manufacturer Website Address http://www.alliedtelesis.com Manufacturer Allied Telesis, Inc Product Model X330-20GTX Product Name X330-20GTX Layer 3 Switch Product Series x330 Brand Name Allied Telesis Interfaces/Ports Network (RJ-45) Yes Modular Yes Uplink Port Yes Stack Port Yes Total Number of Network Ports 16 Port/Expansion Slot Details 2 x 5 Gigabit Ethernet Network 2 x 10 Gigabit Ethernet Expansion Slot 16 x Gigabit Ethernet Network Media & Performance Network Technology 10/100/1000Base-T 10GBase-X 5GBase-T Ethernet Technology 5 Gigabit Ethernet Gigabit Ethernet 10 Gigabit Ethernet Media Type Supported Twisted Pair Optical Fiber
