JBL Professional VTX A8 MF – Mini Frame for JBL VTX A8 and B18

The JBL VTX A8 MF Mini Frame is a compact and lightweight array frame designed for suspending smaller arrays of VTX A8 and VTX B18 enclosures. Engineered with flexibility in mind, this accessory provides an affordable and highly practical solution for applications that demand professional rigging without the bulk of larger frames.

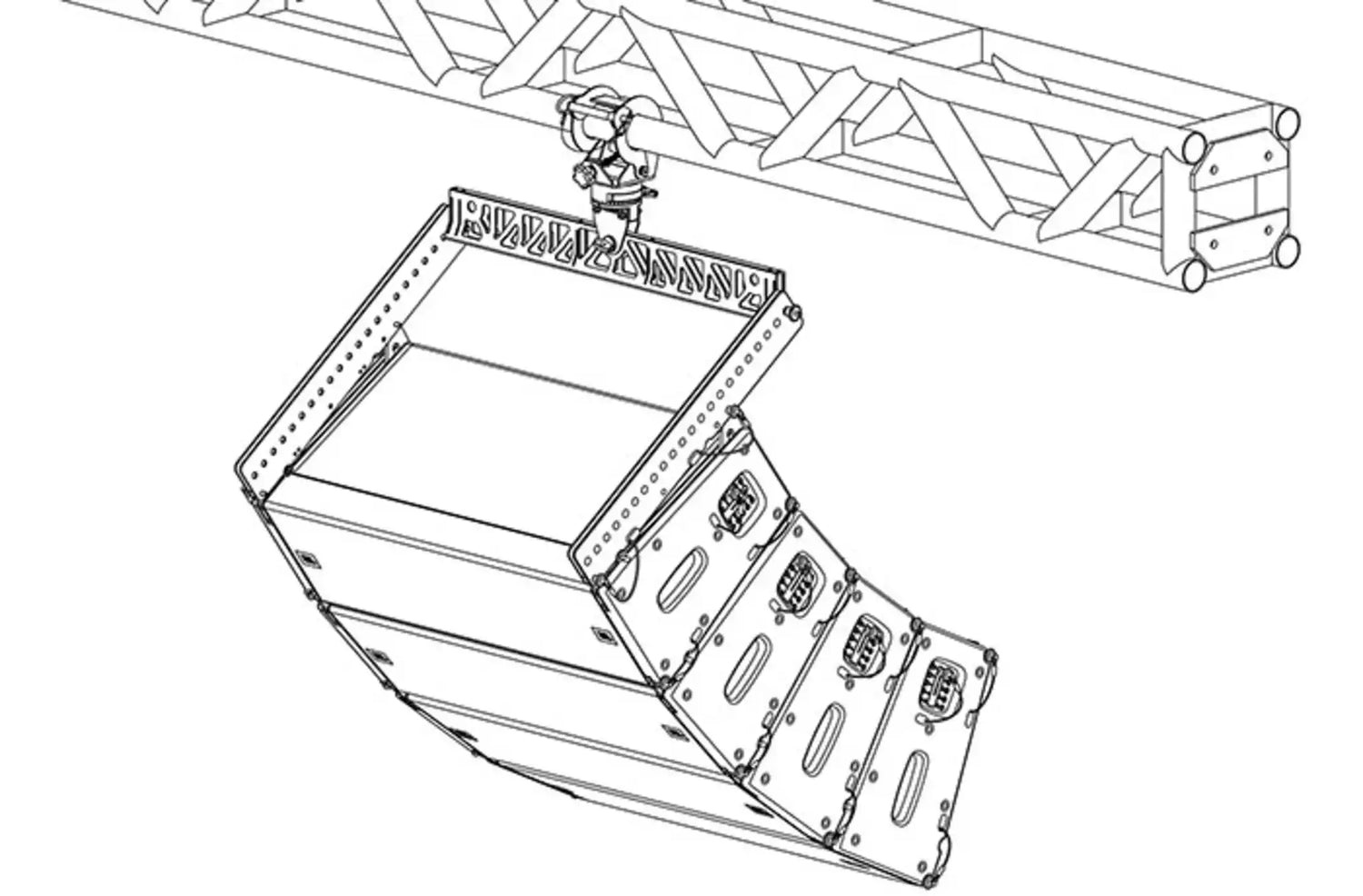

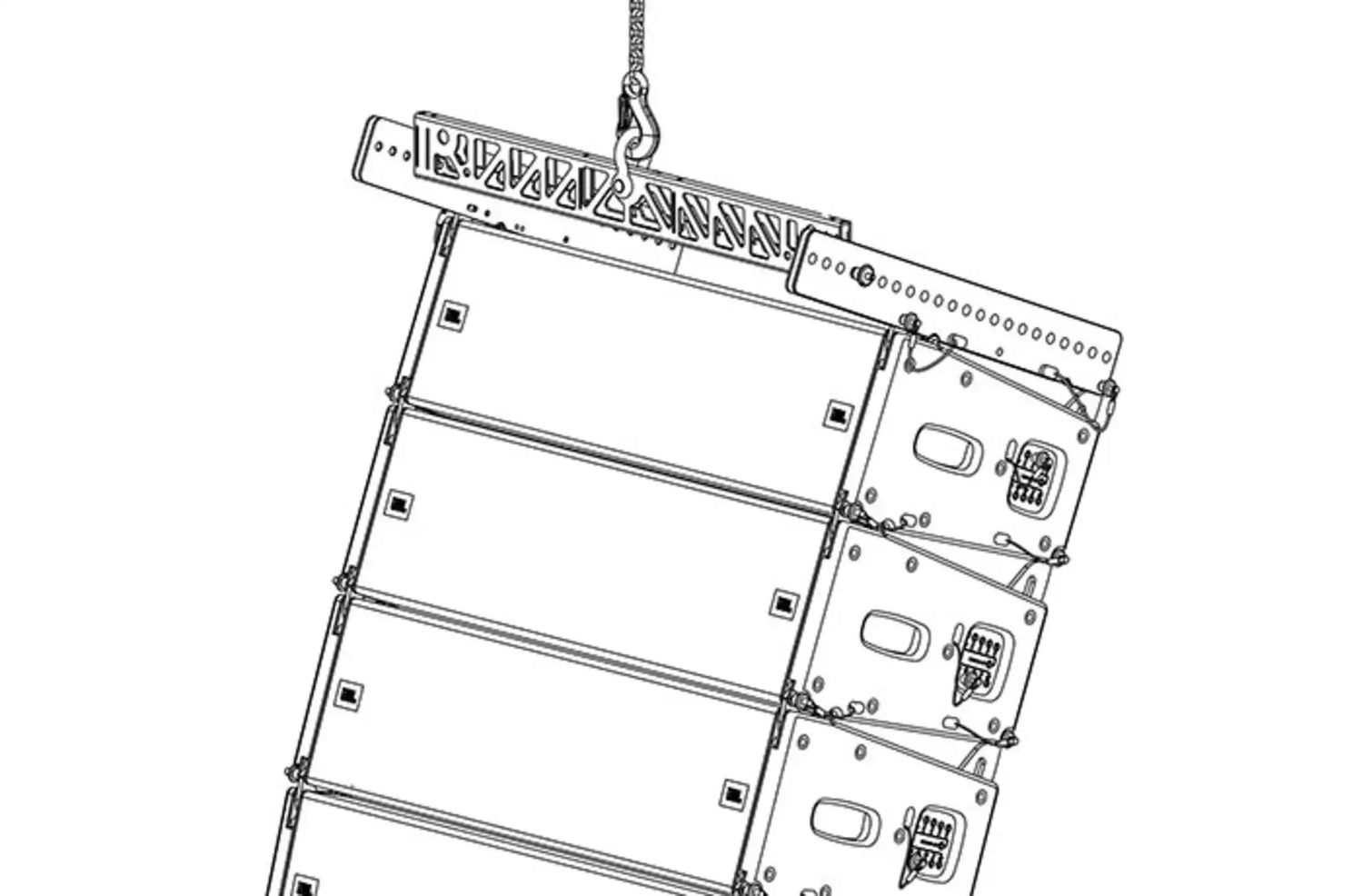

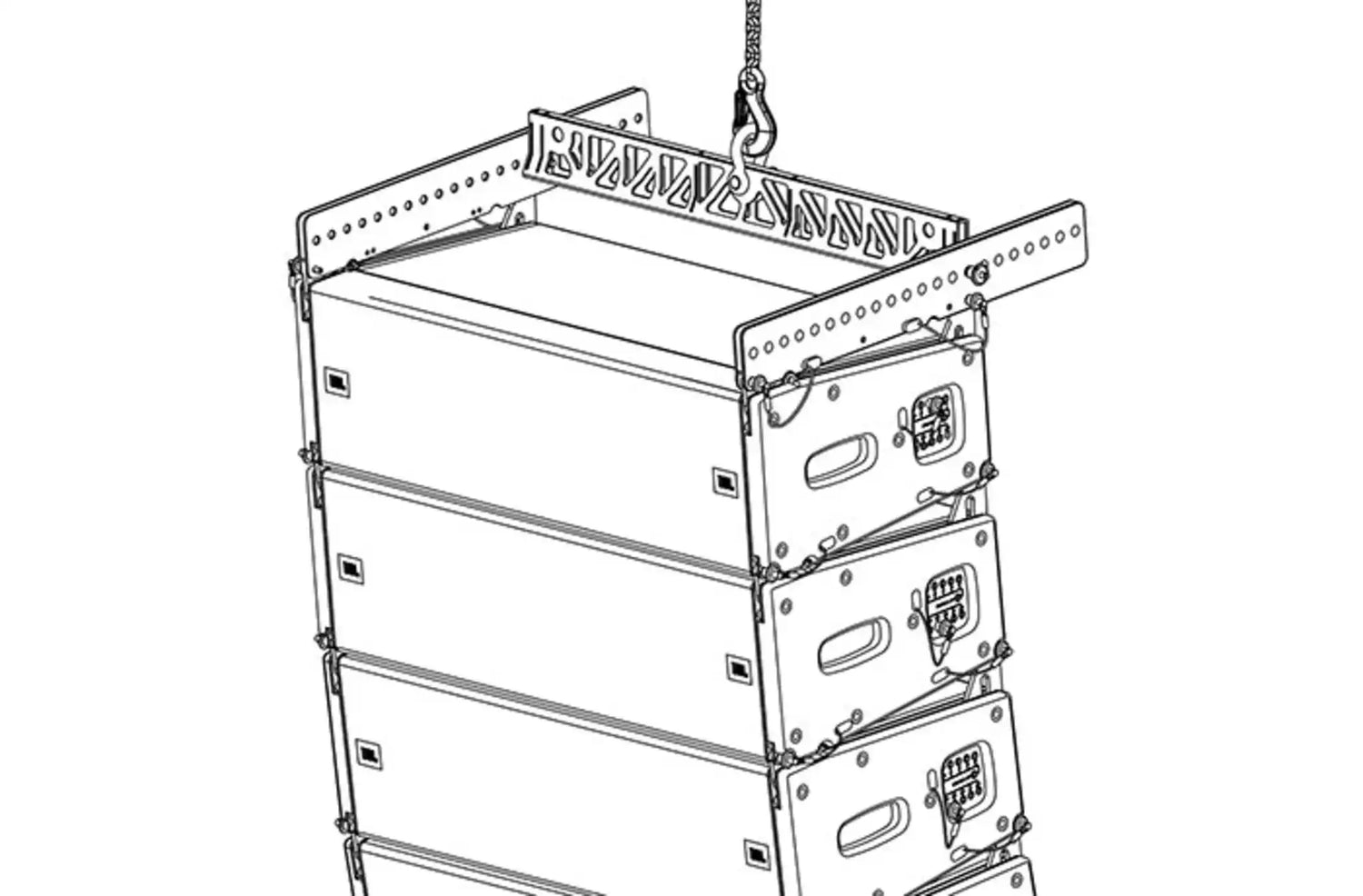

The VTX A8 MF supports both single-point and side-by-side suspension configurations, offering multiple options for deployment. In single-point setups, it can be paired with the VTX RC500 rotating clamp to allow secure suspension from standard trusses or pipes. For side-by-side applications, the frame is particularly useful for arrays hung from telescopic boom lifts, making it ideal for temporary or mobile installations.

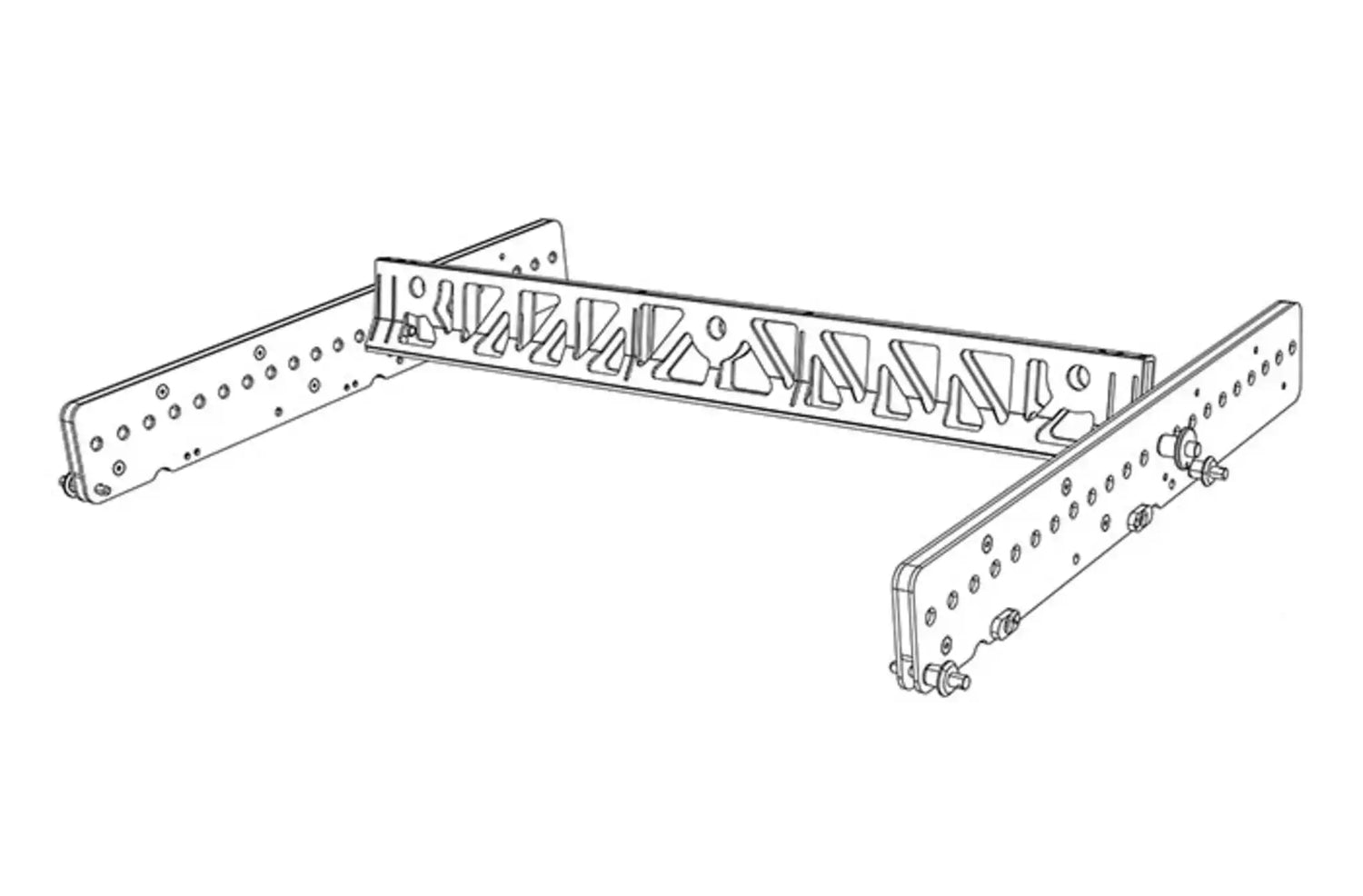

Its three-part collapsible design, consisting of two sidearms and a spreader bar, allows for efficient transport and storage. The spreader bar connects to the sidearms and can be pinned to one of 22 available positions, providing precise 0.5-degree tilt resolution for accurate array aiming. When not in use, all three components collapse and pin together into a compact footprint.

With a safe working capacity of up to 10 VTX A8 enclosures or 4 VTX B18 subwoofers, the VTX A8 MF combines strength, simplicity, and portability. Each mini frame comes with two 1/2-inch shackles for secure rigging, ensuring it’s ready to integrate into professional sound reinforcement systems immediately.

Features:

• Compact and lightweight mini frame for JBL VTX A8 and B18

• Supports single-point and side-by-side suspension options

• Pairs with VTX RC500 clamp for single-point truss suspension

• 0.5° pick-point resolution for precise tilt adjustment

• Three-part collapsible design for easy storage and transport

• Holds up to 10 VTX A8 or 4 VTX B18 enclosures

• Includes two 1/2-inch shackles for secure installation

Specifications Table:
