JBL Professional VTX A8 AF EB – Extension Bar for JBL VTX A8 AF Array Frame
JBL Professional VTX A8 AF EB – Extension Bar for JBL VTX A8 AF Array Frame is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL Professional VTX A8 AF EB – Extension Bar for JBL VTX A8 AF Arr...

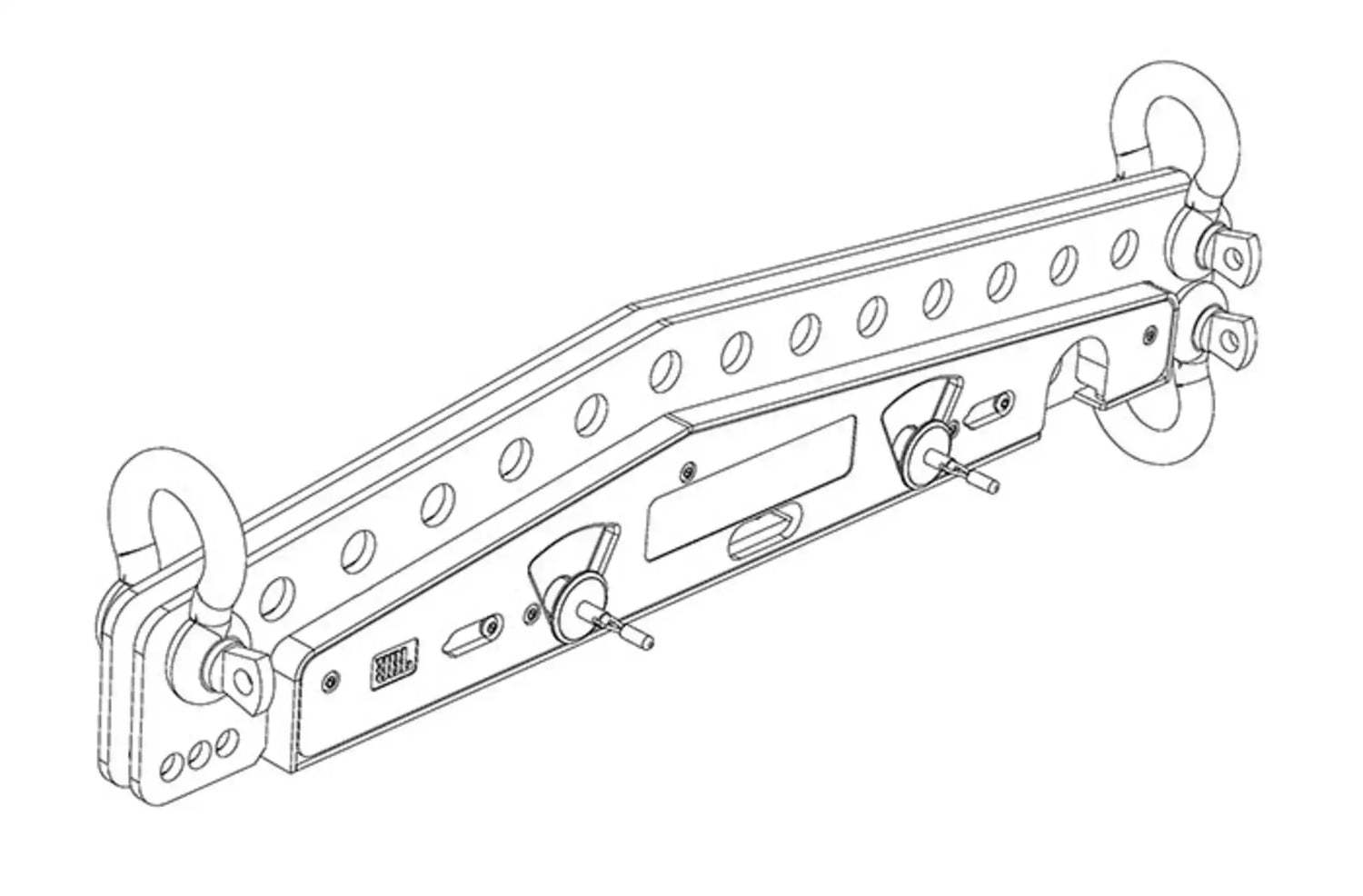

The JBL VTX A8 AF EB Extension Bar is a versatile rigging accessory designed to work with the VTX A8 AF array frame. Engineered for precision and flexibility, the extension bar enables multiple suspension methods, including single-point, front-to-back two-point, and side-by-side configurations. Its lightweight design, durable construction, and 0.5-degree pick-point resolution make it an essential tool for optimizing VTX A8 system deployment in a variety of venues.
The VTX A8 AF EB can extend forward or backward from the array frame to accommodate both up-tilt and down-tilt aiming options. Three mounting positions provide accurate control of shackle placement for single-point suspension. The bar is compatible with 5/8-inch shackles and can be neatly stored on top of the array frame during transport for convenience.

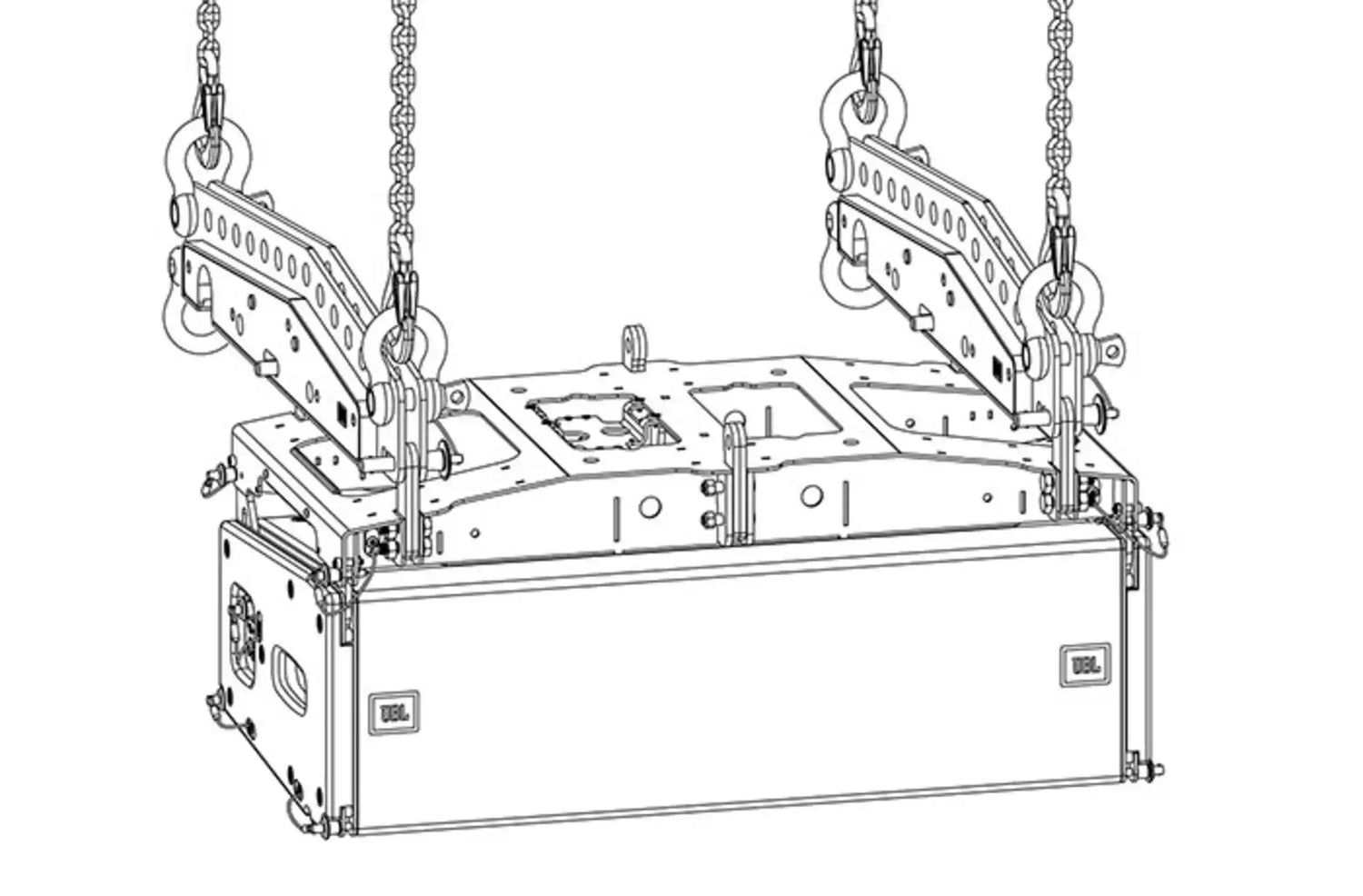

Each array frame includes one extension bar, but additional bars may be purchased separately for side-by-side suspension applications. For load conditions and configuration details, JBL’s LAC-III software should be used.
Features:
-
Designed for use with the JBL VTX A8 AF Array Frame
-

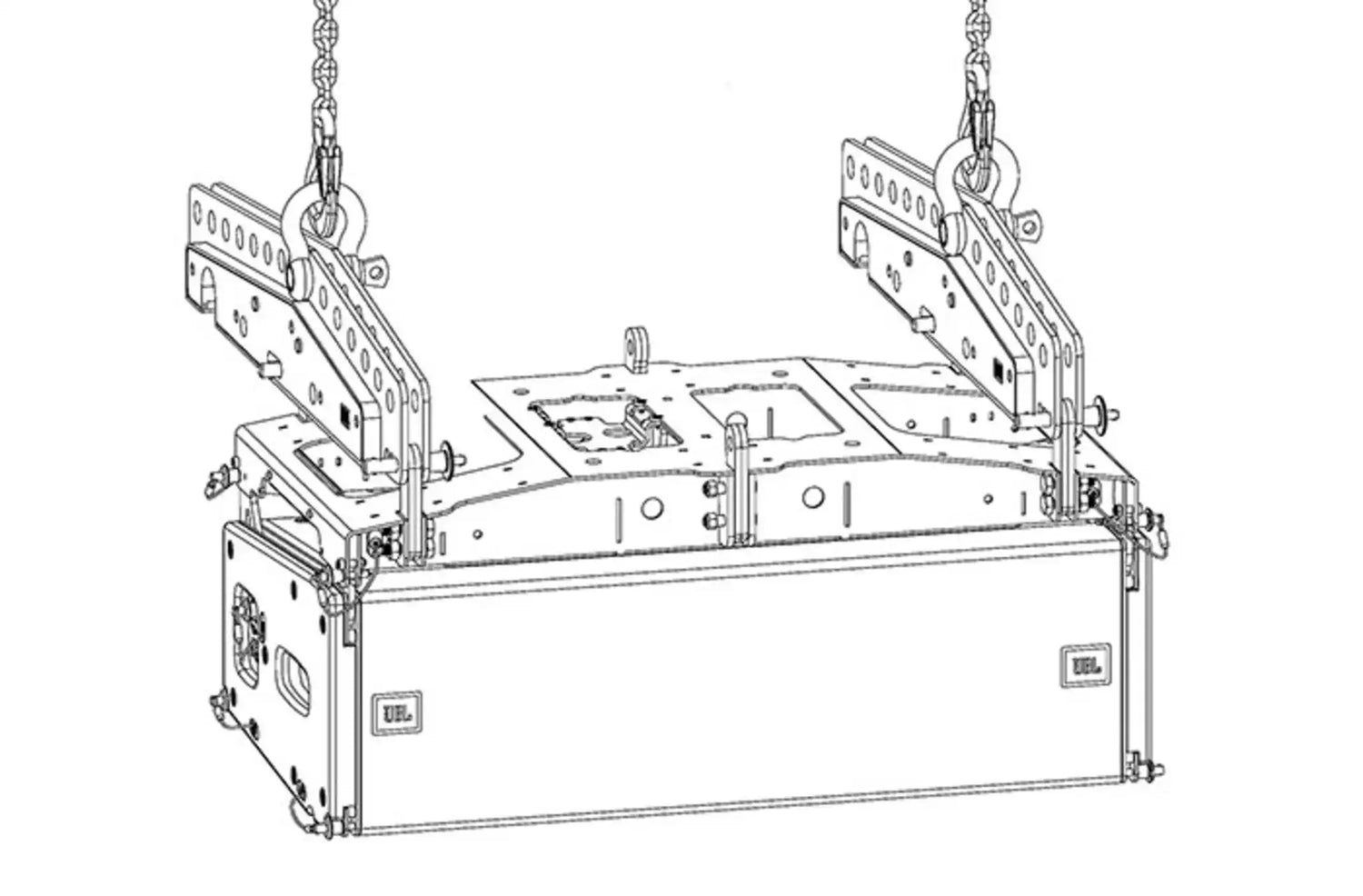

Supports single-point, front-to-back, and side-by-side suspension
-
Extends to front or rear for precise up-tilt or down-tilt adjustments
-
0.5° pick-point resolution for accurate aiming
-
Lightweight yet durable design
-
Compatible with 5/8-inch shackles
-

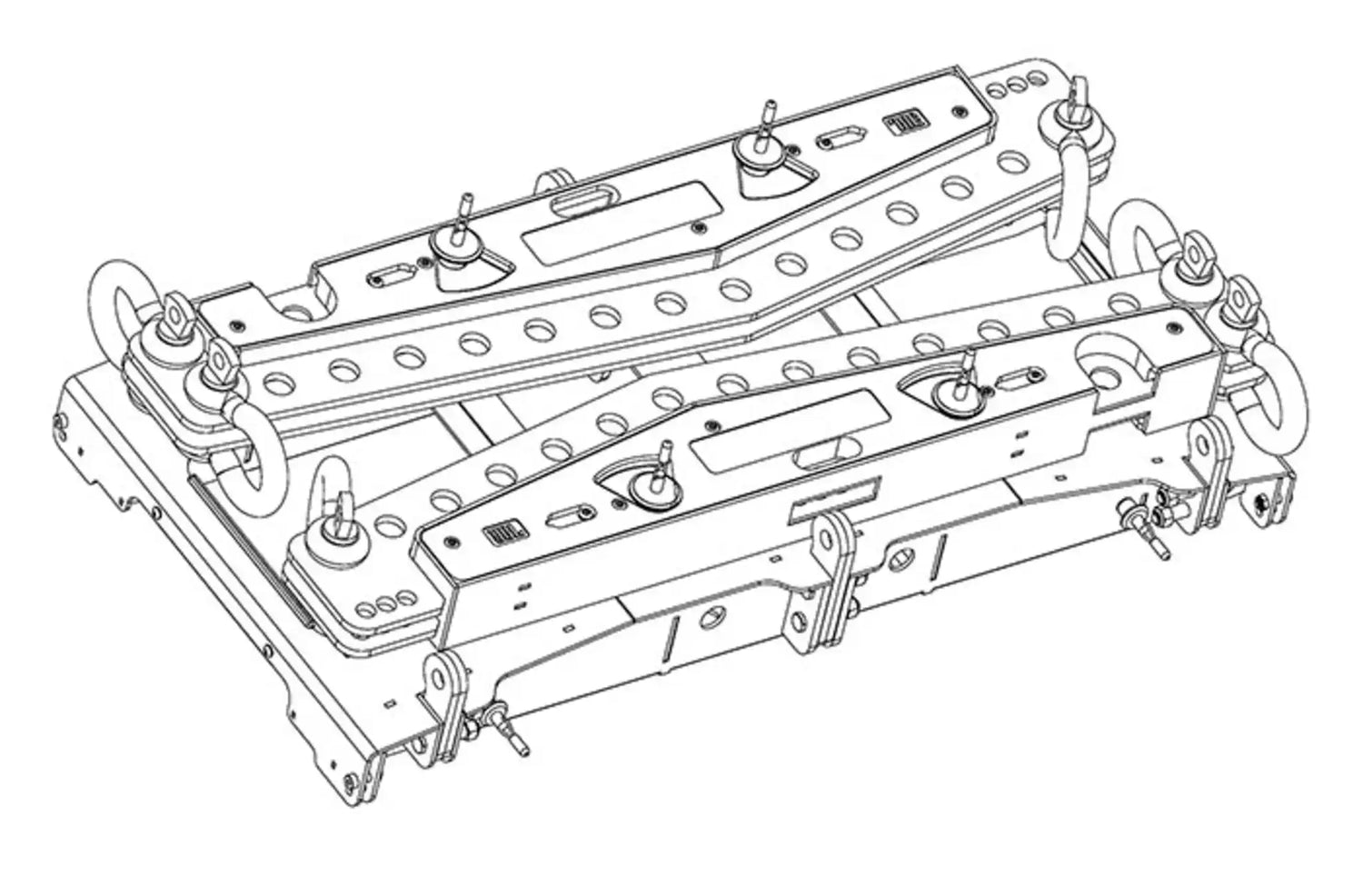

Stores on top of the array frame for easy transport
Specifications Table:
| Specification | Details |
|---|---|
| Compatibility | JBL VTX A8 AF Array Frame |
| Suspension Options | Single-point, front-to-back, side-by-side |
| Adjustment | 0.5° pick-point resolution |
| Shackle Size | 5/8 in |
| Storage | Mounts above frame during transport |
| Included | 1 × VTX A8 AF EB Extension Bar, 3 × 5/8 in Shackles, 4 × Attachment Brackets, 1 × Set of Screws, 8 × Pins, 8 × Nylock Nuts |
