JBL VTX A12 BP – Base Plate for Ground Stacking

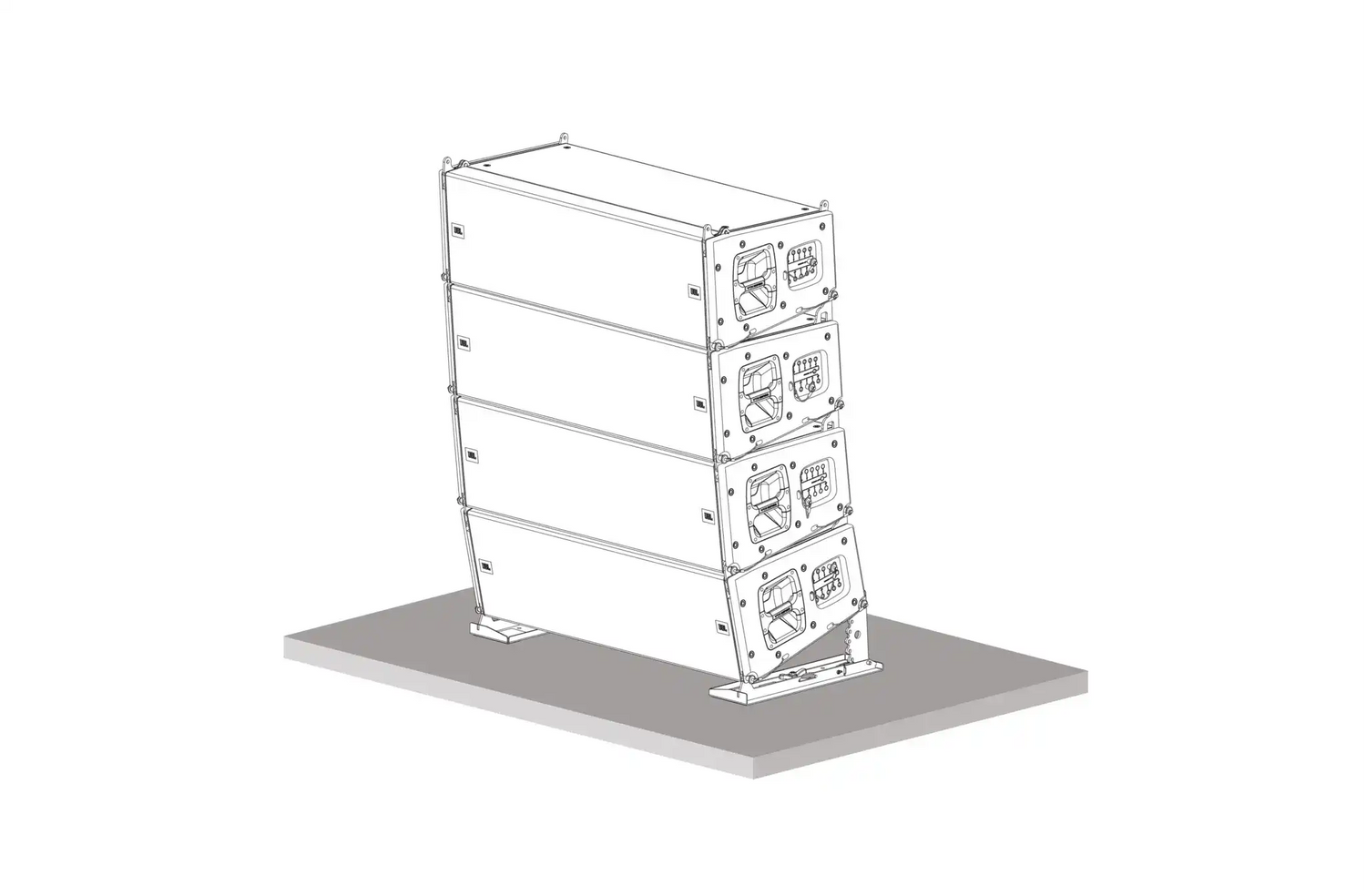

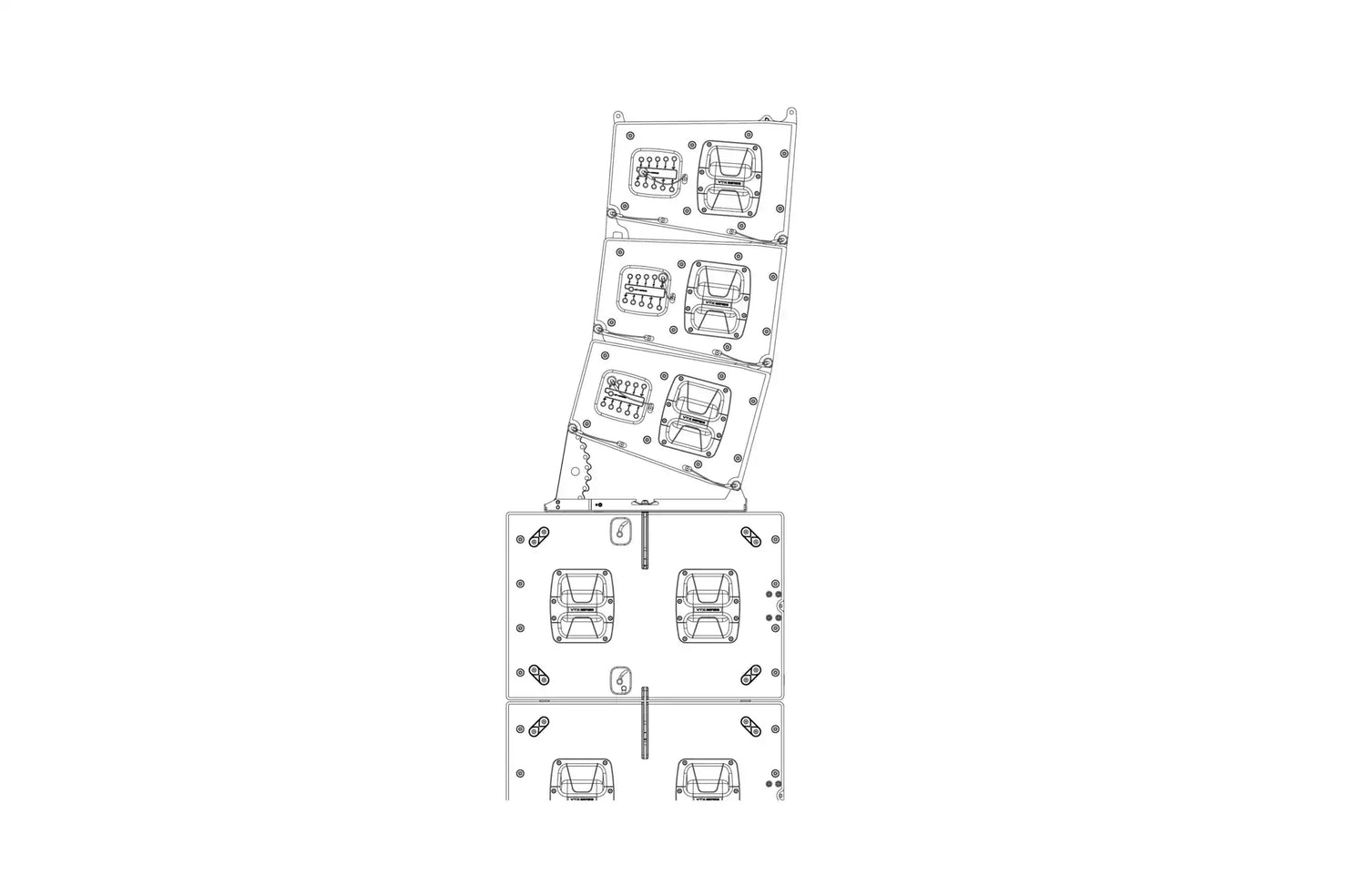

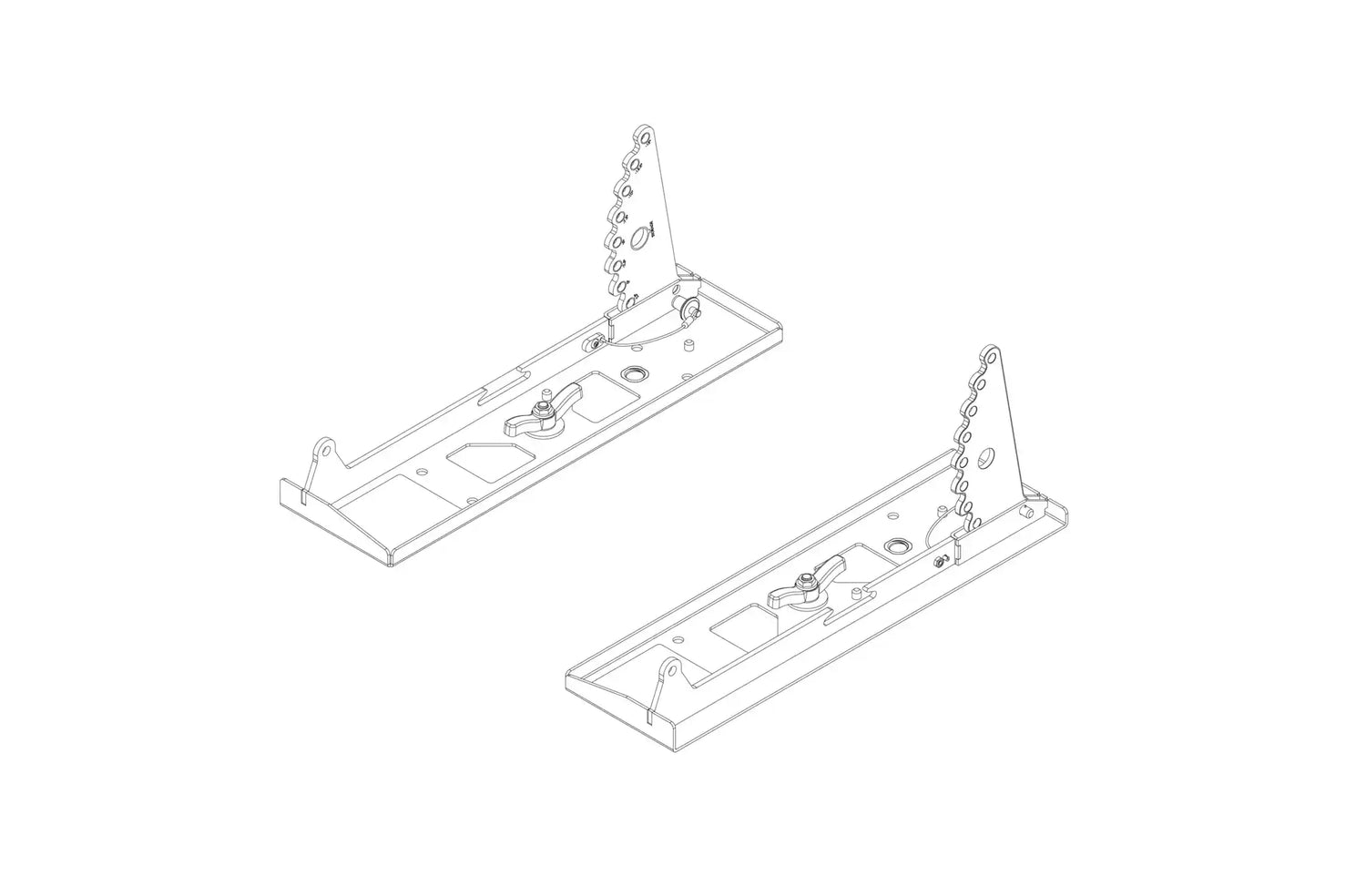

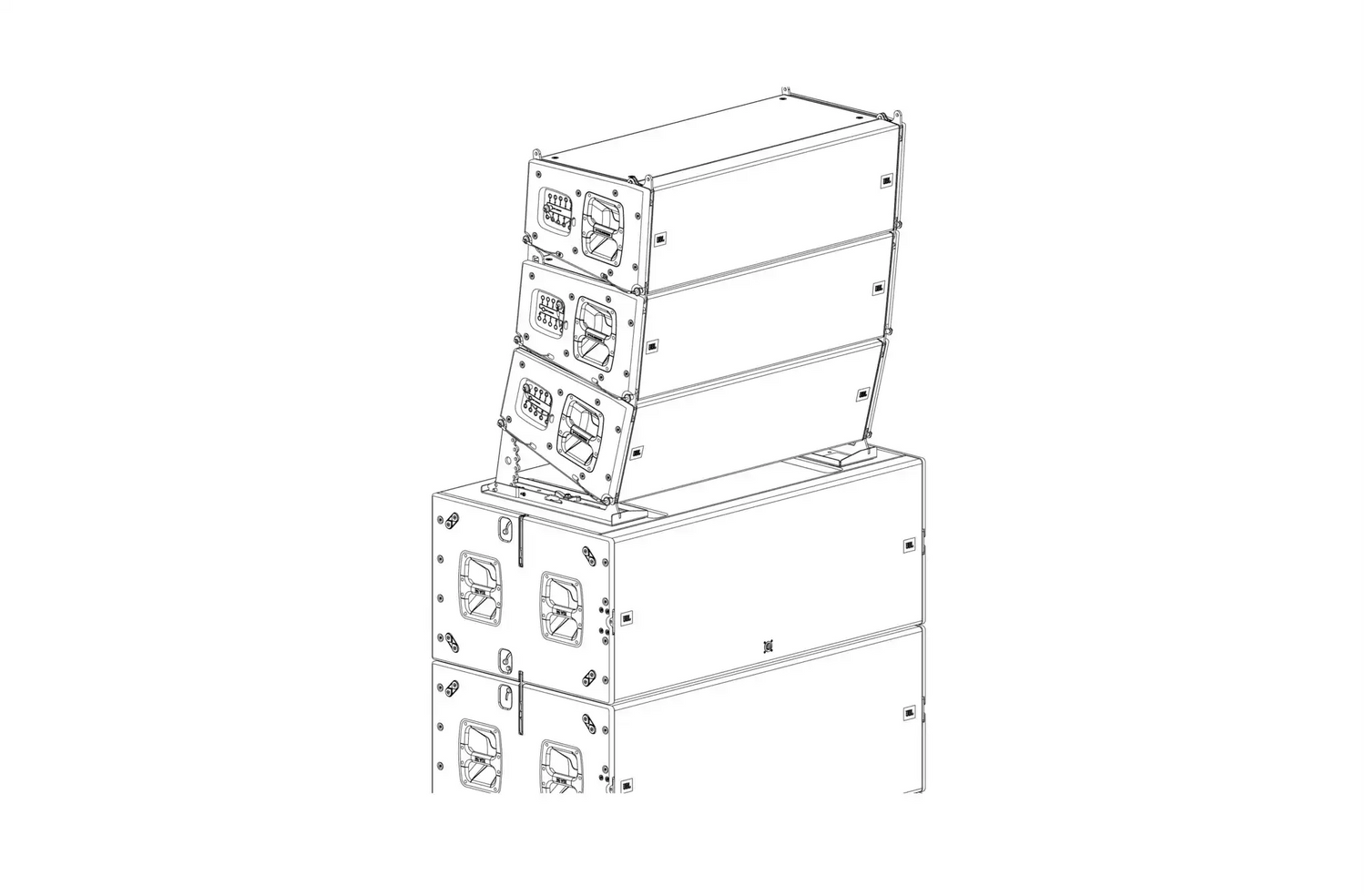

The JBL VTX A12 BP Base Plate is a rugged, lightweight adapter system that enables secure ground stacking of VTX A12 line array enclosures. Designed with flexibility in mind, the two-part base plate attaches directly to the top-mounted M20 threaded plates of the VTX B28 subwoofer or to other compatible support structures such as stages, scaffolding, or carts.
Featuring a rear angle selection bar, the A12 BP allows precise tilt adjustment from -15° to +5°, ensuring accurate coverage in ground-stacked configurations. When not paired with B28 subwoofers, the built-in M10 through-holes provide additional options for securely attaching arrays to alternative support structures.
Constructed from high-grade steel with a durable black powder-coat finish, the A12 BP combines strength with portability, weighing just 7.4 kg (16.3 lbs). JBL’s LAC-3 prediction software should always be used to verify load conditions and configurations for safe deployment.
Features:
-
Enables ground stacking of VTX A12 line arrays
-
Universal M20 threaded pole mount system
-
Attaches directly to VTX B28 subwoofer enclosure
-
Rear angle bar with -15° to +5° tilt adjustment
-
Two-part lightweight design for portability
-
M10 through-holes for permanent attachment to support structures
-
Durable steel construction with black powder-coat finish
Specifications Table:
| Specification | Details |
|---|---|
| Compatibility | JBL VTX A12, VTX B28 |
| Mount Type | M20 threaded pole mount |
| Tilt Range | -15° to +5° |
| Max Array Limit | 6 × VTX A12 |
| Safe Array Limit | 2 × VTX A12 |
| Construction | High-grade steel with anti-corrosion coating |
| Finish | Black powder coat |
| Dimensions (H × W × D) | 72 × 1106 × 547 mm (2.8 × 43.5 × 21.6 in) |
| Net Weight | 7.4 kg (16.3 lbs) |
| Included | (2) VTX A12 BP Base Plate (Left / Right) |
